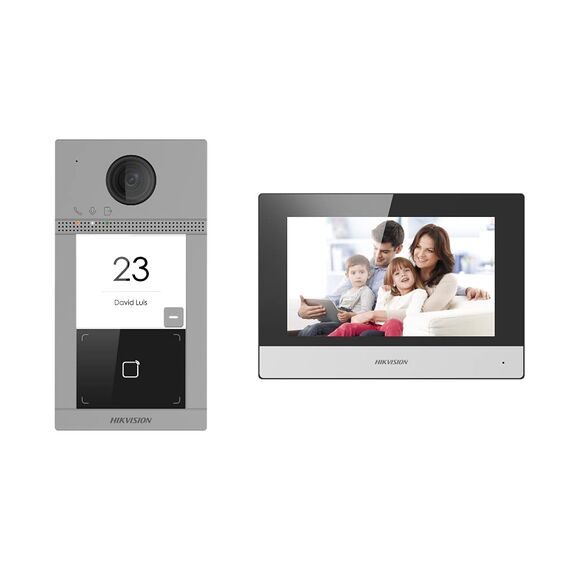

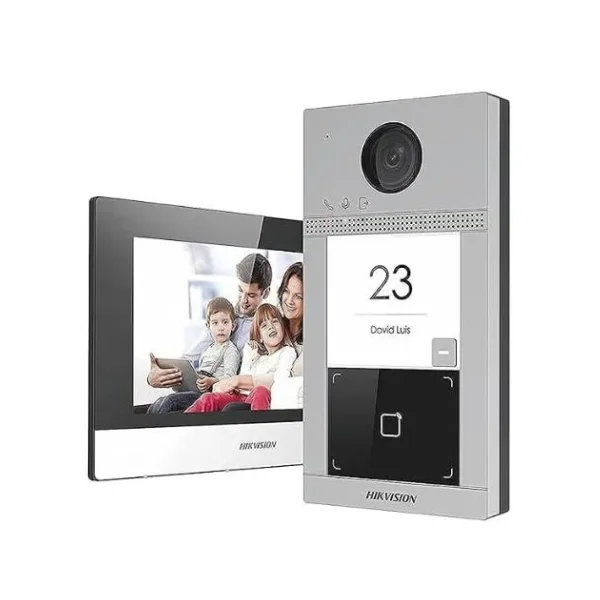

Hikvision DS-KIS604-P IP video Intercom kit
Hikvision DS-KIS604-P
IP video Intercom kit
Standard PoE
Noise suppression and echo cancellation
Configuration remotely via Web
Stores messages and captured pictures in the TF card
Remote unlocking via the client software or the mobile client
Operation System
Embedded Linux operation system
Operation Mode
Single-button
Flash
32 M
RAM
256 M
Door Station/Video Parameters
Camera
2MP HD camera
Night Vision
Low illumination IR supplement mode:3 m
Backlight Compensation
Support
Digital Noise Reduction
Support
WDR
True WDR
Field Of View
Horizontal: 129° Vertical: 75°
Video Compression Standard
H.264
Stream
Main stream: 1080p@30fps, 720p@25fps
Sub stream: D1@25fps
Motion Detection
Support
Flash-Avoid Frequency
50 Hz, 60 Hz
Door Station/Audio Parameters
Audio Input
Built-in omnidirectional microphone
Audio Output
Built-in loudspeaker
Audio Quality
Noise suppression and echo cancellation
Audio Compression Standard
G.711 U
Audio Compression Rate
64 Kbps
Audio Intercom
Two-way audio communication
Door Station/Network Parameters
Network Protocol
TCP/IP, RSTP
Wired Network
10/100 Mbps Ethernet
Door Station/Device Interfaces
RS-485
1
Alarm Input
4
Debugging Port
1
Grounding
1
TAMPER Switch
1
Door Station/General
Power Consumption
＜ 10 W
Working Temperature
-40° C to 53° C(-40° F to 127.4° F)
Working Humidity
10% to 95%
Dimension
174 mm × 91 mm × 29 mm
Installation
Surface mounting/ Flush mounting
Protection Level
IP65, IK08
Indicator
3
Power Supply
IEEE802.3af, standard PoE
12 VDC
Indoor Station/System Parameters
Operation System
Embedded Linux operation system
Memory
128 MB
Flash
32 MB

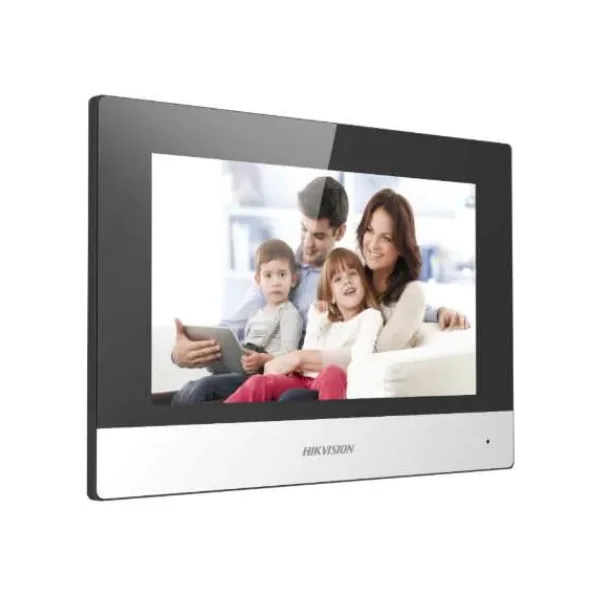

Indoor Station/Display Parameters
Display Screen
7-inch colorful TFT screen
Display Resolution
1024 × 600
Operation Method
Capacitive touch screen
Indoor Station/Audio Parameters
Audio Input
Built-in omnidirectional microphone
Audio Output
Built-in loudspeaker
Audio Quality
Noise suppression and echo cancellation
Audio Compression Standard
G.711 U
Audio Compression Rate
64 Kbps
Indoor Station/Network Parameters
Wired Network
10/100 Mbps self-adaptive
Wireless Network
Wi-Fi 802.11 b/g/n
Protocol
TCP/IP, SIP, RTSP
Network Interface
1 RJ-45 10/100 Mbps self-adaptive
Indoor Station/Device Interfaces
RS-485
1
Alarm Input
8-ch alarm inputs
Relay Output
2
TF Card
Max to 32 G, SD 2.0 or lower version
Indoor Station/General
Power Consumption
≤ 6 W
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (L X W X H)
200 mm × 140 mm × 15.1 mm (7.9" ×
5.5 × 0.6\")
