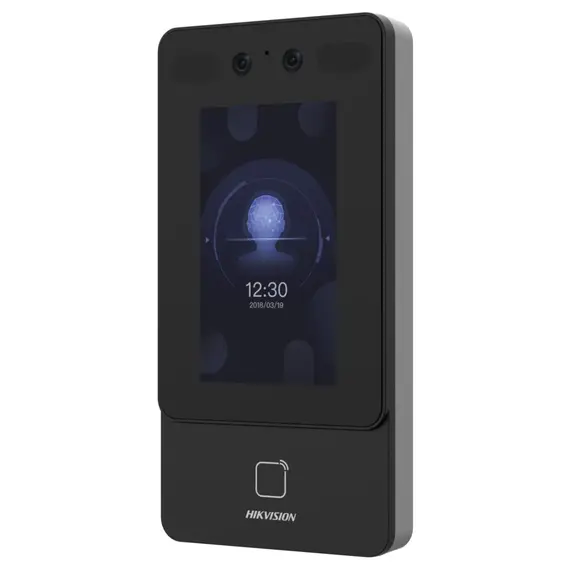

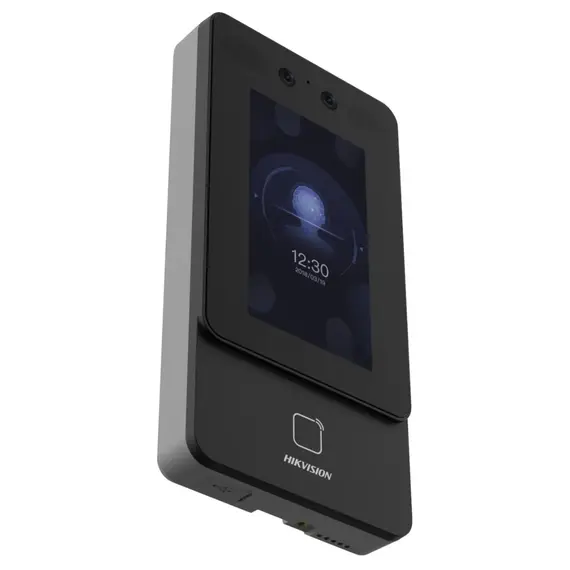

Hikvision DS-K1T342MX-E1

Face Recognition Terminal

The Hikvision DS-K1T342MX-E1 Face Recognition Terminal is designed to provide efficient and secure access control. It can store up to 1,500 faces and 3,000 cards, making it ideal for medium to large facilities. The terminal features a 2-megapixel wide-angle lens and a 4.3-inch LCD touch screen for clear and easy operation. With advanced face recognition technology, it ensures high accuracy (≥99%) and quick recognition times (less than 0.2 seconds per user), even when users are wearing masks. The recognition distance ranges from 0.3 to 1.5 meters, ensuring flexibility in different installation environments.

Advanced Networking and Integration

This hikvision access control supports various networking standards and protocols, including TCP/IP, ISAPI, and ISUP5.0. It is equipped with a 10/100 Mbps self-adaptive wired network interface, ensuring robust and reliable communication. The device can be configured via a web client, enhancing ease of use and integration with existing security systems. Additionally, it supports two-way audio communication with client software, indoor stations, and main stations, making it versatile for different application scenarios.

Robust and Flexible Power Supply

The Hikvision DS-K1T342MX-E1 is powered by standard PoE (IEEE802.3at), allowing for both power and data transmission over a single cable. This simplifies installation and reduces the need for additional wiring. When powered by PoE, the terminal can also supply power to a connected door lock (12 VDC/1 A), further streamlining the setup. Alternatively, it can be powered through a power adapter (12 VDC/1 A), providing flexibility depending on the installation environment.

Enhanced Security and Reliability

This hikvision access control is built to withstand harsh conditions, with an IP65 rating for dust and water resistance, making it suitable for both indoor and outdoor use. It operates efficiently in temperatures ranging from -30°C to 60°C and humidity levels up to 90% without condensing. The device includes multiple interfaces such as RS-485, Wiegand, lock output, exit button, door contact input, tamper, and USB, ensuring comprehensive connectivity options for various security needs.

User-Friendly Interface and Operation

The 4.3-inch capacitive touch screen provides a user-friendly interface for both administrators and users. The hikvision access control supports multiple languages including English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese, Korean, making it accessible for a diverse user base. Audio prompts and time synchronization features further enhance the user experience by providing clear feedback and ensuring accurate timekeeping across all connected devices.

Extensive Event and Data Management

With a substantial event capacity of 150,000, the Hikvision DS-K1T342MX-E1 can log and store extensive access records, facilitating detailed monitoring and analysis. It supports M1 cards with a reading frequency of 13.56 MHz, ensuring compatibility with widely used access cards. The built-in face anti-spoofing technology enhances security by preventing unauthorized access through fake faces, ensuring that only genuine users are granted entry.
