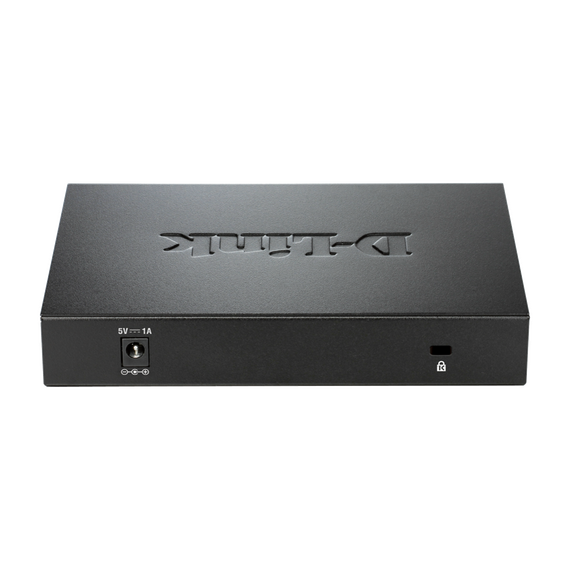

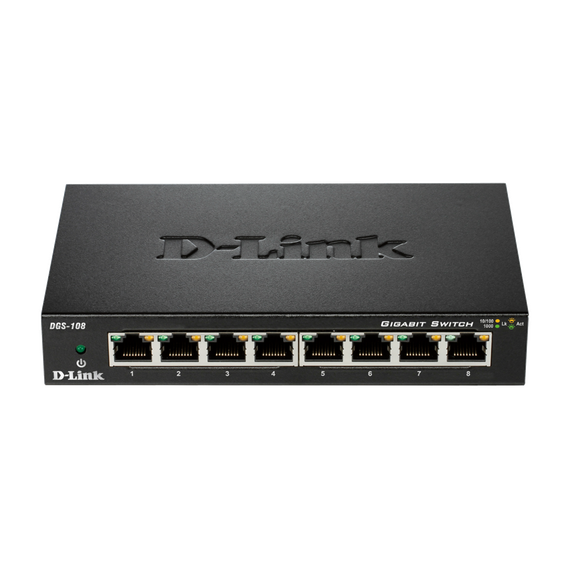

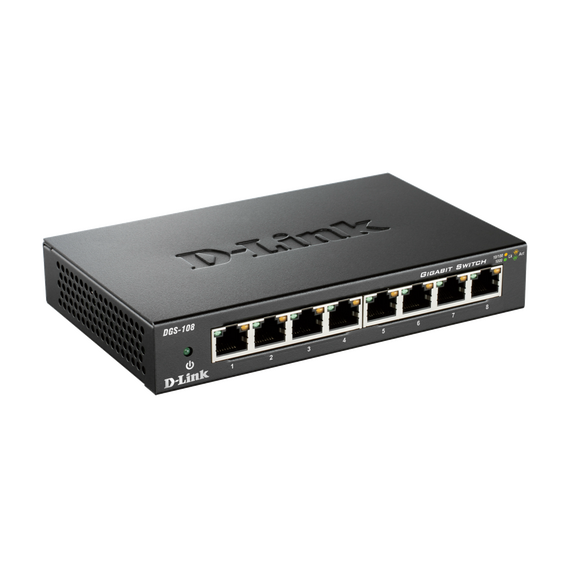

D-LINK 8 Port Gigabit Unmanaged Desktop Switch / DGS-1008D

Advanced Features

• Green Ethernet
• 16 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Supports 9,720 Byte Jumbo Frames
• Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
• Supports Cable Diagnostics Function

Standards

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

• CSMA/CD

Data Transfer Rates

• Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
• Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)
• Gigabit Ethernet:
  • 2000 Mbps (full duplex)

Transmission Method

• Store-and-forward

MAC Address Table

• 4 K

MAC Address Learning

• Automatic Update

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

• 128 KB per device

Physical

LED Indicators

• Per port: Link/Activity/Speed
• Per device: Power

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports-

Dimensions

• 138 x 85 x 34 mm

Weight

• 330 grams (0.73 lbs)

Power

• 5 V/1 A Power Adapter

Power Consumption

• Power On (Standby): DC input: 0.59 watts, AC input: 1.5 watts
• Maximum: DC input: 3.48 watts, AC input: 5.3 watts

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -10 to 70 °C (14 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing

MTBF

• 522,270 hours

Certifications

• CE class B, FCC class B, ICES-003 Class B, VCCI class B, C-Tick, cUL, CB, LVD
