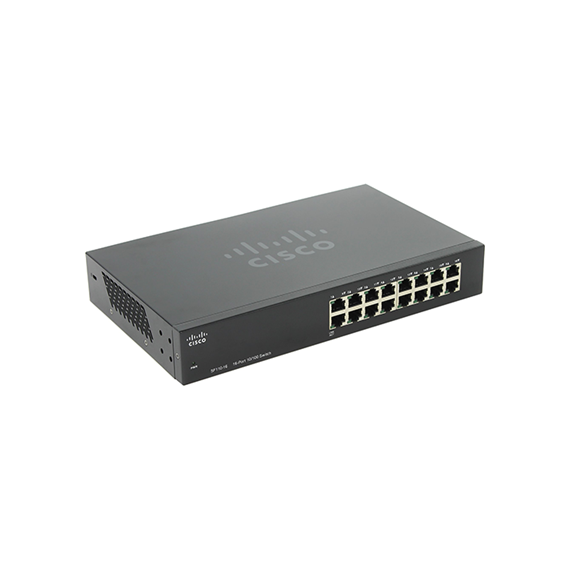

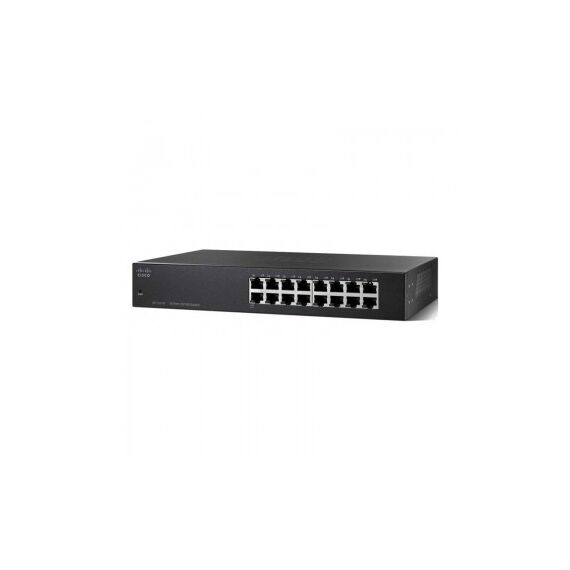

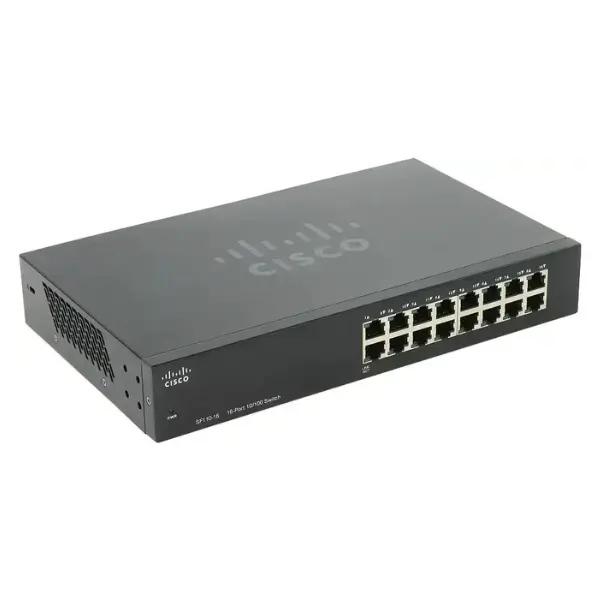

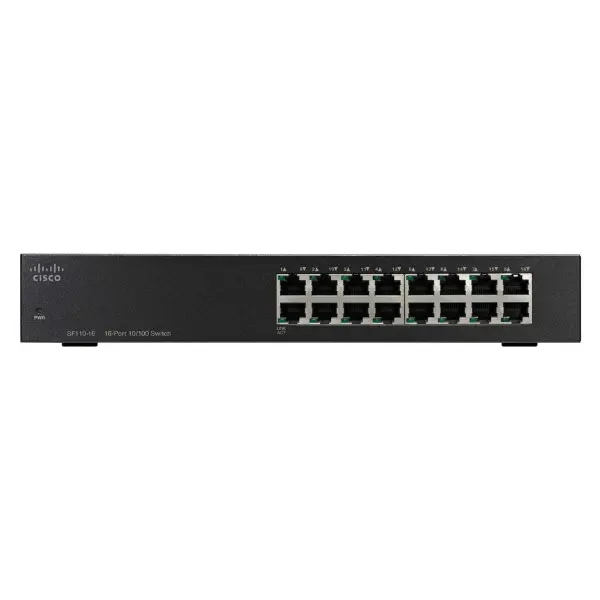

Cisco Switch 16 Port 10/100 Rackmount Switch / SF110-16
Please sign in so that we can notify you about a reply
Brand:
Cisco
Switch Specification
Switch Type
Unmanaged
Placement Options
Rackmount
Ports
16-18
Power
non- PoE
Cisco Switch 16 Port 10/100 Rackmount Switch / SF110-16
Key Features
- Sixteen (16) 10/100 fast Ethernet ports with automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto negotiated port for connecting.
- Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link.
- Compact, robust desktop form factor that offers a wall-mount option for discreet mounting under a desk or on the wall.
- Rackmount 1U form factor that offers a data cabinet or wall-mount cabinet option for integration in to an existing network.
- Includes cable diagnostics and loop detection.
- Includes advanced Cisco traffic-handling features to keep your applications running at peak performance.
- Integrated QoS intelligence on the switch automatically prioritises delay-sensitive services such as voice or video.
- Works right out of the box, with no software to install and nothing to configure.
Specifications
| General | |
| Device type | Switch - 16 ports - unmanaged |
| Enclosure type | Desktop, rack-mountable |
| Ports | 16 x 10/100 |
| Power over Ethernet (PoE) | N/A |
| Performance | Switching capacity: 3.2 Gbps ¦ Forwarding performance (64-byte packet size) : 2.4 Mpps |
| MAC address table size | 8000 entries |
| Jumbo frame support | N/A |
| Features | Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet |
| Compliant standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x |
| Status indicators | Power, link/activity, cable diagnostics, loop detection |
| Expansion and Connectivity | |
| Interfaces | 16 x 10Base-T/100Base-TX - RJ-45 |
| Power | |
| Power device | Power supply - internal |
| Voltage required | 100-240V AC/50-60 Hz universal input |
| Electric current required | N/A |
| Miscellaneous | |
| Width | 11 in |
| Depth | 6.7 in |
| Height | 1.7 in |
| Weight | 2.8 lbs |
| Fanless | Yes |
| Compliant standards | UL 60950, FCC CFR47 Part 15, CSA 22.2 |
| Localization | Chinese (simplified), German, French, Italian, Spanish, Japanese |
| Software/System Requirements | |
| OS required | N/A |
| Manufacturer Warranty | |
| Service and support | Limited lifetime warranty |
| Service and support details | Limited warranty - replacement - lifetime ¦ Limited warranty - power supply and fans - 1 year ¦ Technical support - phone consulting - 1 year |
| Environmental Parameters | |
| Min operating temperature | 32 °F |
| Max operating temperature | 104 °F |
| Humidity range operating | 10 - 90% (non-condensing) |
| Min storage temperature | -4 °F |
| Max storage temperature | 158 °F |
| Humidity range storage | 10 - 90% (non-condensing) |
