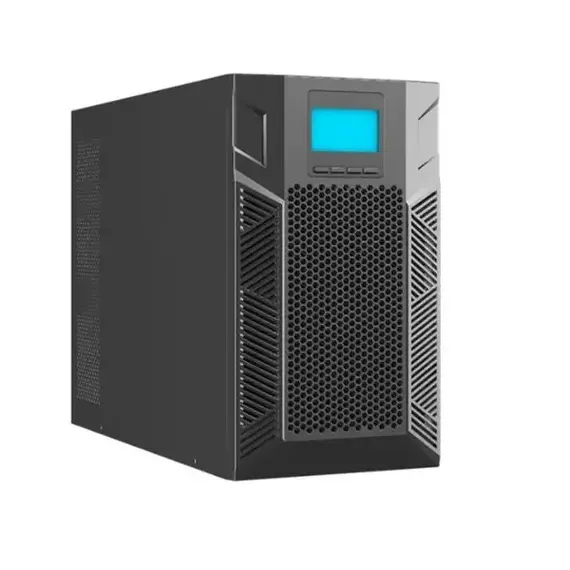

Kstar MP 10k S On-Line UPS, 10000VA/9000W, Tower, 1Ph

Kstar MP 10k S On-Line UPS - Description

10000VA/9000W, Tower, 1Ph

Outstanding Power Capacity and Efficiency:

Kstar MP 10k S On-Line UPS delivers a robust capacity of 10000VA/9000W, ensuring reliable power for critical equipment. With an impressive efficiency of up to 93.5%, it reduces energy consumption while maintaining peak performance. Its wide input voltage range (110–286V) and power factor of ≥0.99 make it compatible with unstable power sources, including generators, for seamless operation.

Advanced Input and Output Capabilities:

Designed for precision, the UPS provides selectable output voltages (208/220/230/240V) with tight ±1% regulation. It supports both linear and non-linear loads with minimal harmonic distortion (≤2% and ≤5%, respectively), ensuring clean, pure sine wave output. The zero transfer time between AC and battery mode makes it ideal for sensitive equipment, while the inverter-to-bypass transfer time is just 5ms.

Superior Battery Performance and Quick Recharging:

Equipped with 240VDC battery voltage and a 9Ah/12V capacity (7Ah/12V optional), this UPS is designed for extended runtime. The intelligent charging system restores battery capacity to 90% within 6–8 hours, supporting a maximum charging current of 8A for long-run units. With its settable battery configuration of 20pcs, this device provides flexibility and optimized performance for diverse applications.

User-Friendly Indicators and Alarms:

Kstar MP 10k S features an LED and LCD display for real-time monitoring. The LCD shows key parameters such as input/output voltage, frequency, load percentage, battery voltage, temperature, and estimated backup time. Alarm systems provide audible notifications for battery mode, low battery, overload, and faults, ensuring immediate user awareness of system conditions.

Compact, Durable, and Environmentally Adaptive Design:

Built with a tower design and optional wheels, the UPS is compact, measuring 191×460×337mm (standard) or 191×460×720mm (with wheels), and weighing 71kg. Operating efficiently in temperatures between 0°C and 40°C, it supports humidity levels of 20–95% and altitudes below 1500m, making it ideal for diverse environments. Its noise level of <58dB ensures quiet operation in sensitive spaces.

Comprehensive Safety and Communication Features:

Certified under IEC/EN safety and EMC standards, the UPS offers robust protection against short circuits, overloads, overheating, and battery faults. Communication interfaces such as RS232, USB, and optional SNMP or relay cards ensure seamless integration with IT systems. Intelligent fan speed regulation and an optional maintenance switch enhance reliability and ease of maintenance.

Energy-Saving ECO Mode and Smart Features:

The Kstar MP 10k S includes an ECO mode for energy savings and cold-start functionality for uninterrupted performance during outages. Self-testing upon startup ensures operational reliability. Designed for modern needs, this UPS offers optimal power backup and protection for businesses seeking efficiency and security in their operations.
