TP-Link LS1005G 5-Port 10/100/1000Mbps Desktop Switch

Write a review
12-12-2020-AZ
450 EGP
Out of stock
Reward points: 225 points
Add to Wishlist Ask a question
Get a Quote for your company
Call Us
Chat Us With Whatsapp
Delivery
Payment options
Brand :
TP-Link
Model :
LS1005G
Switch Specification
Placement Options
Desktop
Ports
5-8
Power
non- PoE
Find similar

TP-Link LS1005G

TP-Link LS1005G 5-Port 10/100/1000Mbps Desktop Switch

5 ports 10/100 / 1000MBos RJ45 Auto-negotiation, auto-MDI / MDX support
Green Ethernet technology saves energy
The IEEE 802.3X flow controller ensures reliable data transmission
Plastic film, desktop or wallpaper design
Pin and play, no configuration required
The fan design ensures a smooth operation


Let LiteWave Bring You Lighter Network Life:

TP-Link LiteWave Series Unmanaged Switches are an easy and affordable way to expand your network. It is easy and safe to use. With these plug-in and play adapters you can expand your network connections to multiple devices at the same time.

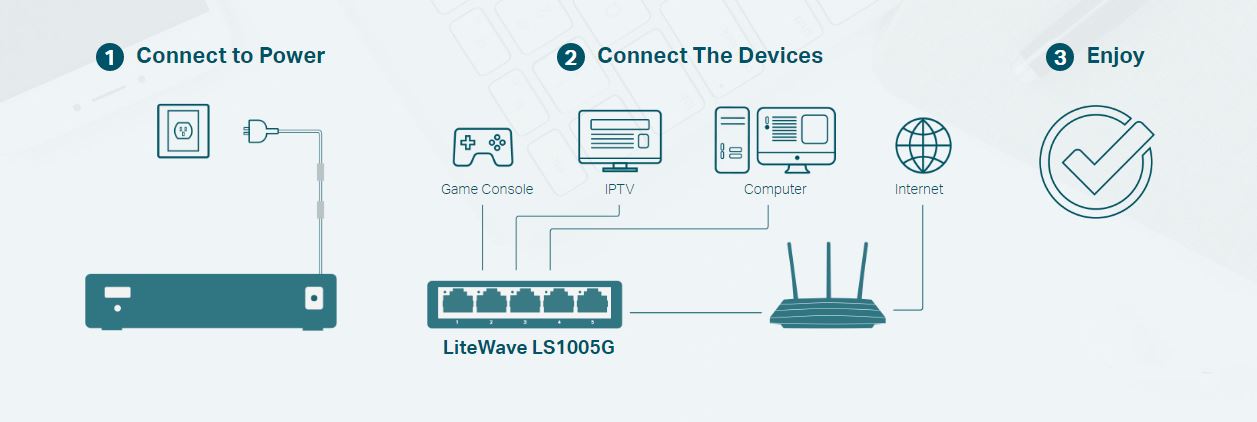

Plug and Play:

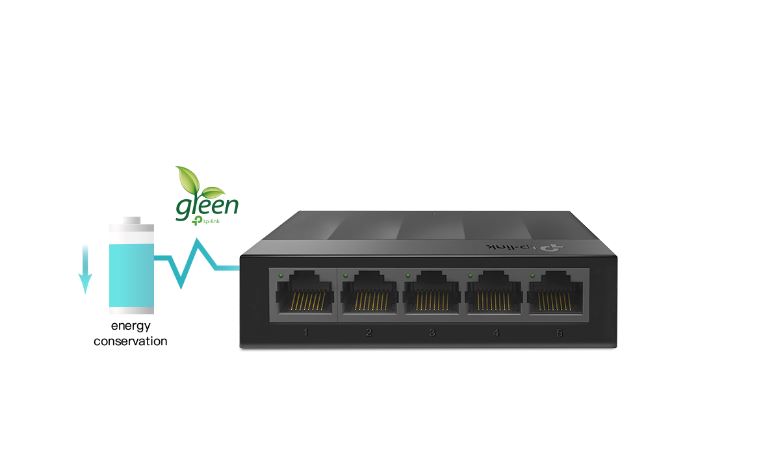

Go Green with Your Ethernet:

The LiteWave series supports energy-saving technologies that help you save energy and money. The power consumption is automatically adjusted according to the connection status and cable length, which allows you to expand your network and reduce your carbon footprint. Save the planet and reduce your energy costs, everyone is a winner!

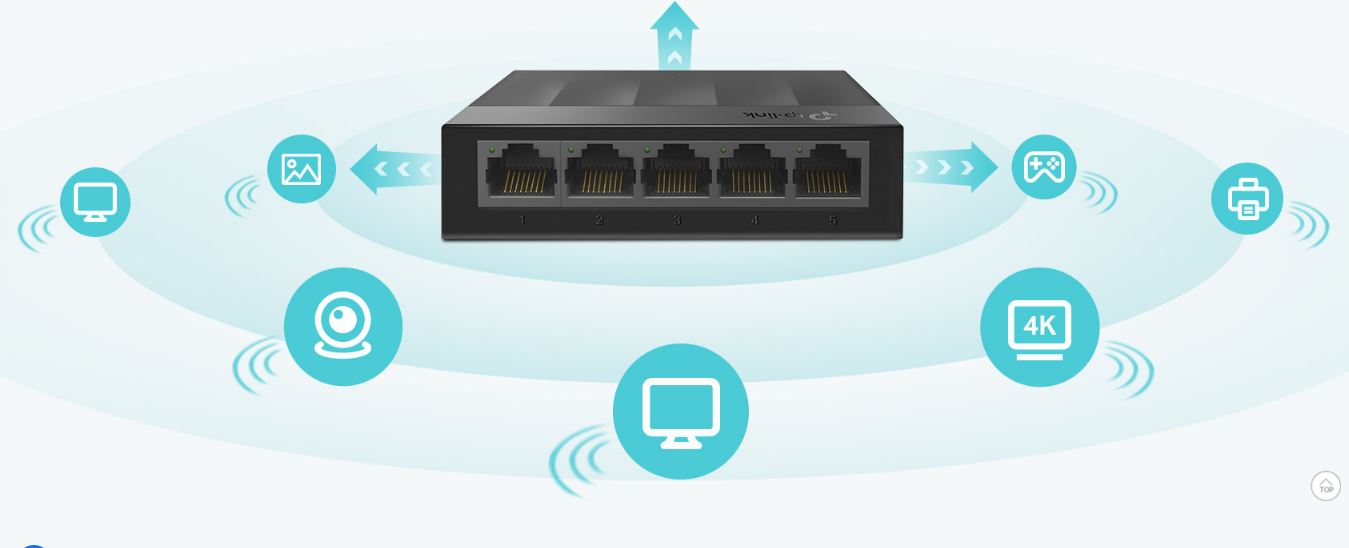

Gigabit Ports For More Reliable Speeds:

Improve the reliability of devices connected to the LS1005G 5-port Gigabit Desktop Switch. Unrestricted 5 10/100 / 1000Mbps ports allow you to transfer large bandwidth files instantly without any interference.


Use Where You Need, However You Need:

The LS1005G is fully compatible with network devices such as computers, printers, webcams and IPTV. It has a wide range of applications and is ideal for communicating in school dormitories, monitoring, home and small business.


Specifications:

HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 5VDC/0.6A)
Dimensions ( W x D x H )90 × 72 × 23 mm
Max Power Consumption3.7W
Max Heat Dissipation12.6 BTU/h
PERFORMANCE
Switching Capacity10 Gbps
Packet Forwarding Rate7.4 Mpps
MAC Address Table2K
Packet Buffer Memory1.5 Mb
Jumbo Frame16 KB
SOFTWARE FEATURES
Advanced FeaturesGreen Technology
802.3X Flow Control Back Pressure
Transfer MethodStore and Forward
OTHERS
CertificationFCC, RoHS
Package Contents5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

LS1005G datasheet (LS1005G_Datasheet.pdf, 996 Kb) [Download]
