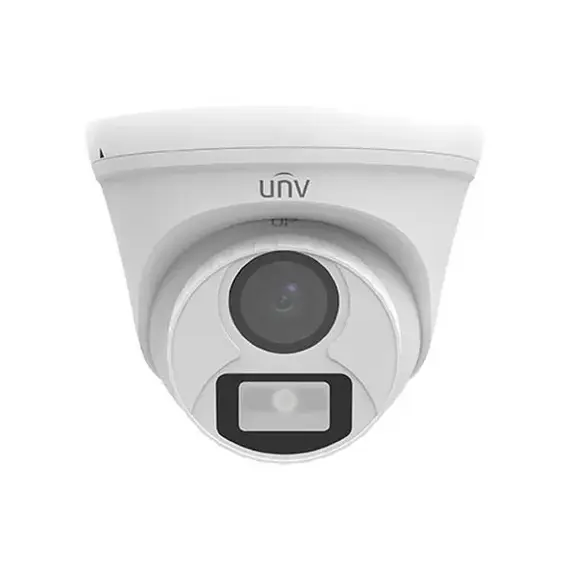

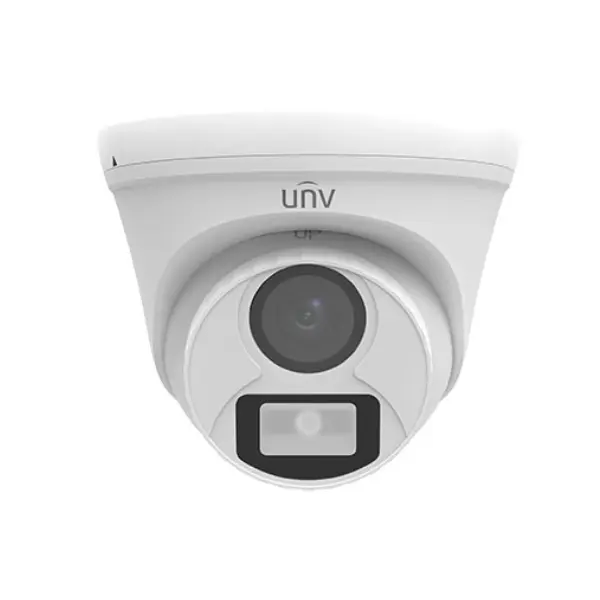

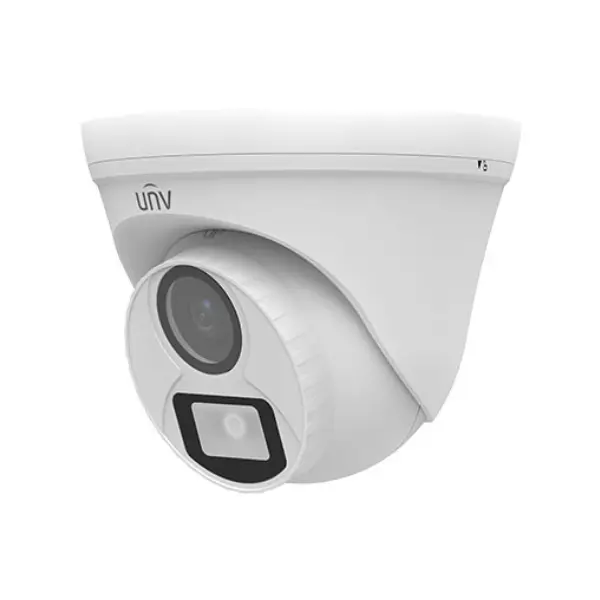

UNV UAC-T115-F28-W 2.8mm 5MP ColourHunter Fixed Turret Analog Camera

​UNV UAC-T115-F28-W
UNV UAC-T115-F28-W 2.8mm 5MP ColourHunter Fixed Turret Analog Camera
‍950‍ EGP
UAC-T115-F28-W
+
  • Brand: UNV
  • Model: UAC-T115-F28-W
  • Size: 1/2.7"
  • Pixel: 5MP
  • Max. Resolution: 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V);5MP@12.5fps:
  • 1080P: 1920(H)×1080(V)
  • Min. Illumination: 0.02lux(F1.6, AGC ON), 0 lux (white light on)
  • Day/Night: 24/7 color images
  • warranty: 1 Year
Get a quote
Call Us
Chat us on Whatsapp
Payment Methods
Brand:
UNV
Camera
Frame Rate
TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC
Sensor
1/2.7"
Lens
2.8mm
Angle of View (H)
110.0°
Angle of View (V)
57.0°
Shutter
PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s
Minimum Illumination
0.02lux(F1.6, AGC ON) 0 lux (white light on)
Day/Night
24/7 color images
Digital noise reduction
2D
WDR
DWDR
Camera Specification
Camera Technology
HD Camera
Indoor / outdoor
Indoor
Camera Mega Pixels
5 MP
Camera Lens
2.8 MM

UNV UAC-T115-F28-W - Description

2.8mm 5MP ColourHunter Fixed Turret Analog Camera

Superior 5MP Image Quality for Clear Surveillance:

The UNV UAC-T115-F28-W ColourHunter HD Fixed Turret Camera is designed to deliver crystal-clear 5MP resolution (2880×1620) for superior image performance. Equipped with a 1/2.7" high-sensitivity image sensor, it captures vibrant details even in challenging lighting conditions. With multiple frame rate options — including 5MP@25fps, 4MP@30fps, and 1080P@30fps — this camera ensures smooth and consistent video output across various formats. Whether used in homes, offices, or outdoor environments, the camera provides true-to-life color reproduction and accurate visual monitoring.


24/7 Full-Color Imaging with ColourHunter Technology:

Unlike traditional night vision cameras, the UNV UAC-T115-F28-W features ColourHunter technology that enables 24/7 full-color video, even in complete darkness. It uses a powerful white-light illuminator with a 20-meter range, ensuring that every corner remains visible at night. The illuminator’s lifespan of over 60,000 hours guarantees long-term reliability and low maintenance. This advanced illumination system not only enhances night-time visibility but also acts as a deterrent to potential intruders by lighting up dark areas instantly.

Wide 110° Field of View and Flexible Lens Design:

Fitted with a 2.8mm M12 lens, this camera offers a wide horizontal viewing angle of 110°, vertical of 57°, and diagonal of 130°. This broad field of view allows comprehensive coverage of larger areas, reducing blind spots and minimizing the need for multiple cameras. Its fixed turret design provides flexibility in installation while maintaining stable positioning for accurate monitoring. Whether installed in retail shops, parking lots, or residential premises, the camera ensures optimal scene coverage with maximum efficiency.

Advanced Image Optimization and Smart Features:

The UNV UAC-T115-F28-W includes DWDR (Digital Wide Dynamic Range), 2D DNR (Digital Noise Reduction), and multiple exposure modes — Global, BLC, HLC, and DWDR — ensuring well-balanced images in high-contrast environments. The camera automatically adjusts brightness and color tones to deliver clear images under direct sunlight or low-light conditions. With auto and manual white balance modes, it consistently maintains accurate color fidelity. Additionally, the 180° horizontal and vertical flip options make it easy to adjust the view orientation for different mounting scenarios.

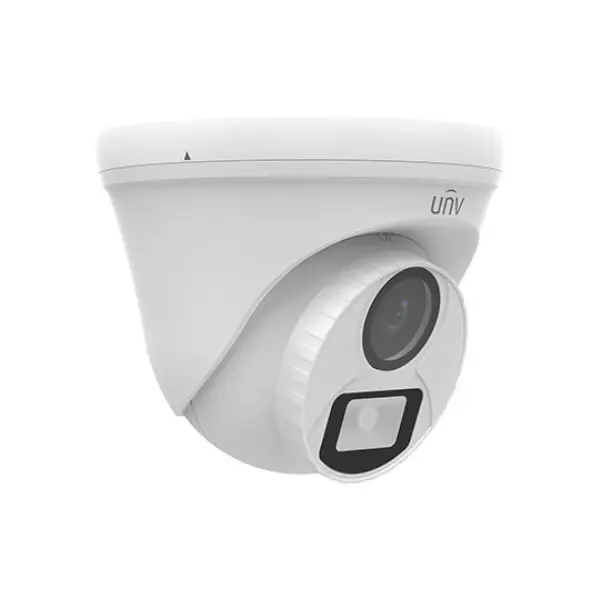

surveillance camera

Rugged Design and Reliable Performance:

Engineered for durability, this camera features an IP67-rated weatherproof enclosure, making it ideal for both indoor and outdoor installations. It operates flawlessly in temperatures ranging from -30°C to 60°C, with built-in 4KV surge protection for enhanced reliability during thunderstorms or power fluctuations. The DC12V power input (±25%) ensures stable performance with reverse polarity protection, and it consumes a maximum of only 2.4W, ensuring energy efficiency. Weighing just 205g and crafted from durable plastic, the UAC-T115-F28-W is lightweight yet robust for long-term use.

Versatile Compatibility and Easy Installation:

The UNV UAC-T115-F28-W supports multiple video output formats including TVI, AHD, CVI, and CVBS, ensuring compatibility with most analog DVR systems. Its BNC video interface and 5.5mm power connector make installation quick and straightforward. The camera can be mounted using surface, wall, or backbox options, providing flexibility for different environments. With certifications such as CB, CE, and FCC, users are assured of global safety and quality compliance.

The UNV UAC-T115-F28-W 5MP ColourHunter Camera is a perfect blend of advanced imaging technology, robust design, and ease of installation. Delivering round-the-clock color video, superior resolution, and reliable outdoor performance, it’s an ideal choice for residential, commercial, and industrial surveillance applications. With its excellent price-to-performance ratio, this camera ensures vivid detail, strong security coverage, and long-lasting reliability for any security setup.You have not enough Humanizer words left. Upgrade your Surfer plan.
