Xprinter XP-R330H Receipt Printer
Please sign in so that we can notify you about a reply
Brand:
Xprinter
Point Of Sale Spec
Printer Method
Thermal Line
Print Speed
300 mm/s
Auto Cutter
Partial
Barcode Size
5 CM

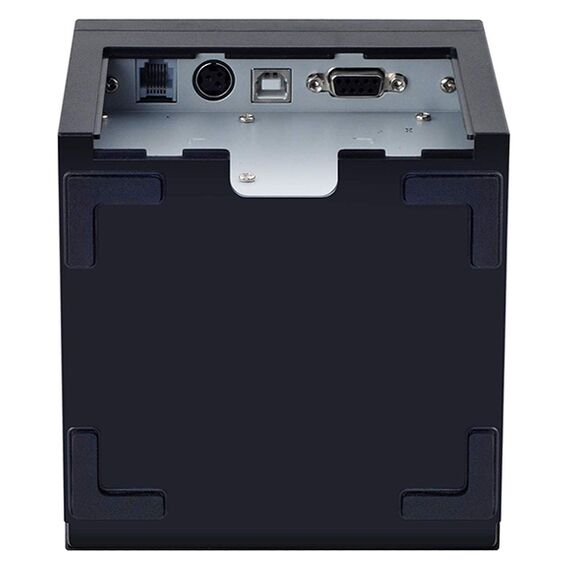

IO Ports
USB+Lan/USB+Serial
Power Supply Adapter
Input: AC 100-240V, 50~60Hz Output: DC 24V/2.5A
Dimension
133 × 126 ×130 mm
Weight
1.115 Kg

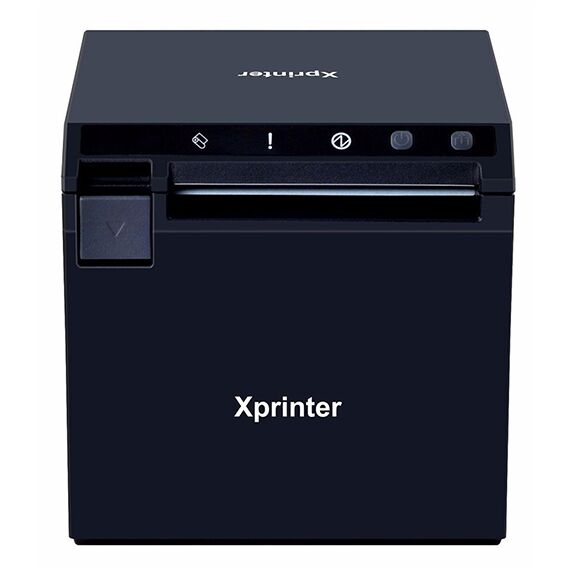

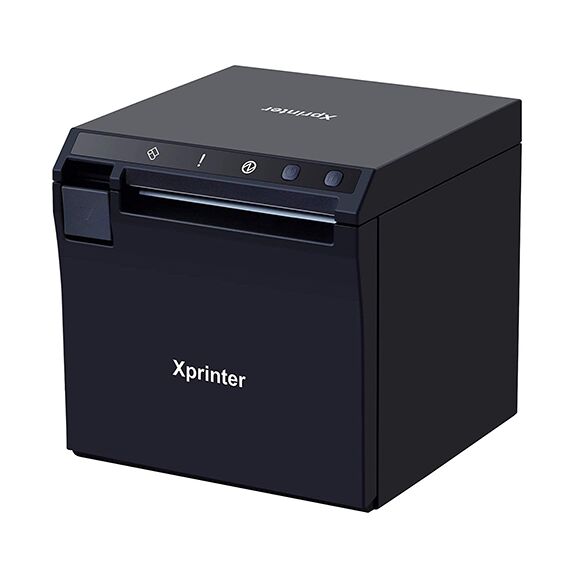

Xprinter XP-R330H
Xprinter, XP-R330H, Barcode Printer,

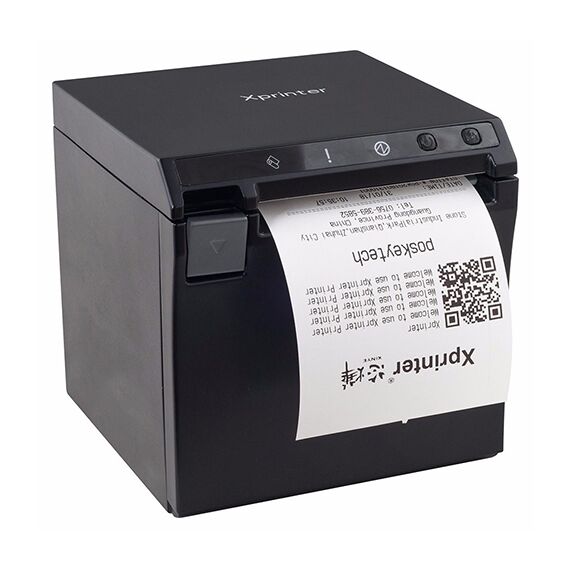

XP-R330h Compact design, fashionable appearance, convenient and fast printing speed of 300mm / s.
Easy use features include drop-in paper loading and auto cutter
Support 58mm & 80mm and 83mm width paper roll
Printing speed 300mm/s Max. for both graphics and text
Flexible interface options
Specification:
| Model | XP-R330H |
| Printing | |
| Printing method | Direct thermal |
| Paper width | 58/80/83±0.5mm |
| Print width | 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm |
| Column capacity | 576 dots/line(adjustable by command) |
| Printing speed | 300 mm/s Max. |
| Interface | USB+Lan/USB+Serial （Optional : WIFI/Bluetooth) |
| Line spacing | 3.75mm (Adjustable by commands) |
Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns |
Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） |
| Cutter | |
| Auto cutter | Partial |
| Barcode Character | |
| Extension character sheet | PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） |
| Barcode types | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D Barcode | QR Code / PDF417 |
| Input buffer | 2048 Kbytes |
| NV Flash | 256 Kbytes |
| Power | |
| Power adaptor | Input: AC 100-240V, 50~60Hz Output: DC 24V/2.5A |
| Printer input | DC 24V/2.5A |
| Cash drawer output | DC 24V/1A |
| Physical characteristics | |
| Weight | 1.115 KG |
| Dimensions | 133×126×130mm (D×W×H) |
| Environmental Requirements | |
| Operation environment | Temperature (0～45℃) humidity(10～80%) |
| Storage environment | Temperature(-10～60℃) humidity(10～80%) |
| Reliability | |
| Cutter life | 2 million cuts |
| Printer head life | 150 KM |
| Software | |
| Emulation | ESC/POS |
| Driver | Windows/JPOS/Linux/Android/Mac/OPOS |
| Utility | Windows & Linux test Utility |
| SDK | iOS/ Android/ Windows |
