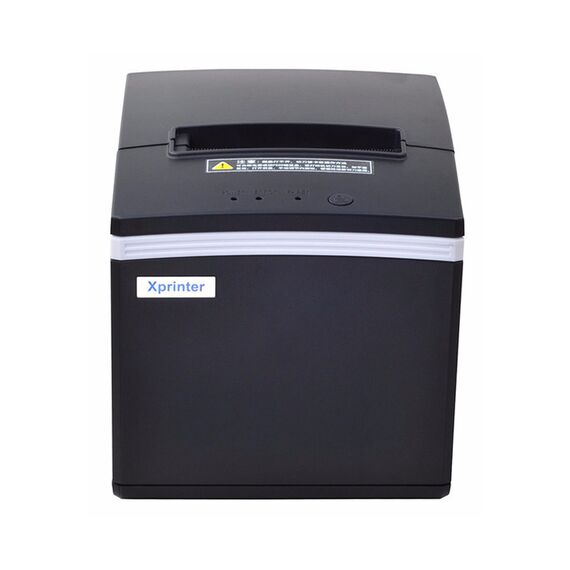

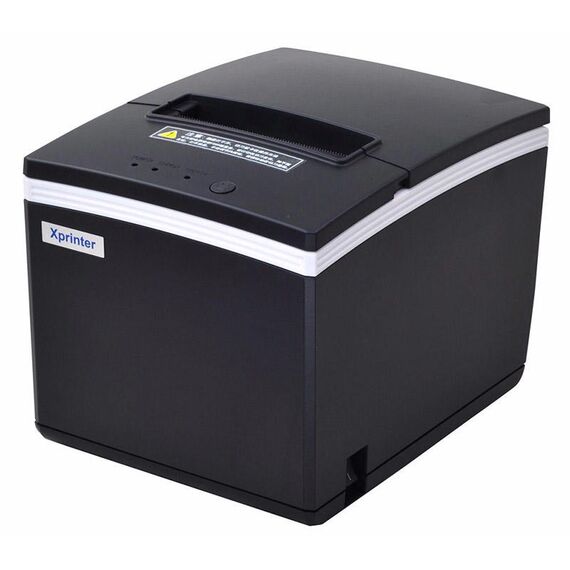

Xprinter XP-E260L Receipt Printer
Please sign in so that we can notify you about a reply
Brand:
Xprinter
Xprinter
XP-E260L
Barcode Printer,
XP-E260L with horizontal:
XP-E260L Horizontal Wall, Easy Paper Load, High Print Speed, High. 260mm / s, QR code support, OPOS driver available to everyone.
XP-E260L Design:
On horizontal wall, light paper load, high print speed up to 260 mm / s, OPOS driver available
Applications:
Specifications:
| Model | XP-E200L | XP-E260L |
| Printing | ||
| Printing method | Direct thermal | |
| Paper width | 79.5±0.5mm | |
| Print width | 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm | |
| Column capacity | 576 dots/line(adjustable by command) | |
| Printing speed | 200 mm/s Max. | 260 mm/s Max. |

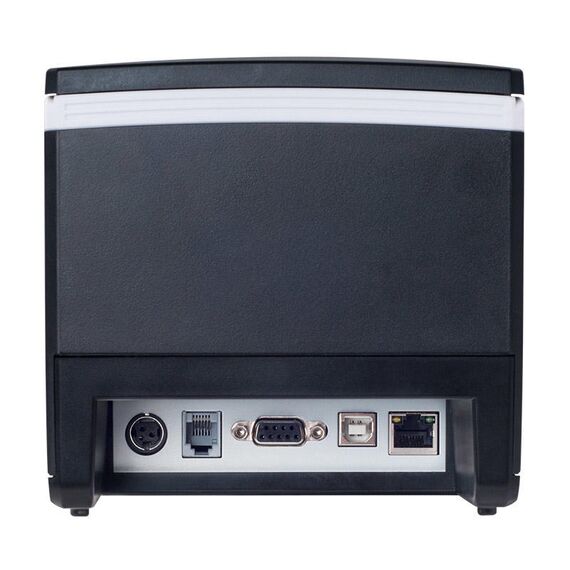

| Interface | USB+Lan/USB+Serial (Optional: Bluetooth/Wifi) | USB+Serial+Lan |
| Line spacing | 3.75mm (Adjustable by commands) | |
Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns | |
Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） | |
| Cutter | ||
| Auto cutter | Partial | |
| Barcode Character | ||
| Extension character sheet | PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） | |
| Barcode types | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 | |
| 2D Barcode | QR Code / PDF417 | |
| Input buffer | 128 Kbytes | |
| NV Flash | 256 Kbytes | |
| Power | ||
| Power adaptor | Input：AC 100-240V, 50~60Hz Output: DC 24V/2.5A | |
| Printer input | DC 24V/2.5A | |
| Cash drawer | DC 24V/1A | |
| Physical characteristics | ||
| Weight | 1.12 Kg | |
| Dimensions | 192×140×140mm (D×W×H) | |
| Environmental Requirements | ||
| Operation environment | Temperature 0~45 °C humidity: RH 10～80>#/td### | |
| Storage environment | Temperature -10～60℃ humidity: RH 10～90>#/td### | |
| Reliability | ||
| Cutter life | 1.5 million cuts | |
| Printer head life | 150 KM | |
| Software | ||
| Emulation | ESC/POS | |
| Driver | Windows/JPOS/Linux/Android/Mac/OPOS | |
| Utility | Windows & Linux test Utility | |
| SDK | iOS/Android/Windows | |
