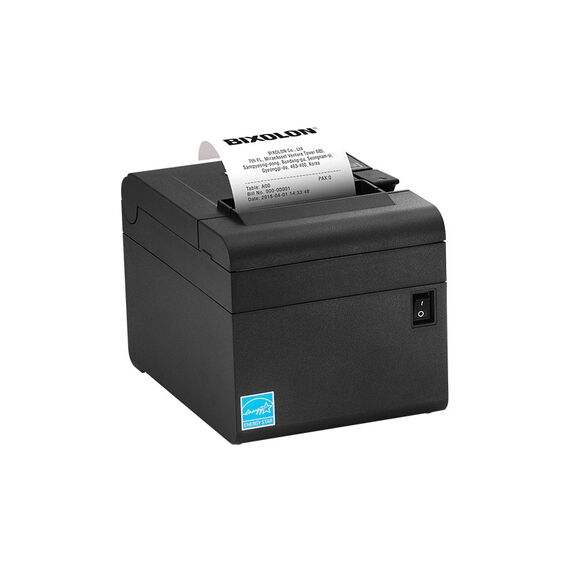

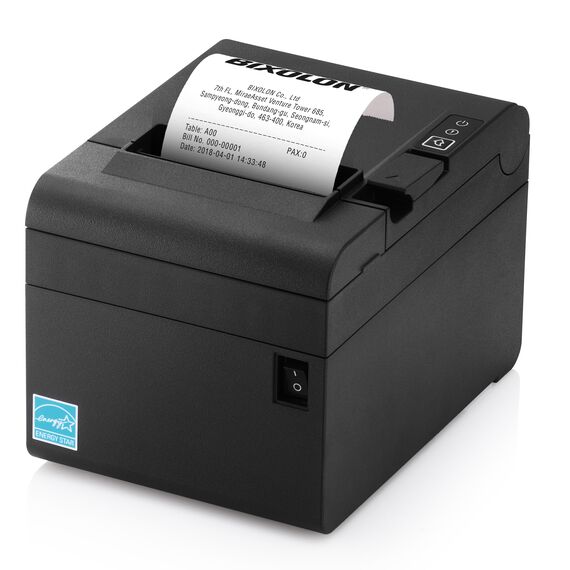

Bixolon SRP-E300
Bixolon, SRP-E300K, Receit Printer, USB + Network,
Convenient and economical:
The SRP-E300 is a cost-effective 3-inch (80mm) direct thermal thermal card and receipt printer ideal for retail stores, hotels and banks. With high quality graphics, text and barcodes, it delivers print speeds up to 220mm / s and print resolutions up to 180dpi (SRP-E300). This POS printer features a reliable 150km TPH and 1.5 million automatic cutouts.
The SRP-E300 is compatible with traditional fixed POS installations or as part of mobile POS, all major including Windows®, iOS ™, Android ™, Linux®, Xamarin ™, Chrome ™ and Cordova ™. Compatible with operating system. World wide. A comprehensive package of SDKs (a set for software developers).
Due to its compact and ergonomic design, the SRP-E300 can be used as a stand-alone or wall-mounted printer as an additional space-saving option. For cost-effectiveness, the printer is available in a USB-only version or with a BIXOLON ™ universal interface that includes USB V2.0FS + Ethernet + serial. It also includes a paper saver mode that can reduce the length of your receipt by up to 25%. The SRP-E300 also comes with a standard 2-year warranty and Energy Star certification.
Economic efficiency:
• USB-only economy version • All-in-one Plus ™ interface USB V2.0 FS + Ethernet + Serial • Paper saving mode that reduces receipt length by up to 25% • Energy Star certified
Reliable printing performance:
• Printing speeds up to 220 mm / sec. • High reliability mechanism: 150km TPH and 1.5 million cutters • 180/203 DPI support
User-friendly design:

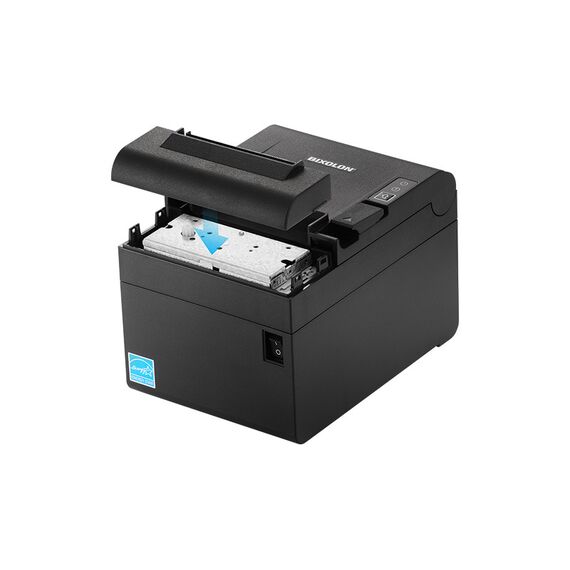

Free-standing or compact use for wall mounting. The set side of the paper can be easily identified by drawing. On the printer cover • 10% smaller than SRP-330II • Paper and error LED display
Specifications:
| Print Characteristics | |
| Print Method | Direct Thermal (Top / Front Exit) |
| Print Speed | SRP-E300 : 180dpi SRP-E302 : 203dpi |
| Print Resolution | 220 mm/sec |
| Print Width | Up to 72mm |
| Sensor | Paper End |
| Media Characteristics | |
| Media Type | Receipt |
| Media Width | 80 mm |
| Media Roll Diameter | Up to 83 mm |
| Media Thickness | 0.062 ~ 0.075 mm |

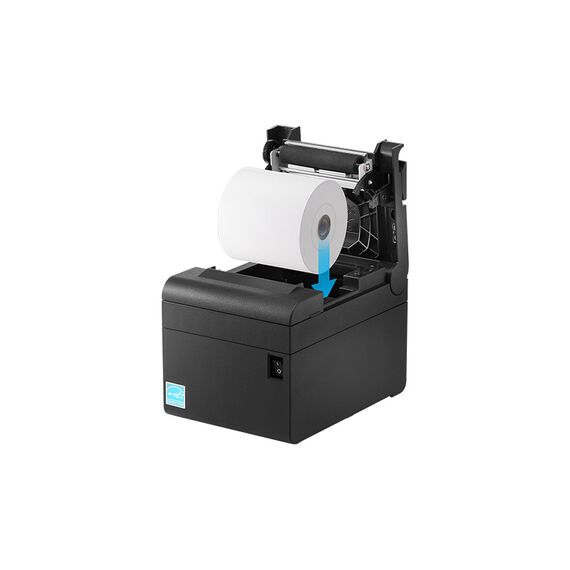

| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| "Dimensions(WxDxH)" | 132 x 182.4 x 128.5 mm (5.19 x 7.18 x 5.05 inch) |
| Weight | 1.23kg (2.71 lbs) |
| Electrical | EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz |
| Drawer Port | 2 ports (Via y-type adaptor) |
| Performance Characteristics | |
| Memory | - |
| NV Image Memory | 768 Kbytes (Mono) |
| Receive Buffer | 4 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | ① USB V2.0 FS ② USB V2.0 FS + Ethernet + Serial |
| Environment Characteristics | |
| Temperature | "Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)" |
| Humidity | "Operating: 10 ~ 80% RHStorage 10 ~ 90% RH" |
| Reliability | |
| Thermal Print Head (TPH) | 150 km |
| Auto Cutter | 1.5 Million Cuts |
| *** Specified Paper | - TF50KS-E (Paper thickness: 65μm) : Nippon Paper industries Co., Ltd. - PD 150R (Paper thickness: 75μm) : New Oji Paper Mfg, Co., Ltd - PD 160R (Paper thickness: 75μm) : New Oji Paper Mfg, Co., Ltd. - P350 (Paper thickness: 62μm) : Kansaki Specialty Paper, Inc. (USA) |
| Software | |
| Emulation | BXL / POS |
| Driver/Utility | Windows Driver, OPOS Driver, JPOS Driver, CUPS Driver(Linux/Mac), Virtual COM USB Driver, Utility Program |
| SDK/Plugin | iOS SDK, Android SDK, Windows SDK, Linux SDK, Xamarin SDK, Chrome Plugin, Cordova Plugin |
| Application | - |
| MDM(Optional) | - |
| Fonts/Graphics/Symbologies | |
| Character Size | Font A: 12 x 24 Font B: 9 x 17 Font C: 9 x 24 KOR, CHN, JPN: 24 x 24 |
| Characters Per Line | SRP-E300: Font A: 42 Font B, C: 56 KOR, CHN, JPN: 21 SRP-E302: Font A: 48 Font B, C: 64 KOR, CHN, JPN: 24 |
| Character Sets | Alphanumeric: 95 Extended Graphics: 128 x 35 page International: 32 |
| Graphics | Supporting user-defined fonts, graphics, formats, and logos |
| Barcode Symbologies | 1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR Code |
| Accessories | |
| Standard | USB A-B Cable |
| Optional | External buzzer, B-Melodist |
