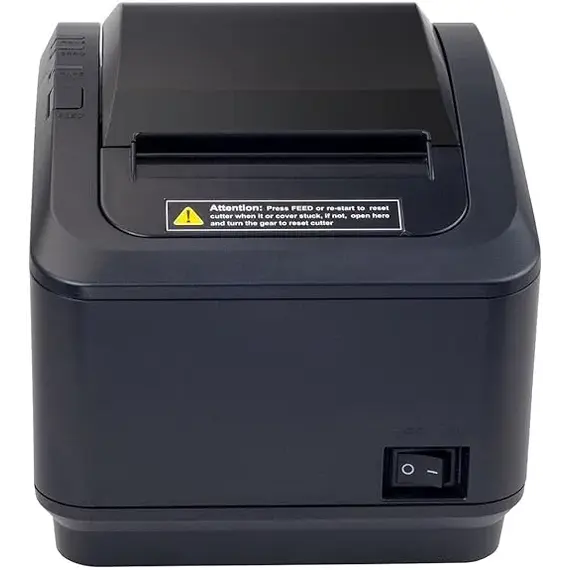

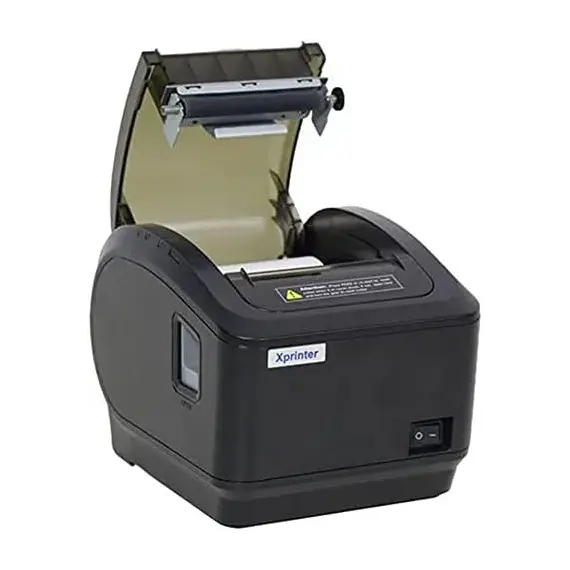

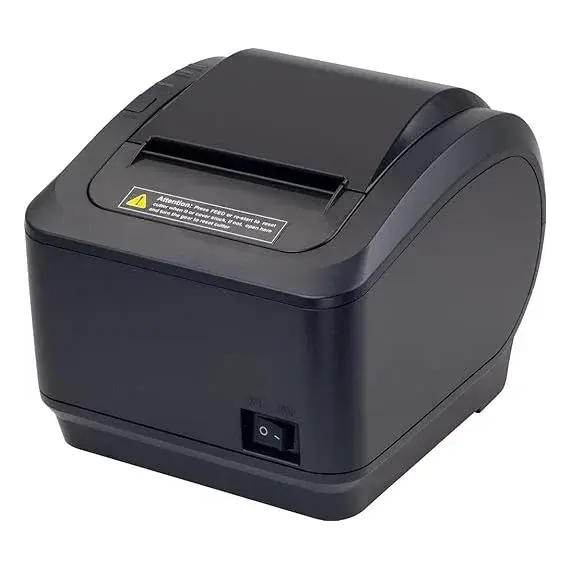

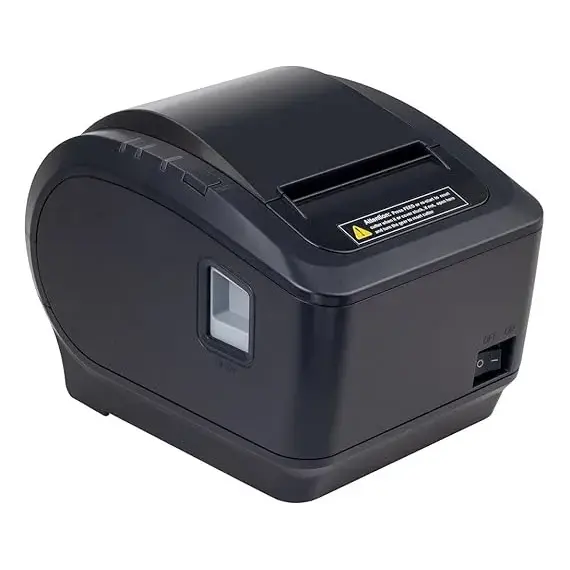

Xprinter

D200L

USB Receipt Printer

Designed for vertical, wall and custom printing, the thermal printer is suitable for general POS printing as well as kitchen printing and is oil, water and dust resistant.

Multifunctional and versatile printer manufacturers can be used in many industries and sectors. Xprinter always thinks of you. We can develop comprehensive and professional solutions according to your actual needs.

Built on high-quality materials and advanced technology, the printer manufacturer is characterized by excellent quality and affordable prices. It is a highly reliable product that is highly rated and supported in the market.

Specs:

Printing method: Direct thermal

Print width: D200N: 72mm

Maximum Paper diameter: ᶲ80mm

Paper Thickness: 0.06-0.08mm

Column capacity: 576 dots/line 512 dots/line

Printing speed: 250mm/s

Interface:    USB

Printing paper: 79.5±0.5mm

Line spacing: 3.75mm (Adjustable by commands)

Commands: Compatible with ESC/POS

Character size:

ANK，Font A: 12×24 dots

Font B: 9×17 dots

Simplified/traditional Chinese: 24×24 dots

Cutter:

Auto cutter: Partial

Barcode Character

Code Page:

PC347(standard Europe), Katakana, PC850(Multilingual), PC860(Portuguese),PC863(Canadian-French), PC865(Nordic), WestEuropeGreek, Hebrew, East Europe, Iran, WPC1252, PC866(Cyrillic#2), PC852(Latin2),Pc858, IranII, Latvian, Arabic, PT151(1251)

Barcode types:

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8) /CODE39/ITF/CODABAR/CODE93 /CODE128

Buffer

Input buffer: D200N: 64 Kbytes

NV Flash: 256 Kbytes

Power

Power adaptor: AC 110V/220V, 50～60Hz

Power source: DC 24V/2.5A

Input Voltage: DC 24V/2.5A

Cash drawer output: DC 24V/1A

Physical characteristics

Weight: 1.0KG

Dimensions: 184 × 140 × 135mm (D × W × H)

Environmental Requirements:

Work environment: Temperature: (0～45℃)  humidity: 10～80RH%

Storage environment: Temperature: -10～60℃ humidity: 10～90RH%

Reliability

Cutter life: 1.5 million cuts

Printer head life: 150KM

Operating System: Windows / Linux
