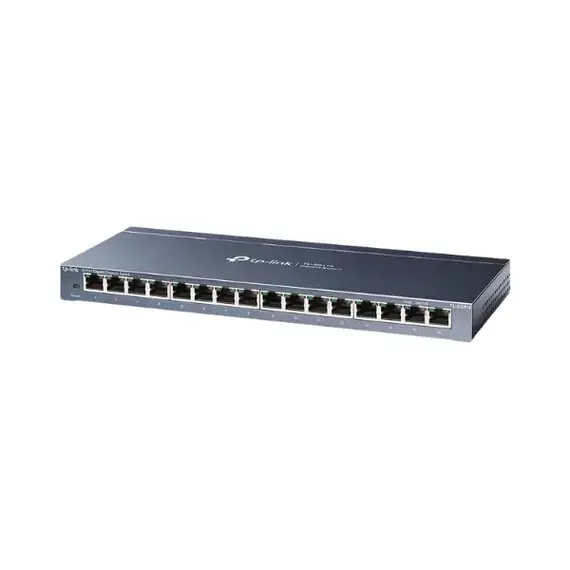

TP-Link TL-SG116 Desktop Switch, 16-Port Gigabit 10/100/1000Mbps

TP-Link TL-SG116 - Description

Desktop Switch, 16-Port Gigabit 10/100/1000Mbps

Increase Your Network Speed and Save Energy:

TP-Link TL-SG116 is a 16-port Gigabit desktop switch designed for high-speed and energy-efficient networking.

It features auto-negotiation RJ45 ports with Auto-MDI/MDIX support, ensuring seamless connectivity.

With Green Ethernet technology, it reduces power consumption while maintaining reliable data transfer through IEEE 802.3x flow control.

Its durable steel housing allows for both desktop and wall-mounted installation.

Additionally, the switch supports 802.1p/DSCP QoS and IGMP Snooping for optimized network performance. It operates on a plug-and-play basis, requiring no configuration.

Seamless Connectivity for Your Business and Home:

The TL-SG116 Desktop Switch offers a simple way to boost the speed of your network, whether at home or in the office. It enhances server and backbone connections, ensuring smooth and efficient business operations.

Effortless Setup – Plug and Play:

With a plug-and-play design, installation is quick and hassle-free, requiring no technical expertise. Each port features auto-negotiation, detecting device speeds and adjusting for optimal performance.

Setup Steps:

Power On – Connect the switch to a power source.

Connect Your Devices – Easily link IP phones, computers, fax machines, and the internet.

Enjoy Fast Networking – Benefit from seamless, high-speed connectivity.

High-Speed Gigabit Performance:

Equipped with 16 non-blocking Gigabit ports (10/100/1000Mbps), the TL-SG116 enables instant data transfers, handling large files and bandwidth-heavy applications without delays.

Energy-Efficient Networking:

TP-Link’s Green Ethernet technology intelligently adjusts power consumption based on link status and cable length, reducing energy usage. This eco-friendly design helps lower power bills while contributing to a greener planet.

Technical Specifications of TL-SG116:

This fanless switch operates silently and includes a physical security lock for added protection. It is powered by an external 12VDC/1.0A adapter and features LED indicators for system power and per-port link/activity status.

With compact dimensions (286*111.7*25.4 mm), it is designed for space efficiency. The switch consumes a maximum of 10W (at 220V/50Hz) and has a heat dissipation rate of 34.12 BTU/h, ensuring energy-efficient operation.
