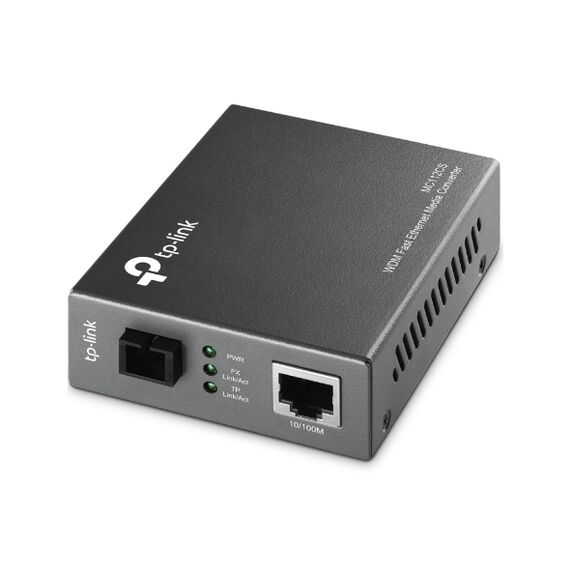

Tp-Link Media Converter 10/100Mbps WDM / MC112CS

1,235 EGP
Out of stock

10/100Mbps WDM Media Converter

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
Reward points: 618 points

10/100Mbps WDM Media Converter

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km
  • أحصل علي عرض سعر لشركتك
  • Call Us
  • Chat Us With Whatsapp
  • Payment options
  • احصل على عرض أسعار لمؤسستك يشمل جميع المنتجات أو الخدمات او الحلول التي تحتاجها، وسيتم الرد عليك في اقرب وقت

    أضغط هنا

  • You can contact us on the hotline all days of the week from 10 am to 10 pm
    Call Us 15240
  • You can contact us via WhatsApp

    Click Here

    • Cash on delivery
    • Visa and Mastercard
    • Mobile Wallets
Brand:
TP-Link

Tp-Link Media Converter 10/100Mbps WDM / MC112CS

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Work with MC112CS WDM single fiber media converter
  • Extends fiber distance up to 20km (12.5 miles)

What This Product Does

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media and vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.5 miles).

MEDIA CONVERTER & MODULE
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u
Basic FunctionAdopts WDM technology
Half/Full-Duplex transfer mode for FX port
Extends fiber distance up to 20km
Ports1 100M SC/UPC port
1 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length1310nm Tx/1550nm Rx
WDM TX1310nm
WDM RX1550nm
Network Media 10BASE-TUTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-TUTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FXSingle-mode Fiber
LED IndicatorsPWR, Link/Act
Dimensions (W*D*H)3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power SupplyExternal Power Adapter
Max Power Consumption1.18W
Safety & EmissionFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
