Ruijie Reyee RG-EST310 V2 5GHz Dual-stream 802.11ac 1KM Wireless Bridge

Ruijie Reyee RG-EST310 V2 - Description

5GHz Dual-stream 802.11ac 1KM Wireless Bridge

Reliable Long-Range Connectivity for CCTV:

The Ruijie Reyee RG-EST310 V2 is a high-performance 5GHz single-band dual-stream 802.11ac wireless bridge designed to provide stable and efficient long-distance connectivity. Engineered for professional surveillance deployments, this device supports data transmission up to 1 km and even beyond under optimal conditions. With its factory-paired setup and automatic re-bridging after power restoration, installation is quick and hassle-free, making it an ideal solution for CCTV systems, especially in elevators, warehouses, campuses, and remote buildings where running cables is difficult or costly.

High-Speed 802.11ac Performance with 867Mbps Data Rate:

Powered by a high-performance 5GHz 2×2 MIMO chip solution, the RG-EST310 V2 wifi bridge delivers wireless speeds of up to 867Mbps. It features a single-radio design with two spatial streams and supports channel bandwidth options of Auto/20/40/80 MHz for flexible deployment. The bridge ensures stable throughput performance, offering up to 90 Mbps at 100 meters and 80 Mbps at 1 kilometer (HT40 mode). This high data capacity allows multiple IP cameras—ranging from 3MP to 8MP—to operate smoothly over long distances without signal degradation.

Optimized for CCTV Applications and Camera Scalability:

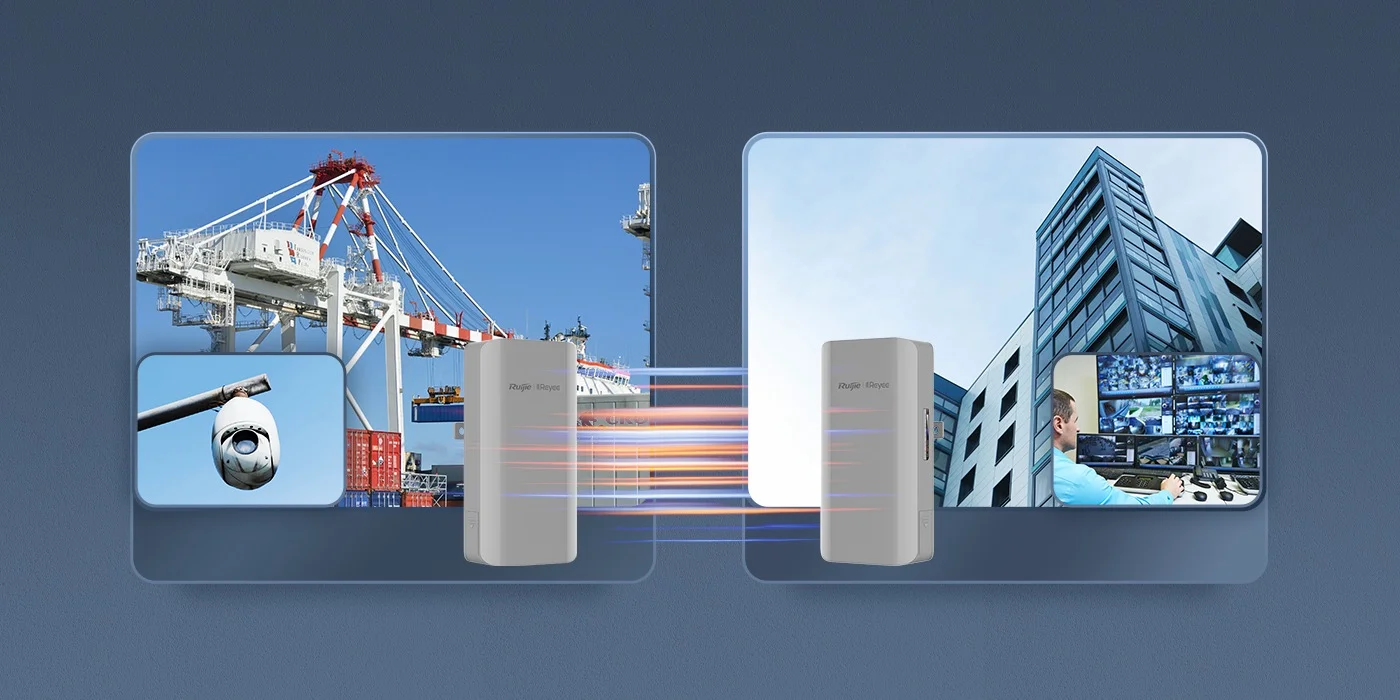

The RG-EST310 V2 wifi bridge is specifically optimized for surveillance scenarios. It supports multiple camera connections depending on resolution and distance. For example, it can handle up to 16 units of 3MP cameras at 1 km or 5 units of 7–8MP cameras at the same distance. Even at extended ranges up to 2 km, the device maintains stable connectivity with reduced but reliable throughput. This makes it a scalable and cost-effective wireless bridge solution for expanding CCTV networks in industrial, residential, and commercial environments.

Durable IP54 Weatherproof Design for Harsh Environments:

Built to withstand challenging outdoor conditions, the RG-EST310 V2 features an IP54-rated weatherproof enclosure and V0-level flame-retardant materials. It operates reliably in temperatures ranging from -30°C to +55°C and humidity levels from 5% to 95% (non-condensing). With a Mean Time Between Failures (MTBF) of 400,000 hours, this bridge ensures long-term durability and minimal maintenance, even in extreme climates.

Smart Management and Easy Deployment:

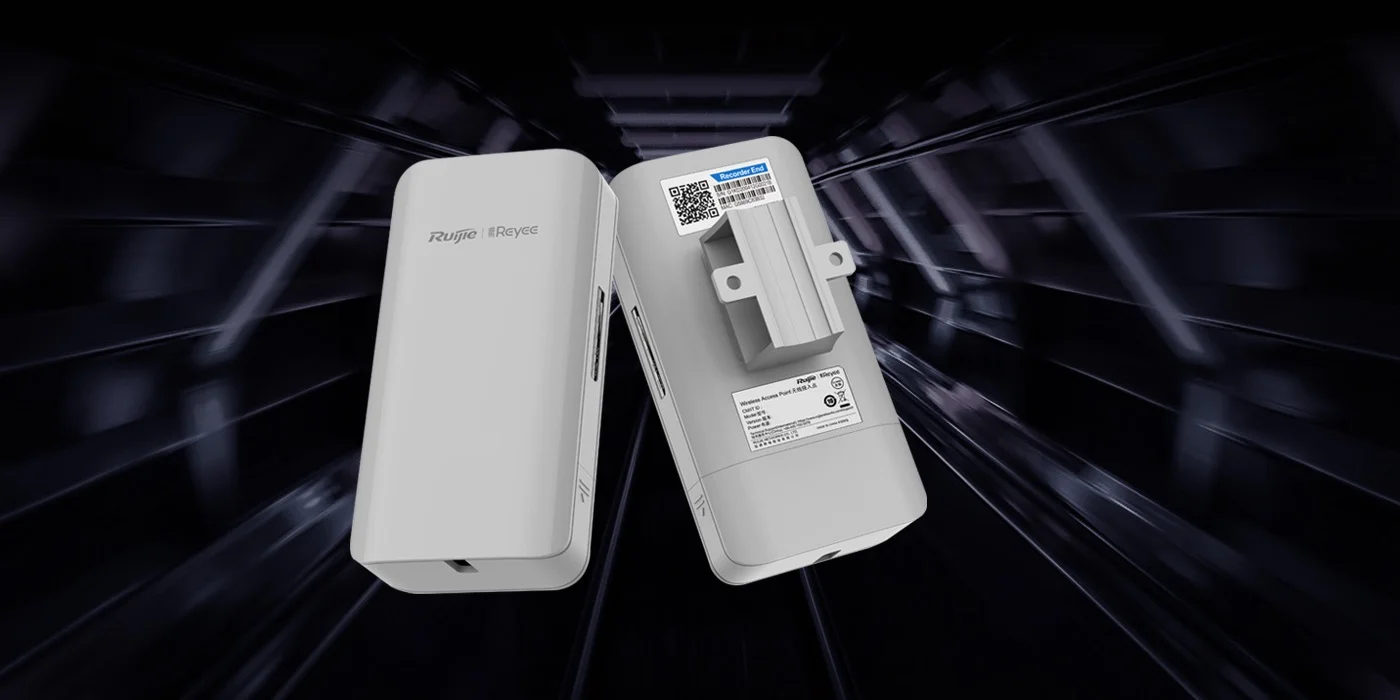

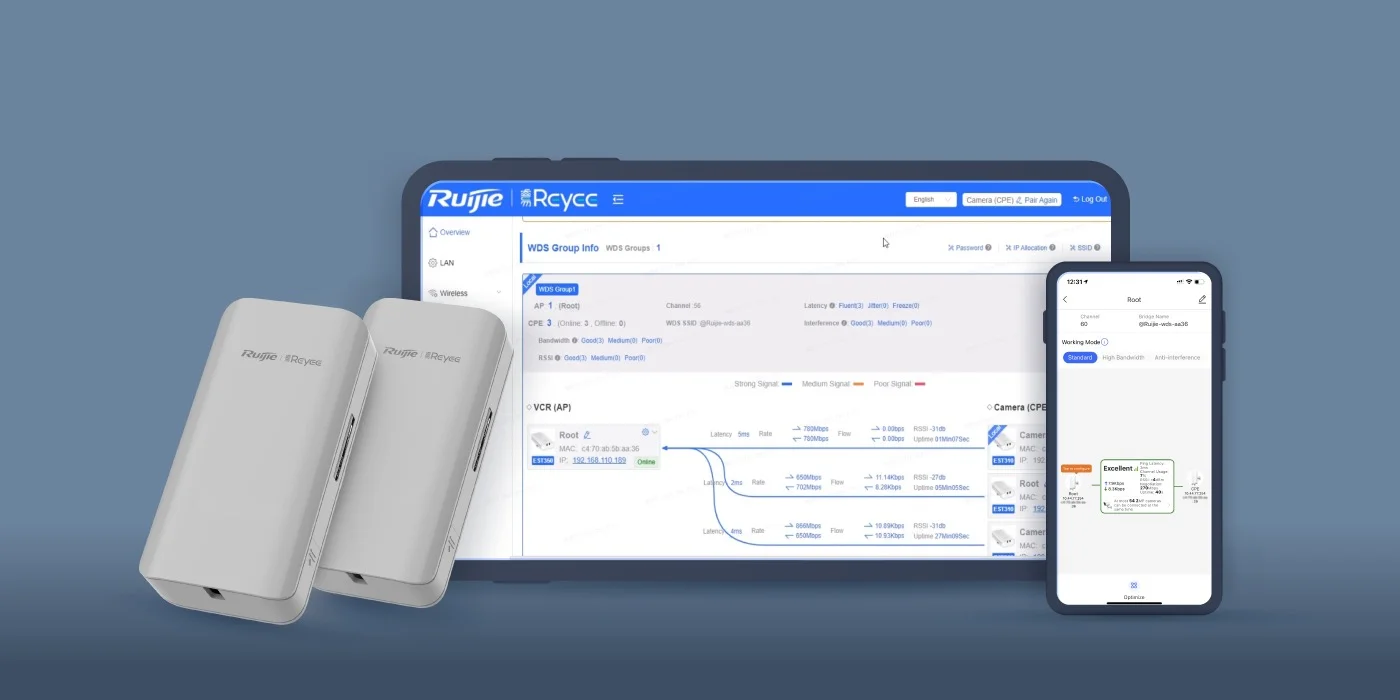

The device supports SON (Self-Organizing Network) technology and allows remote restarting via the Ruijie Reyee App for convenient management. While it does not support SNMP, it includes built-in bridge speed testing to monitor performance. Its compact design (76 × 37 × 147 mm) and single PoE input port simplify installation and power supply, making deployment efficient and flexible.
