Ruijie Reyee RG-AirMetro460F CPE of RG-AirMetro Wireless Bridge

Ruijie Reyee RG-AirMetro460F - Description

CPE of RG-AirMetro Wireless Bridge

High-Performance Wireless Bridge for Outdoor Networks:

The Ruijie Reyee RG-AirMetro460F is a professional outdoor wireless bridge designed to deliver reliable long-distance connectivity for applications such as WISP networks, CCTV surveillance systems, industrial sites, city roads, and factories. Operating on the 5 GHz band, this device supports high-speed wireless transmission up to 867 Mbps, ensuring stable and efficient data communication across large areas. With a point-to-point (PTP) distance of up to 15 km, the AirMetro460F is ideal for extending networks where fiber infrastructure is unavailable or expensive to deploy.

Flexible PTP and PTMP Networking Capability:

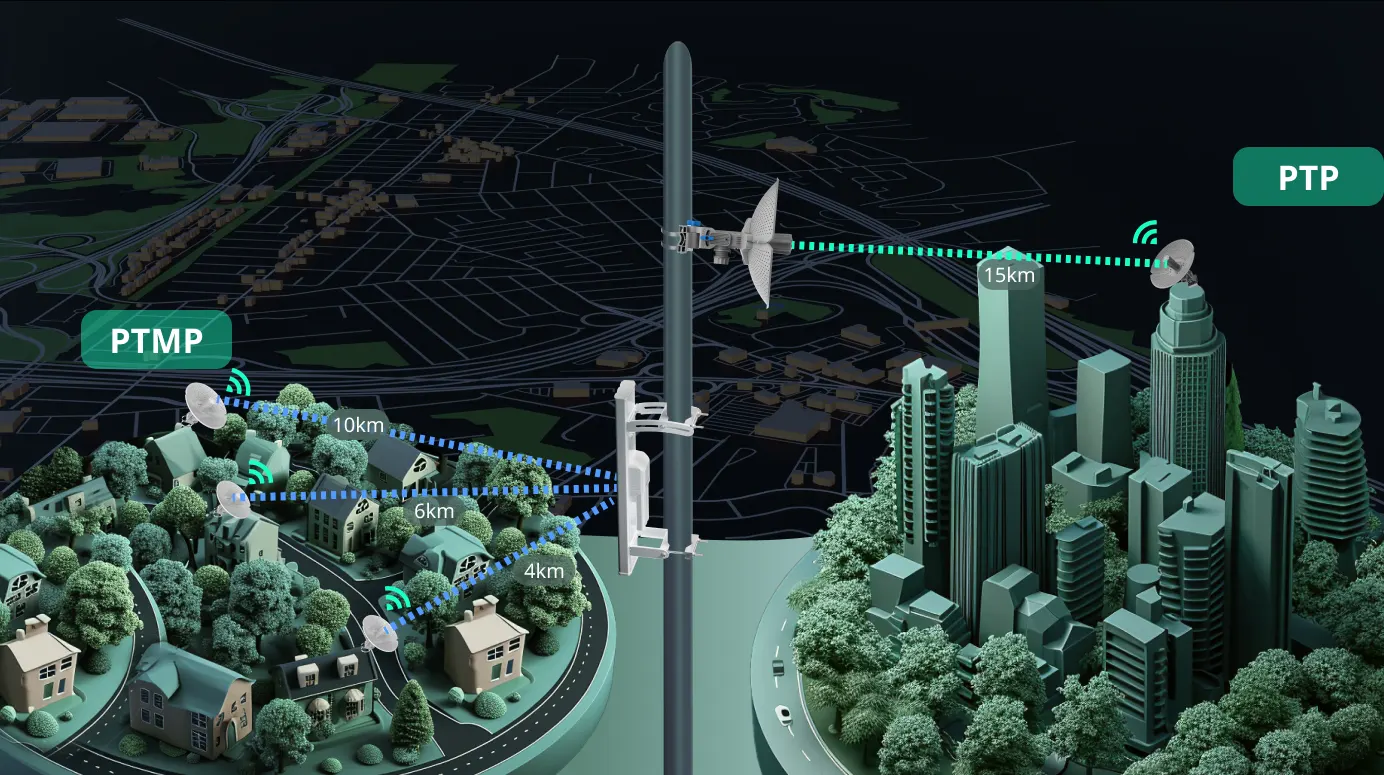

The AirMetro460F supports both PTP (Point-to-Point) and PTMP (Point-to-Multipoint) networking modes, allowing organizations to build scalable wireless networks. In PTMP mode, a single base station can connect to up to 32 CPE devices, enabling efficient distribution of connectivity to multiple remote locations. This flexibility makes the device suitable for projects such as city-wide surveillance, rural internet access, and industrial site monitoring.

Powerful Antenna Design for Strong Signal Coverage:

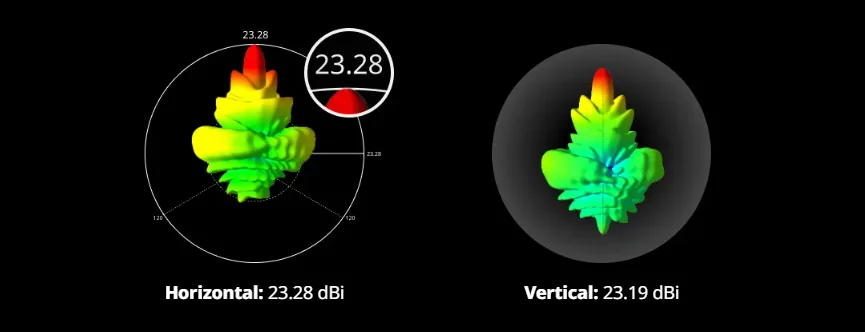

The bridge features a 23 dBi high-gain circular antenna designed to improve signal strength and maintain balanced horizontal and vertical coverage. Compared with traditional square antennas, the circular antenna provides stronger signal distribution and more consistent coverage across the target area. This design improves link reliability, reduces signal loss, and helps maintain stable connections over long distances.

Durable Outdoor Design for Harsh Environments:

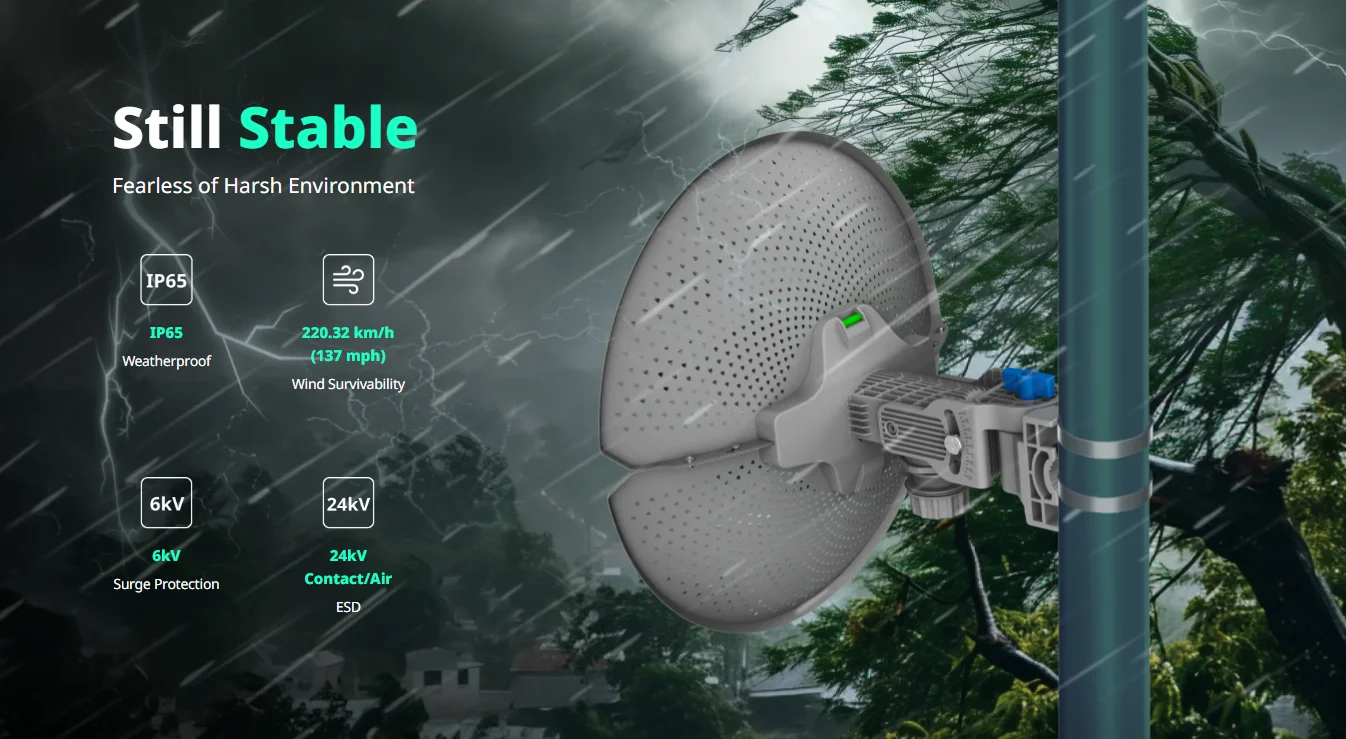

Built for demanding outdoor environments, the AirMetro460F comes with an IP65 weatherproof enclosure and advanced protection features. It supports 6 kV surge protection and ±24 kV ESD protection, safeguarding the device against lightning and electrical disturbances. In addition, the unit is engineered to withstand wind speeds up to 220 km/h, making it suitable for installation on towers, rooftops, or poles in extreme weather conditions.

Smart Cloud Management and Installation Tools:

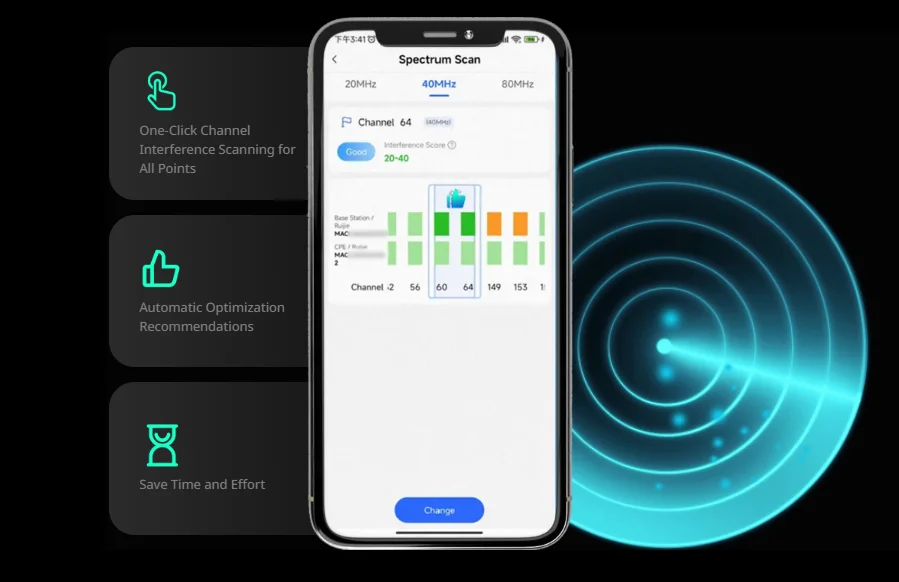

Network management is simplified through Ruijie Cloud and the Ruijie Reyee mobile app, allowing administrators to monitor devices, run bridge speed tests, and remotely restart equipment. The device also includes AI heatmap analysis, spectrum scanning, and an alignment tool, helping installers quickly optimize signal strength and reduce channel interference. These intelligent features significantly shorten deployment time and improve network performance.

Reliable Performance for Surveillance and Internet Distribution:

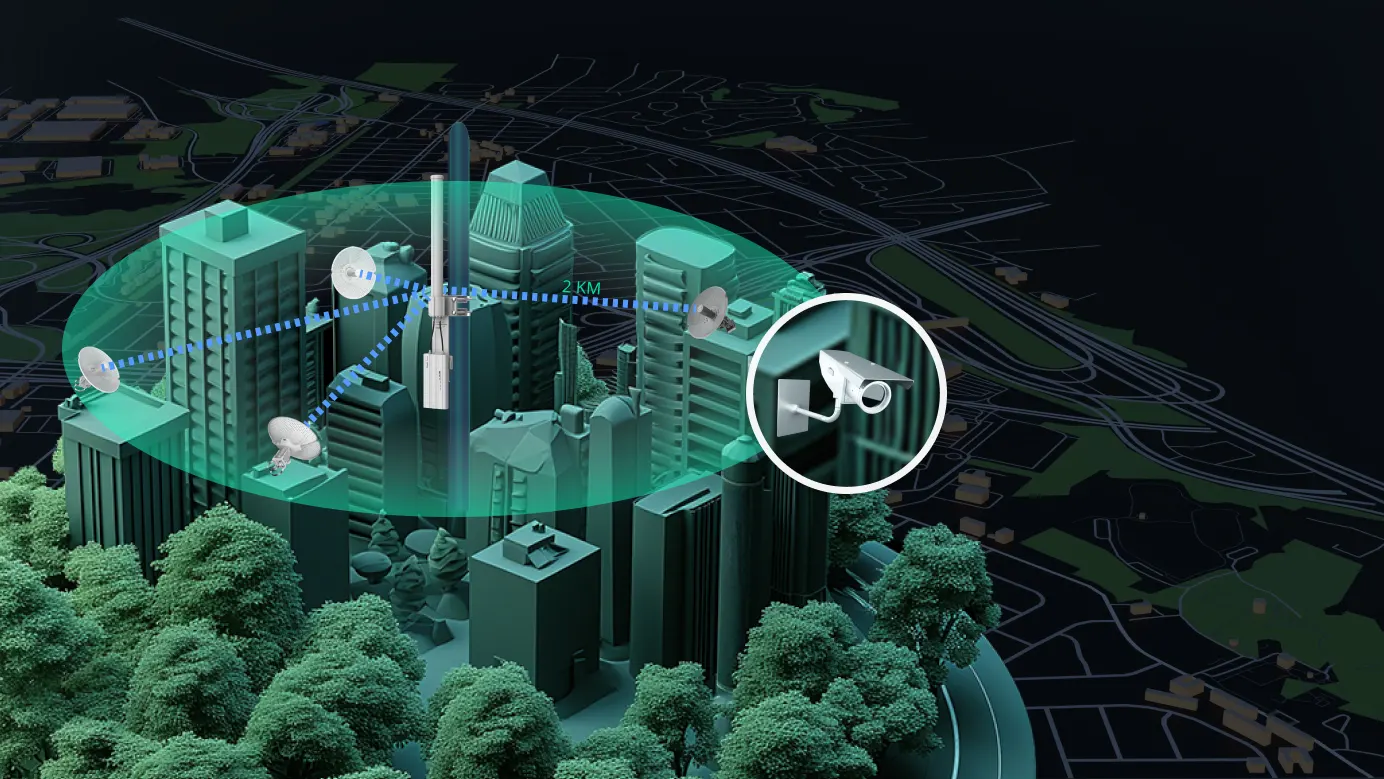

With stable throughput and optimized wireless performance, the AirMetro460F is well suited for CCTV transmission and WISP coverage. Depending on distance and signal strength, it can support multiple IP cameras while maintaining reliable throughput. Its 24 V Passive PoE power supply also simplifies installation by delivering both power and data through a single cable.
