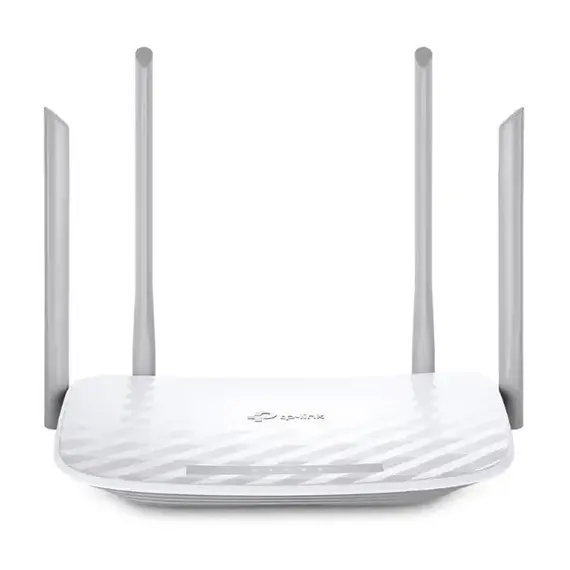

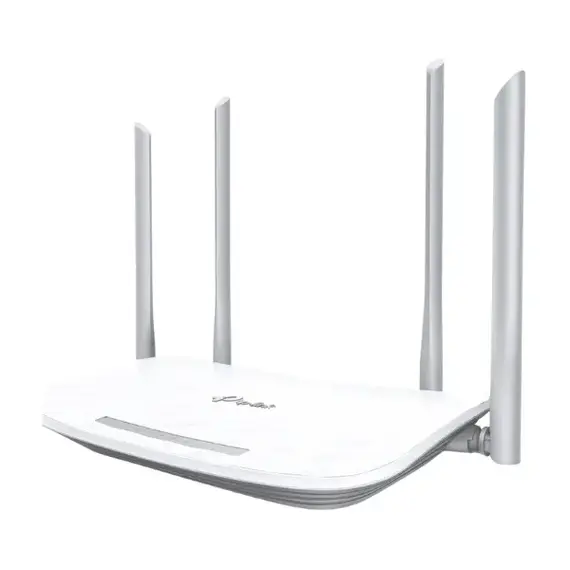

Tp-Link Archer C50 Wireless 4 Port AC1200 Dual Band Wireless Router
Tp-Link
Archer C50
Tp-Link Archer C50 Wireless 4 Port AC1200 Dual Band Wireless Router
Supports 802.11ac
2.4GHz 300Mbps and 5GHz 867Mbps connections simultaneously with a total bandwidth of 1200Mbps
4 External antennas ensure stable wireless connection and perfect coverage
Convenient network management with TP-Link Tether
Supports IGMP Proxy / Snooping, Bridge and Tag VLAN to improve IPTV broadcasting
Supports access point mode to create a new Wi-Fi hotspot.
Powerful dual band wireless Wi-Fi router with long distance.
High-Speed Dual Band Wi-Fi for Better Connections:
The Archer C50 allows your PC or laptop to connect up to 3 times faster than wireless AC technology.
The Arrow C50 delivers 300Mbps at 2.4 GHz band and 867Mbps at 5 GHz band.
Best choice for smooth HD streaming, online games and other high bandwidth requirements.
Innovative Antenna Design for Maximum Coverage:
Four well-placed antennas make your connections more efficient and stable. Advanced antenna technology improves reception, expands your home Wi-Fi coverage.
Easy Parental Control:
Supervised by parents or guardians with responsible access to children and staff. Easily use keywords to access the blacklist and restrict Internet access.
Guest Network Access:
Allow guests to connect to your private Wi-Fi network while maintaining your privacy. Make sharing easy and secure.
Efficient Guest Authentication with Facebook:
The locked gateway allows only authorized guests to use the network and provides authentication mechanisms to provide devices with convenient and easy-to-use Wi-Fi access. Easily share your Facebook account with anyone connected to your network.
Easy Setup and Use:
Configure the Arrow C50 with the familiar web interface and powerful Tester app in minutes. Tether allows you to manage network settings from any Android or iOS device, including parent and access controls.
Specifications:
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| Wi-Fi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| Wi-Fi Range | 2 Bedroom Houses4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas |
| Wi-Fi Capacity | MediumDual-Band Allocate devices to different bands for optimal performance |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | Single-Core CPU |

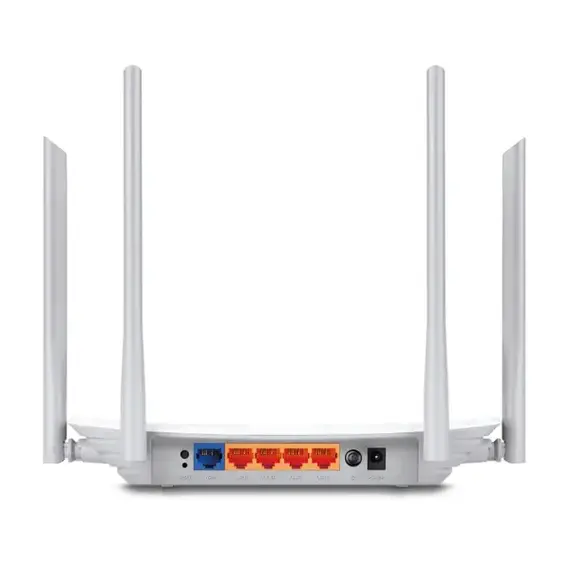

| Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 9 V ⎓ 0.85 A |
| SECURITY | |
|---|---|
| Wi-Fi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPOE PPTP L2TP |
| Quality of Service | QOS by Device |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP DynDNS |
| Management | Tether App Webpage |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 229.9 × 144.2 × 36.9 mm |

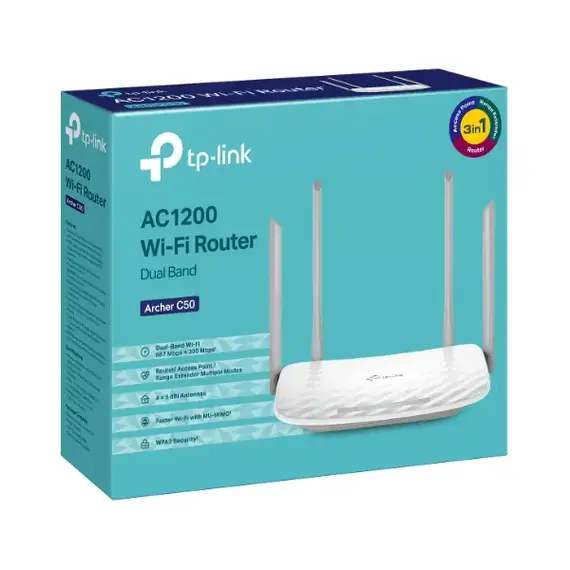

| Package Contents | Wi-Fi Router Archer C50 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| Wi-Fi Transmission Power | CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) |
| Wi-Fi Reception Sensitivity | 5GHz: 11a 54M: -73dBm 11ac VHT20 MCS8: -68dBm 11ac VHT40 MCS9: -64dBm 11ac VHT80 MCS9: -60dBm 2.4GHz: 11g 54M: -76dBm 11n HT20 MCS7: -74dBm 11n HT40 MCS7: -71dBm |
