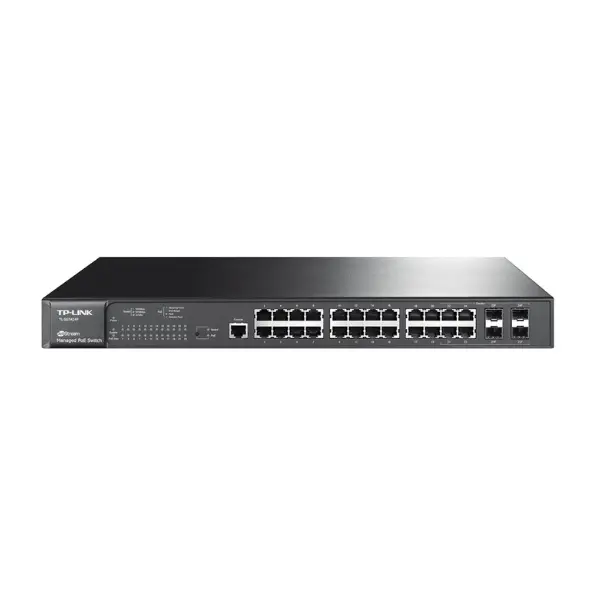

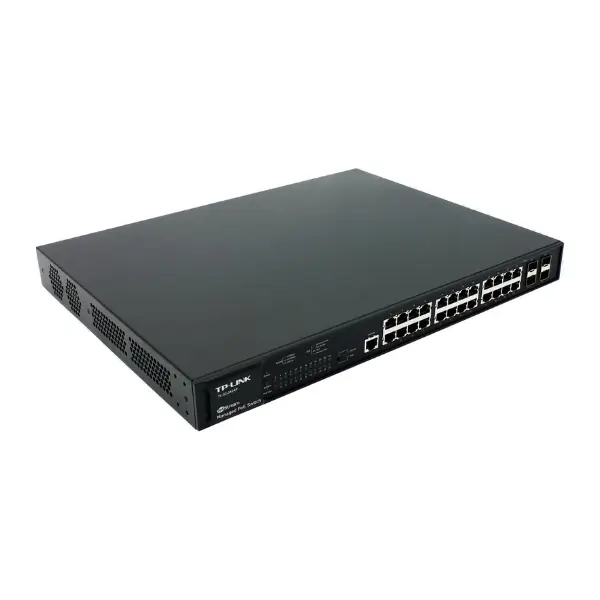

TP-Link TL-SG3424P JetStream 24-Port Gigabit L2 Managed PoE+ 4 Combo SFP Slots Switch
TP-Link
TL-SG3424P
TP-Link TL-SG3424P JetStream 24-Port Gigabit L2 Managed PoE+ 4 Combo SFP Slots Switch
24 802.3at / af POE + ports support a total of 320 watts.
Provides IP-MAC-Port-VID binding, ACL, port security, DoS protection, storm control, DHCP snooping, 802.1X verification and radii.
L2 / L3 / L4 QoS and IGMP improve audio and video applications
Modes managed by WEB / CLI, SNMP and RMON offer a wide range of management options
What This Product Does?
The TL-SG3424P has 24 10/100 / 1000Mbps 802.3at / af compliant PoE ports with a total capacity of up to 320W, capable of deploying wireless access points or IP network surveillance cameras. The switch comes with 4 SFP slots, which allows you to easily expand your network. In addition, it offers high performance, enterprise level QoS, advanced security strategies and rich Layer 2 management features.
TL-SG3424P has powerful security and management features. IP-MAC-Port-VID Binding and Access Control List (ACL) functionality protects against broadcast storms, RP attacks, denial of service (DoS) etc. Service Quality (QoS, L2 to L4) Ensures improved traffic control is smooth and fast. Data transfer. Convenient web-based management interfaces and CLI, SNMP and RMON no longer mean faster installation and configuration. TP-LINK JetStream Gigabit L2 Managed PoE SwitchTL-SG3424P is the best edge access solution for low-cost Layer 2 and Gigabit bandwidths.
IEEE 802.3at/af-compliant Power over Ethernet:
The TL-SG3424P supports 24 IEEE 802.3at / af compliant PoE ports and has a total of 320W power for any 802.3at or 802.3af compliant power device. It is an efficient and cost-effective option for wireless access points, surveillance cameras, IP phones and other PE-enabled devices without the need for cables or power lines. Compact and flexible, the TL-SG3424P is ideal for use with PoE variants for deploying wireless access points or IP-based network surveillance cameras for enterprise or small business networks.
Secure Networking
The JetStream Gigabit L2 Managed PoE Switch provides IP-MAC-Port-VID connectivity, port security, hurricane control and DHCP snooping to protect against broadcast storms, ARP attacks and more. Combines some common DoS attacks. You can prevent these attacks more easily than ever before. In addition, access control lists (ACL and L2-L4) feature restrict access to confidential network inputs by rejecting packages based on source and destination Mac address, IP address, TCP / UDP ports and VLAN ID. The adapter also supports 802.1X authentication, which is used to request some verification information before granting access to the network with the RADIUS server. Supports guest VLAN feature so that non-802.1X customers can access the specified network source.
Advanced QoS Features:
The converter implements advanced QoS policies to integrate audio, data and video services into one network. To ensure that audio and video are always clear, smooth and vibrant, the administrator can prioritize traffic in a variety of ways, including IP address, Mac address, TCP or UDP port number, etc. Coupled with audio VL converter support, audio applications work seamlessly.
Abundant Layer 2 Features:
To further implement layer 2 modifiers, TL-SG3424P supports full Layer 2 features, 802.1Q VLAN tag, port reflection, STP / RSTP / MSTP, link summary control protocol and 802.3x flow control functions. The switch also provides advanced network maintenance functions. For example, loopback detection, cable testing and IGMP snooping. The IGMP snooping switch cleverly transmits the multi-channel stream only to the appropriate subscribers, while the IGMP throttle and IGMP filter restricts each subscriber at the port level to prevent unauthorized access.
Enterprise Level Management Features:
TL-SG3424P is easy to use and manage. Supports many easy-to-use standard management features such as web-based graphical user interface (GUI) or standard command line interface (CLI) and managed traffic using SSL or SSH encryption. Support for SNMP (v1 / 2/3) and RMON support allows you to select a switch and send traps to unusual events. Additionally, with the integrated NDP / NTP protocol, the switch easily supports switching management via IP summation function.
Specifications:
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3at, IEEE 802.3af |
Interface | 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX) 4 Combo 100/1000Mbps SFP Slots 1 Console Port |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMF |
Fan Quantity | 3 |
Power Supply | 100~240VAC, 50/60Hz |
Power Consumption | Maximum (PoE on): 358.2W (220V/50Hz) Maximum (PoE off): 38.2W (220V/50Hz) |
PoE+ Ports(RJ45) | Standard: 802.3at/af compliant PoE+ Ports: 24 Ports Power Supply: 320W |
Dimensions ( W x D x H ) | 440 x 330 x 44 mm |
PERFORMANCE | |
---|---|
Bandwidth/Backplane | 48Gbps |
Packet Forwarding Rate | 35.7Mpps |
MAC Address Table | 8k |
Jumbo Frame | 10240 Bytes |
SOFTWARE FEATURES | |
---|---|
Quality of Service | Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
L2 Features | IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP LLDP, LLDP-Med BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control |
VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/ MAC/Protocol-based VLAN GARP/GVRP |
Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based |
Security | IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius, Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control |
IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
OTHERS | |
---|---|
Certification | FCC, RoHS |
Package Contents | Switch Power Cord Quick Installation Guide Resource CD Rackmount Kit Rubber Feet |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux. |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
