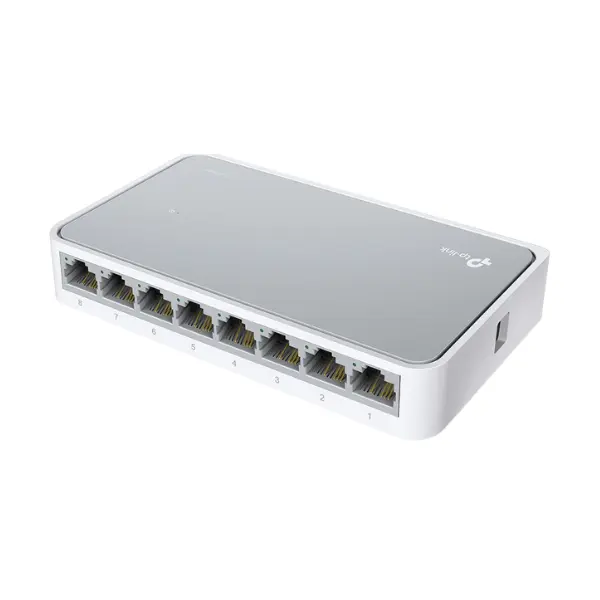

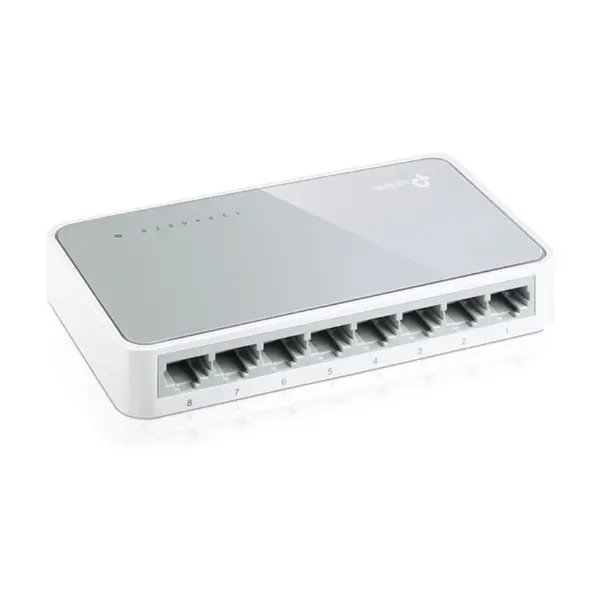

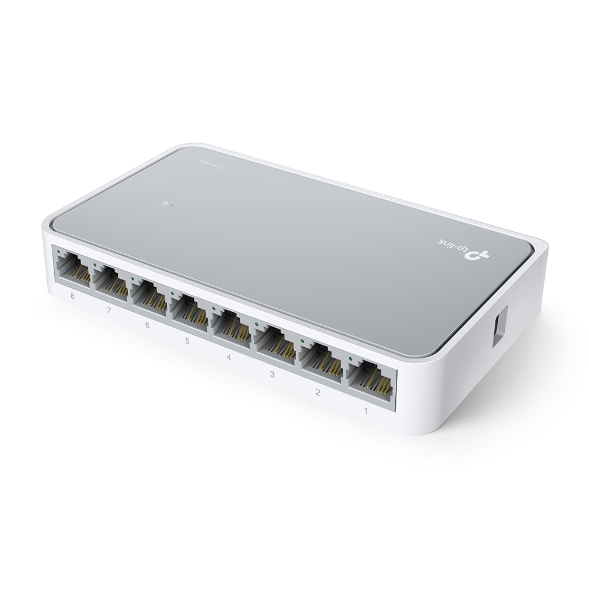

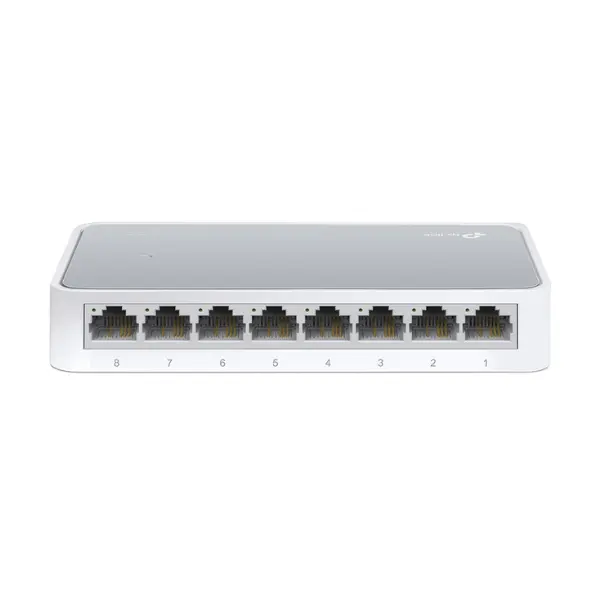

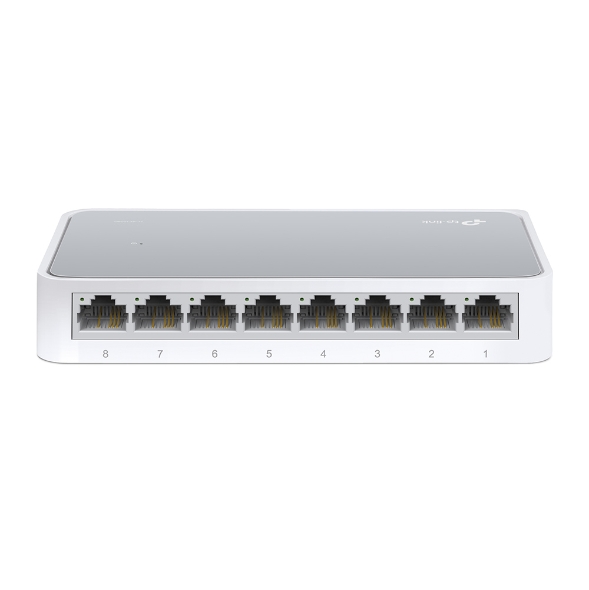

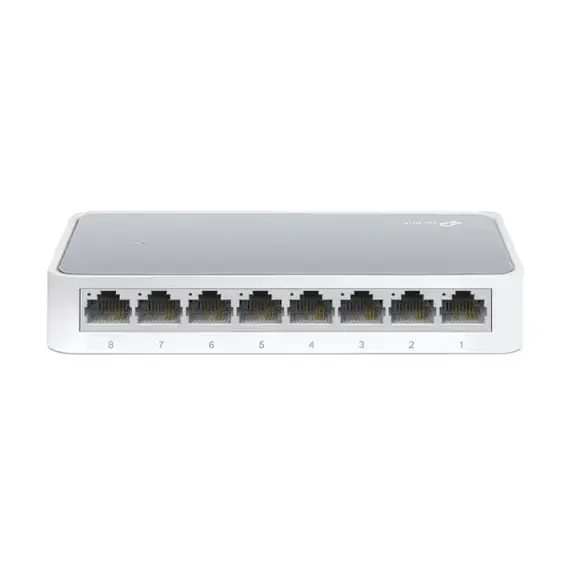

TP-Link TL-SF1008D 8-Port 10/100Mbps Desktop Switch
TP-Link TL-SF1008D
TP-Link TL-SF1008D 8-Port 10/100Mbps Desktop Switch
8 ports 10 / 100Mbps Auto Rate RJ45, Auto MDI / MDX support
The IEEE 802.3x flow controller ensures reliable data transmission
Plastic body, desktop design
Pin and play, no configuration required
What This Product Does:
The TL-SF1008D Fast Ethernet Switch is designed for SOHO (small office / home office) users. All 8 ports support automatic MDX, no need to worry about cable type, plug and play. In addition, with innovative energy saving technology, TL-SF1008D reduces energy consumption and makes it an environmentally friendly solution for your business network.
High Performance:
The TL-SF1008D Fast Ethernet Switch has auto Random at 8 RJ45 ports at 10/100 Mbps. All ports support automatic MDI / MDIX functionality, eliminating overhead cables or uplink ports. Unobtrusive converter architecture, TL-SF1008D transmission and wired large packet display for maximum output. Significant file transfer performance significantly improved with the 2K Jumbo platform. The IEEE 802.3x flow controller reduces back traffic for full duplex mode and half duplex mode and ensures reliable operation of the TL-SF1008D.
Easy to Use:
The automatic functions of this switch make it easy to install, install and troubleshoot. No configuration required. Automatic MDI / MDIX eliminates the need for cable switching. The auto-negotiation feature at each port adjusts the network device speed (10, 100 megabytes per second) and for compatibility and optimized performance.
Specifications:
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| Interface | 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | 100-240VAC, 50/60Hz (Output: 9VDC / 0.6A) |
| Buffer Size | 768Kb |
| Data Rates | 10/100Mbps at Half Duplex ; 20/200Mbps at Full Duplex |
| LED Indicator | Power Port network activity (on the network module) |
| Dimensions ( W x D x H ) | 135 × 79 × 23 mm |
| Max Power Consumption | 2W |
| Max Heat Dissipation | 7.0 BTU/h |
| SOFTWARE FEATURES | |
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology 802.3X Flow Control Back Pressure |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | 8-Port 10/100Mbps Desktop Switch Power Adapter User Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
