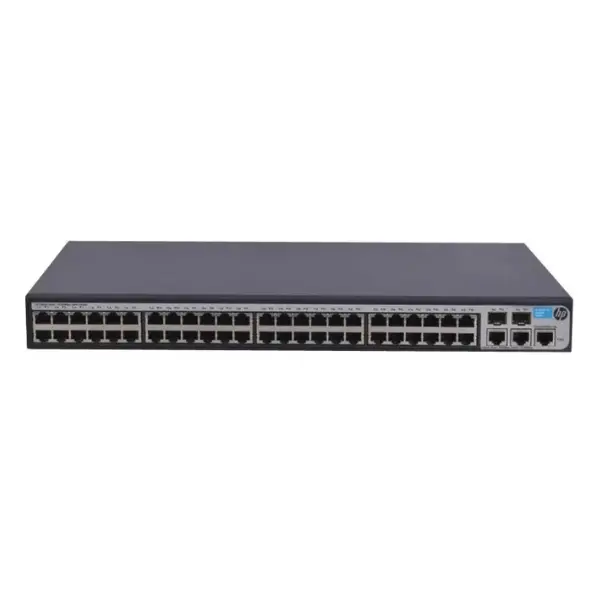

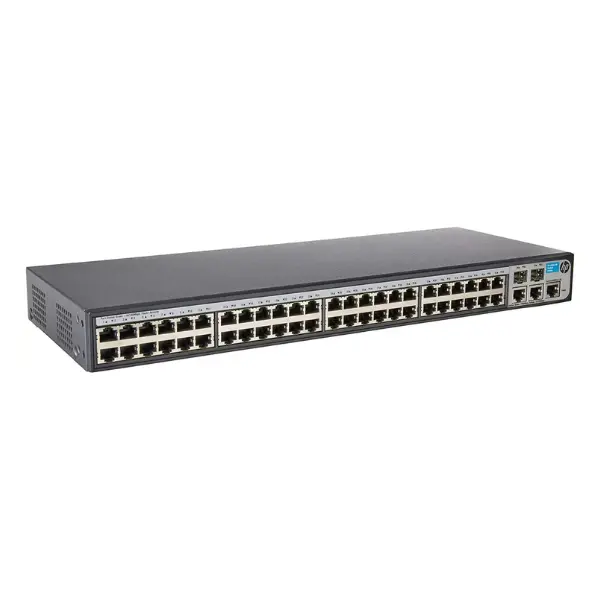

HP JG540A Smart Managed Switch, 48 Port Fast Ethernet + 2 Port Gigabit + 2 Port SFP

HP JG540A - Description

Smart Managed Switch, 48 Port Fast Ethernet + 2 Port Gigabit + 2 Port SFP

High-Performance Smart Switch for Expanding Networks:

HP JG540A Smart Managed Switch is part of the HPE OfficeConnect 1910 Series, designed to deliver enterprise-grade performance for small to medium-sized businesses. Equipped with 48 Fast Ethernet (10/100) ports, 2 Gigabit Ethernet ports, and 2 dedicated SFP fiber slots, this switch provides flexible connectivity options for growing networks. Ideal for organizations seeking a balance between cost and performance, it supports Layer 3 static routing, IPv4/IPv6 management, and enhanced traffic control through Access Control Lists (ACLs).

Robust Management and Security Features:

This smart switch offers an intuitive web-based interface, SNMP management, and limited CLI access, making network setup and monitoring straightforward even for less experienced IT teams. It supports IEEE 802.1X network login, ARP and DoS attack protection, and STP root guard, ensuring secure and stable network operation. Enhanced with three levels of Spanning Tree Protocol (STP, RSTP, MSTP), the HP JG540A ensures efficient loop prevention and network redundancy for critical business operations.

Optimized for Speed, Reliability, and Scalability:

With a switching capacity of 17.6 Gb/s and throughput of up to 13.1 Mpps, the HP JG540A delivers smooth data flow even under heavy traffic. The switch is powered by a 500 MHz MIPS processor, 128 MB of RAM, and 32 MB flash memory, supporting fast packet processing and buffering. Designed for efficiency, it maintains low latencies (<5μs) across both 100Mb and 1000Mb ports, meeting the performance needs of VoIP, video streaming, and cloud applications.

Durable Design with Flexible Installation:

Built to fit in standard 19-inch racks, the compact and durable chassis measures 4.4 x 44 x 17.3 cm and weighs just 2.3 kg, allowing easy installation in diverse environments. It operates in temperatures from 0°C to 40°C and supports wide humidity ranges, ensuring reliable performance in demanding conditions. With a low maximum power draw of just 22W, this switch is energy-efficient and suitable for extended deployment across branch offices, schools, or retail sites.
