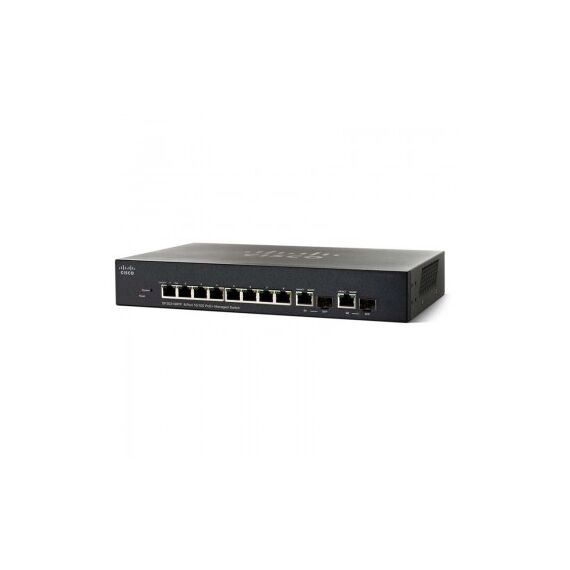

CISCO SWITCH 8 PORT 10/100 POWER BUDGET.2GIGABIT COPPER+SFP COMPO 62W / SF352-08P
Please sign in so that we can notify you about a reply
Brand:
Cisco
CISCO SWITCH 8 PORT 10/100 POWER BUDGET.2GIGABIT COPPER+SFP COMPO 62W / SF352-08P
SF352-08P Overview
- 8 10/100 ports with 62W power budget - 2 Gigabit copper/SFP combo
ETHERNET PORT CONFIGURATION
8-port 10/100M, 2 x 1G uplinks
POWER OVER ETHERNET
24 PoE ports with 62W total power budget
CONFIGURATION & CONTROL
Easy-to-use GUI interface and CLI, FindIT, PnP, Auto Smartports
L2+/L3 FEATURES
Static routing, VLANs, QoS, Voice/Guest VLAN, GVRP, MSTP, and IGMP Snooping
Product Specifications
| General | |
|---|---|
| Device Type | Switch - 8 ports - L3 - managed |
| Enclosure Type | Desktop 1U |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 62 W |
| Performance | Switching capacity: 5.6 Gbps | Forwarding performance (64-byte packet size): 4.17 Mpps |
| Capacity | Active VLANs: 4096 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IPv4 routing, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 3 switching, layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, fanless, 1.5MB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Link/activity |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 8 x 100Base-TX RJ-45 PoE+ - 62 W | 2 x 1000Base-T RJ-45/SFP | 1 x console RJ-45 management | 1 x USB management |
| Power | |
|---|---|
| Power Device | External power adapter |
| Power Provided | 2 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
|---|---|
| Cables Included | 1 x power cable | 1 x console cable |
| MTBF | 530,716 hours |
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| Localization | North America |
| Dimensions & Weight | |
|---|---|
| Width | 11 in |
| Depth | 6.7 in |
| Height | 1.7 in |
| Weight | 2.56 lbs |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day | Technical support - web support - 1 year | Technical support - phone consulting - 1 year |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
