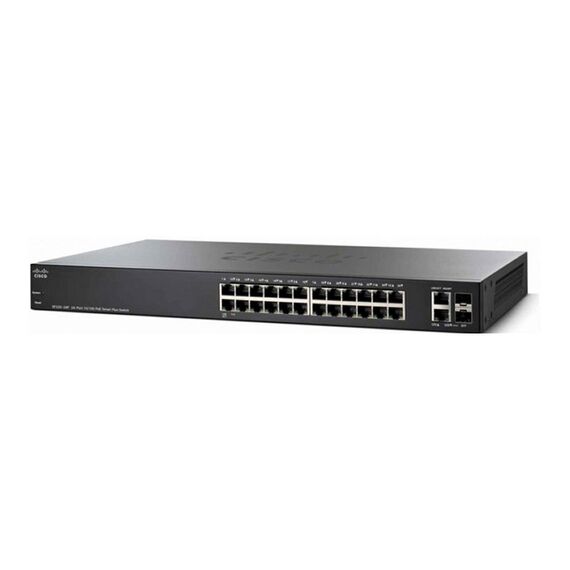

Cisco SF220-24P 24 Port Smart Managed Fast Ethernet PoE+ Switch w/ 2x SFP Combo Ports (180W) Switch
Cisco, SF220-24P, 24 Port, Smart Managed, Fast Ethernet, PoE+ Switch, w/ 2x SFP Combo Ports, (180W), Switch,
Simple, secure, and smart business network at affordable prices
In today’s fast-paced business environment, business owners are becoming more selective in their IT investments, including the network infrastructure. The network is a critical platform for business productivity, and a fast, reliable, and secure network is more important than ever to help you stay ahead of the competition and grow your business. With a limited budget, getting the most value for your money becomes especially important.
For businesses requiring high performance, security, and manageability from network switches, fully managed switches are an excellent choice. However, they typically come with high price tags. Smart switches provide the right level of network features and capabilities for growing businesses at lower prices, so you have more dollars to invest where they’re most needed.
Product code | SF220-24P |
Device type | Switch - 24 ports |
Enclosure type | Desktop, rack-mountable - 1U |
Ports | 24 x 10/100 + 2 x combo Gigabit SFP |
Power over Ethernet (PoE) | PoE and PoE+ |
Performance | Switching capacity: 6.55 Mpps Forwarding performance (64-byte packet size): 8.8 Gbps |
MAC address table size | 8192 entries |
Capacity | 256 active VLANs |
Remote management protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Jumbo frame support | 9 KB |
Authentication method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, IGMP Querier, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, IPv6 support, SNTP support, STP support, RSTP, MSTP, TFTP support, HTTPS, QoS, acces control list, QinQ VLAN, guest VLAN, auto voice VLAN, GVRP/GARP, BPDU Guard, SSH, SSL, Jumbo Frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol |
Compliant standards | IEEE 802.3, 802.3u, 802.3z, 802.3az Energy Efficient Ethernet, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1x, 802.1w RSTP, IEEE 802.1s MSTP, 802.3af PoE, 802.3at PoE |
RAM | 128 MB |
Flash memory | 32 MB |
Status indicators | Link activity, port transmission speed, system, PoE |
Interfaces | 24 x 10BASE-T/100BASE-TX - RJ-45 2 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 2 x SFP (mini-GBIC) |
Power device | Power supply - internal |
Voltage required | 100-240 V, 50-60 Hz, Internal |
Width | 17.3 in (440 mm) |
Depth | 9.9 in (250 mm) |
Height | 1.7 in (44 mm) |
Weight | 8.02 lb (3.64 kg) |
Rack mounting kit | Included |
Compliant standards | UL 60950, FCC Part 15 A, CSA 22.2 |
Localization | English, Chinese (simplified) |
Service and support | Limited lifetime warranty |
Service and support details | Limited warranty - lifetime ? Technical support - web support for 1 year ? Technical support - phone consulting for 1 year |
Minimum operating temperature | 32°F (0°C) |
Maximum operating temperature | 122°F (50°C) |
Humidity range operating | 10% to 90% (relative, non-condensing) |
Minimum storage temperature | -4°F (-20°C) |
Maximum storage temperature | 158°F (70°C) |
Humidity range storage | 10% to 90% (relative, non-condensing) |
