Ruijie Reyee RG-RAP2260(E)

Wi-Fi 6 Dual Band Ceiling Mount Access Point

Ruijie Reyee RG-RAP2260(E)  Series consists of high-performance Wi-Fi 6 access points (APs) designed for expansive indoor coverage. These devices support 802.3at Power over Ethernet (PoE) and a 12V DC local power supply. Their dual Ethernet port design allows for the easy integration of third-party devices to accommodate various networking scenarios. Compliant with the 802.11a/b/g/n/ac/ax Wi-Fi protocols, they feature built-in omnidirectional antennas.

The Ruijie RG-RAP2260(E) model supports concurrent dual-band operation and MU-MIMO technology, incorporating advanced quad-stream technology. This enables it to deliver high-speed wireless access of 800Mbps at 2.4GHz, 2402Mbps at 5GHz, and up to 3202Mbps per access point. One of the Ethernet ports has been upgraded to a multi-gigabit Ethernet (2.5GE) port to overcome transmission performance bottlenecks.

With its industrial design, distinctive edges, and breathing light, the product is easily recognizable. The non-directional installation design and new mounting kits allow for versatile installation options, including desktop, ceiling, wall, and pole mounting. This enhances installation flexibility, simplifies the process, reduces difficulty, and significantly improves the overall installation experience.

The Ruijie RG-RAP2260 Series supports Ruijie's self-developed Self-Organizing Network feature. Using the Ruijie Cloud app, users can quickly deploy and configure devices, manage operations, and maintain the entire network remotely, significantly lowering equipment, labor, and time costs during wireless network construction.

Users can manage the devices comprehensively, either locally or remotely, via the Ruijie Cloud app, equipment EWEB management, or the Ruijie Cloud platform. Additionally, users can share network access with third parties for hosting and collaborative management, leading to a simpler, more user-friendly, secure, and convenient enterprise network operation and maintenance experience.

High-Speed Dual-band Wi-Fi:

The device access point wifi 6 supports dual-band communication on both 2.4GHz and 5GHz frequencies. The 5GHz band offers less interference, broader channels, and faster speeds, providing users with an enhanced wireless experience.

The Ruijie Reyee RG-RAP2260(E) model delivers an access rate of 800Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band, for a combined total of 3202Mbps per access point.

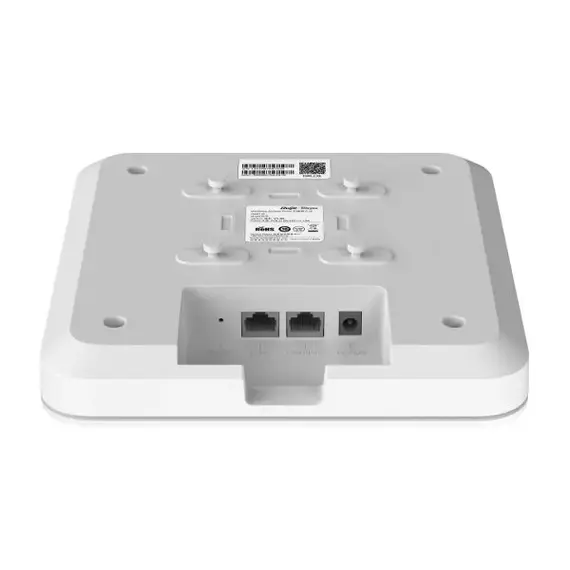

Dual LAN Ports Design:

The device wifi access point features a dual LAN port design, making it easy and quick to support the integration of third-party devices like cameras, time and attendance systems, even in complex networking setups.

Support Routing and AP Mode:

The device access point wifi 6 supports both AP and router modes. It can either be used in a network with multiple APs or function as a standalone wireless router. This flexibility allows for more versatile configurations, a wider range of application features, and suitability for various scenarios.

Support Layer 3 roaming:

The device wifi access point supports Layer 3 roaming in complex Layer 3 networks, allowing users to move between different networks without any service interruption, ensuring seamless connectivity.

Stronger and More Stable Signals:

An aluminum alloy antenna reflector is included to block interference signals and concentrate effective signals, resulting in stronger signal transmission and improved receiving sensitivity.

The device uses FBAR technology to filter out most interference from sources like cell towers, microwave ovens, and Bluetooth devices, access point wifi 6 ensuring cleaner wireless signals, faster transmission speeds, and more stable connection quality.

Robust Casing:

The AP casing is made from strong, flame-retardant material, offering impact resistance that is 5 times greater than standard ABS plastic. Its tensile and flexural strengths are increased by 30%, making it highly durable and resistant to damage. Users can feel confident during both use and maintenance.

Simple Installation:

The device Ruijie Reyee RG-RAP2260(E) supports multiple installation options, including placement on a desktop, ceiling, wall, or pole. With a non-directional installation design, it can be quickly and efficiently installed in one step.

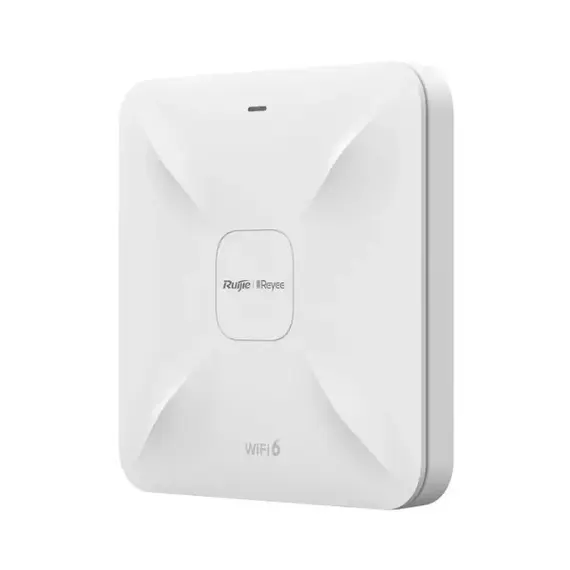

Industrial Design:

The device access point features an industrial design with distinctive edges and a breathing light, making it more visually recognizable.
