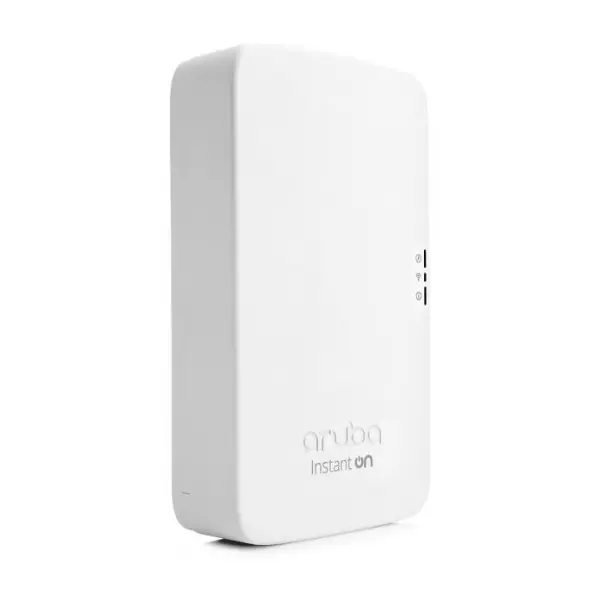

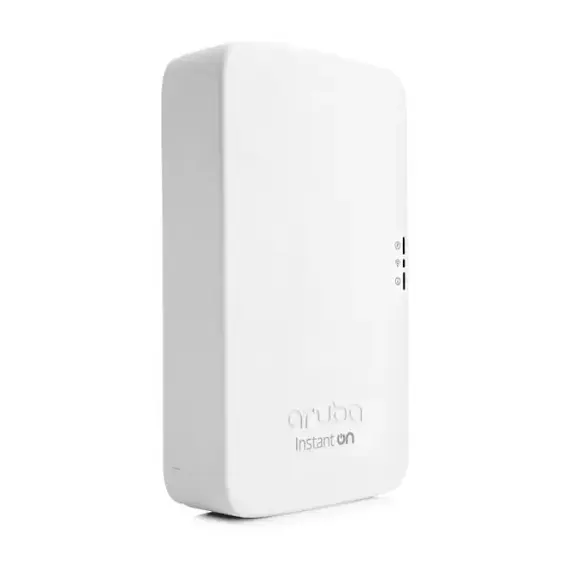

Aruba R2X17A Desk/Wall Access Point

Aruba R2X17A - Description

Desk/Wall Access Point

Reliable Wi-Fi for Small Business Needs:

Aruba R2X17A (Instant On AP11D) Desk/Wall Access Point is a smart, affordable Wi-Fi solution built specifically for small businesses. Whether you run a boutique, cafe, law office, or clinic, reliable Wi-Fi is essential for daily operations, customer engagement, and overall productivity. Aruba’s Instant On R2X17A makes it easy to stay connected with seamless, high-speed wireless coverage that works straight out of the box. Designed with the latest technologies, it delivers strong performance without complexity.

High-Speed Performance with Wi-Fi 5 and Smart Mesh:

This dual-radio access point supports 802.11ac Wave 2 (Wi-Fi 5) with 2x2:2 MU-MIMO, offering speeds up to 867 Mbps on 5GHz and 300 Mbps on 2.4GHz. Smart Mesh technology ensures consistent coverage in every corner of your space, even across multiple rooms or floors. Built-in directional antennas (up to 6.2dBi gain) further enhance signal reliability. With support for WPA2/WPA3 and guest network segmentation, the AP11D ensures both speed and security.

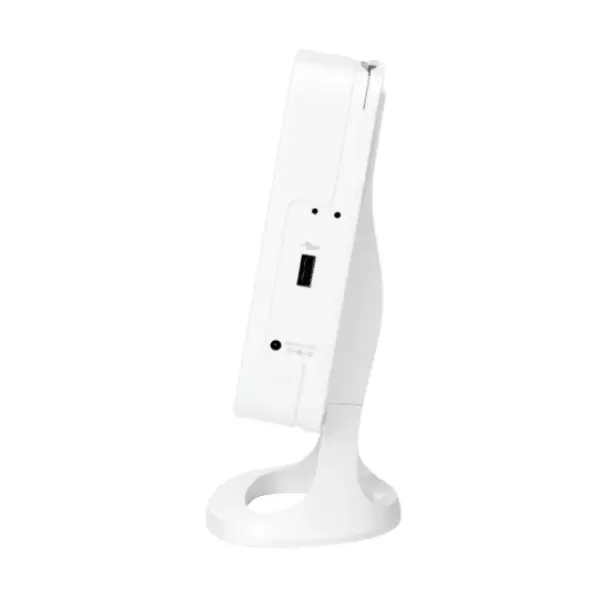

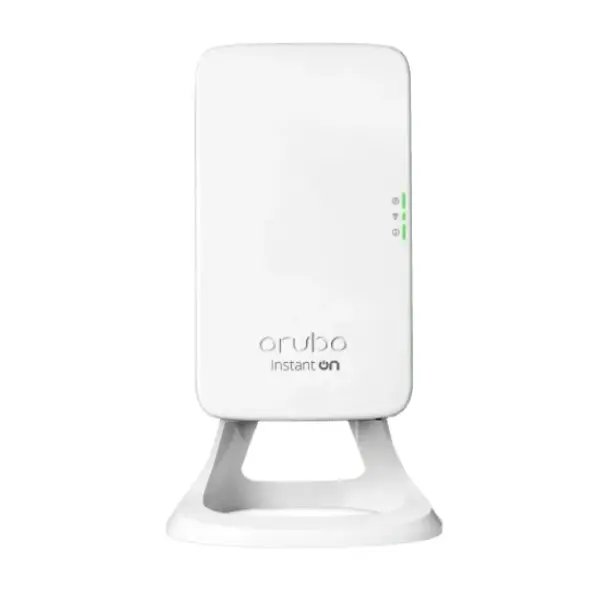

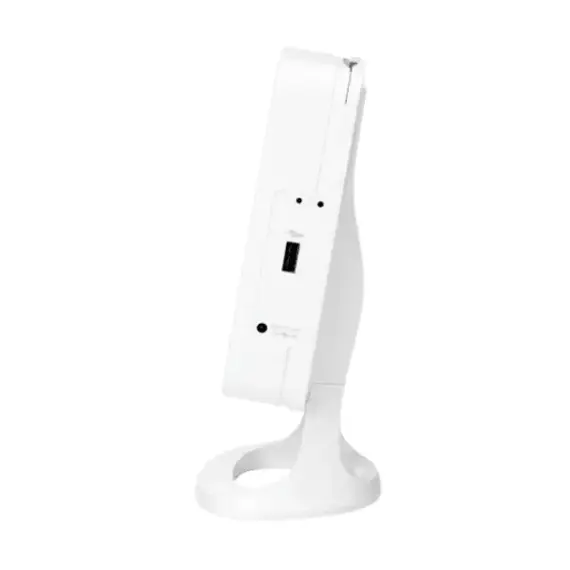

Flexible Mounting and Power Options:

The R2X17A includes both desk and wall mounting kits, making it ideal for flexible deployments in various environments. It features one uplink Gigabit port with PoE-in (802.3af/at) and three downlink ports—one of which provides PoE-out (on E3). You can power it via PoE or a 48V DC adapter (sold separately), with max power usage up to 25.3W when fully utilized.

Easy Management via App or Cloud:

With the Aruba Instant On mobile app and cloud portal, setup and remote management are quick and intuitive. Create guest networks, set bandwidth limits, and block devices—all from your phone or browser. Multilingual support and an intuitive interface simplify ongoing administration.

Built for Durability and Long-Term Support:

The R2X17A operates in temperatures from 0° to 40°C and carries a mean time between failure (MTBF) of over 1 million hours. It holds industry certifications such as UL 2043 and EN 60601, making it suitable even for medical and public installations. Aruba includes a 1-year warranty, 90 days of 24/7 phone support, and lifetime community access.
