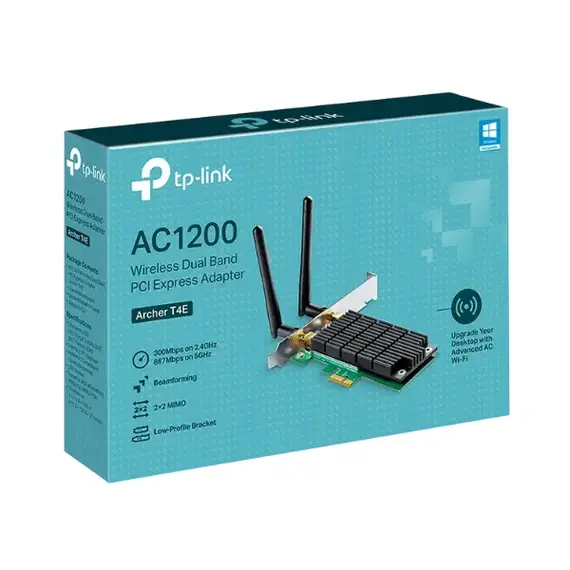

TP-Link Archer T4E AC1200Wireless Dual Band PCI Express Adapter
Easy installation. Connect the adapter to an empty PCI-E slot to upgrade your desktop computer. High-speed Wi-Fi-Wi-Fi speeds up to 1200 Mbps (867 Mbps in the 5 GHz band, 300 Mbps in the 2.4 GHz band) * 3x faster than dual-band 802.11ac-802.11n, ideal for high-density networks Beamforming-The Wi-Fi signal is amplified in the specific direction in which the client is located. Mounts of various sizes-Both low and full size brackets are available to fit all computers. 2 x2 MIMO-Users have easy access to high-speed wireless connections Wide wireless range-Two external antennas increase Wi-Fi coverage and improve stability.
802.11ac - Dual Band Wi-Fi for Faster Connections:
TP-Link Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, achieving three times the transmission speed of IEEE 802.11n. Use the 2.4GHz network to send email, surf the web, and free up high-speed 5GHz bandwidth for gaming, HD streaming, and other bandwidth-intensive applications.
Greater Coverage with Beamforming:
Beamforming technology intelligently routes Wi-Fi signals to connected devices for stable connections and longer distances.
Heat Sink for Ultimate Stability:
The heat sink helps dissipate the heat energy generated by the inverter, which improves stability. In addition, low temperatures help extend the life of the product.
External Antennas for More Targeted signal:
The two external antennas use the latest wireless technology to provide stable connectivity and extended coverage.
Easy Setup:
You can easily install the TP-Link Archer T4E program using the intuitive utility on the included CD.
Advanced Security:
WAP, WPA / WPA2, and WPA-PSK / WPA2-PSK encryption standards protect your data from hackers
Operating System:
Supports Windows 10/8.1/8/7/XP(32/64 bit)
Low-Profile Bracket:
In addition to the standard stand, there is also a compact stand for the computer case of the mini tower.
Specifications:
HARDWARE FEATURES | |
---|---|
Interface | PCI Express |
Dimensions ( W x D x H ) | 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm) |
Antenna Type | 2 Dual Band Detachable Antennas |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/g/b 2.4 GHz |
Signal Rate | 5 GHz 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11n: TP-Link Archer T4E Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
Reception Sensitivity | 5 GHz : 11ac HT80: -59.5 dBm 11ac HT40: -63 dBm 11ac HT20: -68 dBm 11n HT40: -70 dBm 11n HT20: -73 dBm 11a 54Mbps: -76 dBm 11a 6Mbps: -92 dBm 2.4GHz : 11n HT40: -67.5 dBm 11n HT20: -70 dBm 11g 54Mbps: -72 dBm 11b 11Mbps: -86.5 dBm |
Transmit Power | 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP) |
Wireless Modes | Infrastructure mode |
Wireless Security | Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x |
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
