QM2 Expansion Card QM2-4P-384
Please sign in so that we can notify you about a reply
Supports up to two M.2 SSDs

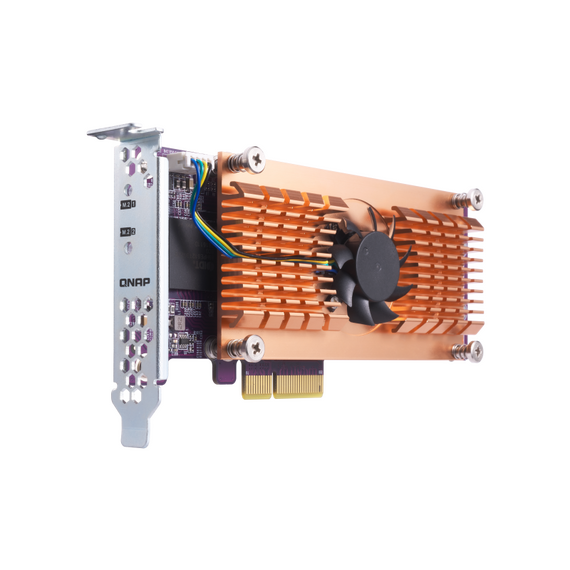

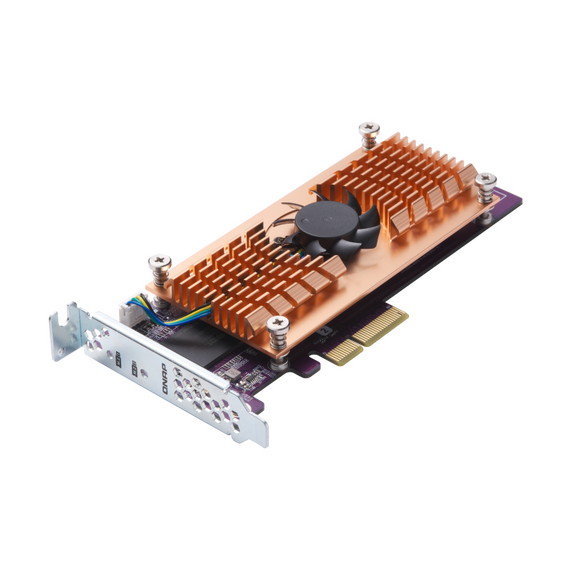

 QM2-2S (EOL) | Dual M.2 22110/2280 SATA SSD expansion card Connector: 2 x M.2 22110 or 2280 SATA SSD slots PCIe and Lanes: PCIe Gen2 x 2 Bracket: Low-profile (default), Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 157 x 68.9 x 20.6 mm; 6.18 x 2.71 x 0.81 inch Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1) | Architecture Diagram |

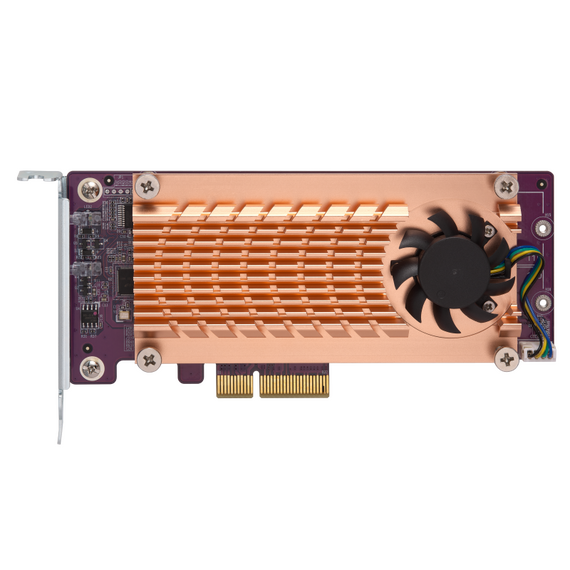

 QM2-2S-220A | Dual M.2 22110/2280 SATA SSD expansion card Connector: 2 x M.2 22110 or 2280 SATA SSD slots PCIe and Lanes: PCIe Gen2 x 2 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 147.15 x 68.9 x 20.6 mm; 5.79 x 2.71 x 0.81 inch | Architecture Diagram |

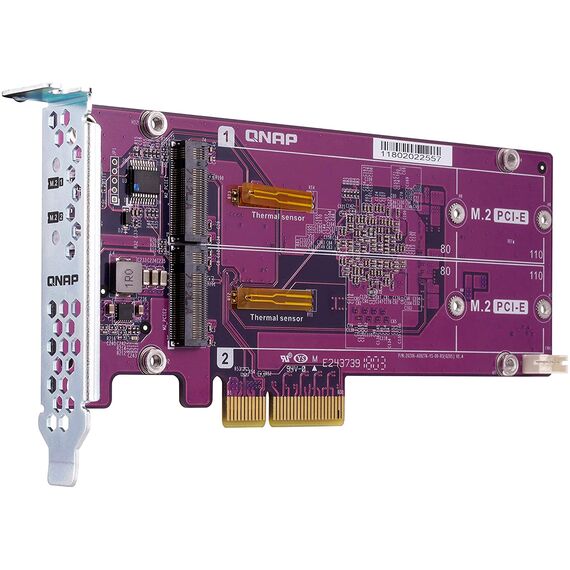

 QM2-2P (EOL) | Dual M.2 22110/2280 PCIe NVMe SSD expansion card Connector: 2 x M.2 22110 or 2280 PCIe (Gen2 x 4) NVMe SSD slots PCIe and Lanes: PCIe Gen2 x 4 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 157 x 68.9 x 20.6 mm; 6.18 x 2.71 x 0.81 inch Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1). | Architecture Diagram |
 QM2-2P-244A | Dual M.2 22110/2280 PCIe NVMe SSD expansion card Connector: 2 x M.2 22110 or 2280 PCIe (Gen2 x 4) NVMe SSD slots PCIe and Lanes: PCIe Gen2 x 4 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 147.15 x 68.9 x 20.6 mm; 5.79 x 2.71 x 0.81 inch | Architecture Diagram |
 QM2-2P-344 | Dual M.2 22110/2280 PCIe NVMe SSD expansion card Connector: 2 x M.2 22110 or 2280 PCIe (Gen3 x 4) NVMe SSD slots PCIe and Lanes: PCIe Gen3 x 4 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 147.15 x 68.9 x 20.6 mm; 5.79 x 2.71 x 0.81 inch | Architecture Diagram |
 QM2-2P-384 | Dual M.2 22110/2280 PCIe NVMe SSD expansion card Connector: 2 x M.2 22110 or 2280 PCIe (Gen3 x 4) NVMe SSD slots PCIe and Lanes: PCIe Gen3 x 8 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 147.15 x 68.9 x 20.6 mm; 5.79 x 2.71 x 0.81 inch | Architecture Diagram |
Supports up to four M.2 SSDs
 QM2-4S-240 | Quad M.2 2280 SATA SSD expansion card Connector: 4 x M.2 2280 SATA SSD slots PCIe and Lanes: PCIe Gen2 x 4 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 204.95 x 68.9 x 20.6 mm; 8.07 x 2.71 x 0.81 inch Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1). | Architecture Diagram |
 QM2-4P-284 | Quad M.2 2280 PCIe NVMe SSD expansion card Connector: 4 x M.2 2280 PCIe (Gen2 x 4) NVMe SSD slots PCIe and Lanes: PCIe Gen2 x 8 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 204.95 x 68.9 x 20.6 mm; 8.07 x 2.71 x 0.81 inch Note: TS-x77, TVS-x82(T) only supports the System Zone PCIe slot (PCIe slot 1) | Architecture Diagram |
 QM2-4P-342 | Quad M.2 2280 PCIe NVMe SSD expansion card Connector: 4 x M.2 2280 PCIe (Gen3 x 2) NVMe SSD slots PCIe and Lanes: PCIe Gen3 x 4 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 204.95 x 68.9 x 20.6 mm; 8.07 x 2.71 x 0.81 inch Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1). | Architecture Diagram |
 QM2-4P-384 | Quad M.2 2280 PCIe NVMe SSD expansion card Connector: 4 x M.2 2280 PCIe (Gen3 x 4) NVMe SSD slots PCIe and Lanes: PCIe Gen3 x 8 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 204.95 x 68.9 x 20.6 mm; 8.07 x 2.71 x 0.81 inch Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1). | Architecture Diagram |
