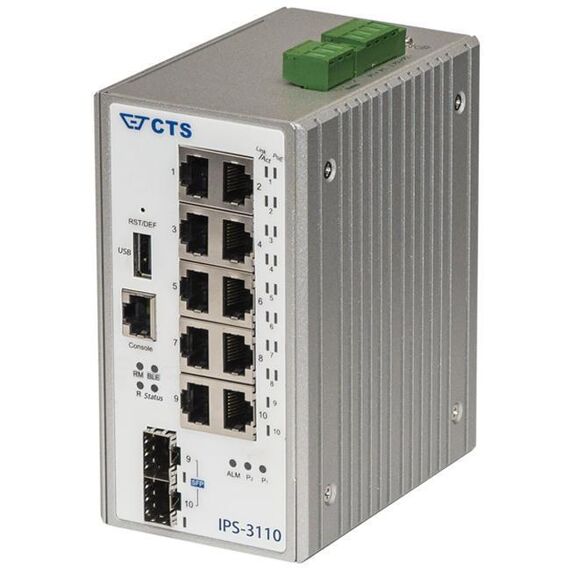

CTS 10 Port Managed Industrial PoE+ Switch with 2-Port Combo / IPS-3110
Please sign in so that we can notify you about a reply
Brand:
CTS
SPECIFICATION
- Interface
- LAN :
- - 8 x 10/100/1000Mbps RJ-45, PoE/PSE
- WAN :
- - 2 x Combo Ports
- (10/100/1000 RJ-45 + 100/1000 SFP Slot)
- - USB : 1 x USB2.0 (Host Type A)
- - Console : 1 x RS-232 (RJ-45)
- Standards
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX/FX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3az EEE
- IEEE 802.3z 1000Base-X
- IEEE 802.1p Priority
- IEEE 802.1q Tag VLAN
- IEEE 802.3x Flow Control
- IEEE 802.3ad Link Aggregation
- IEEE 802.1D/IEEE802.1w STP/RSTP
- IEEE 802.1x Port based Network Access Control
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet Enhancements
- H/W Specification
- Store and Forward Switching Mechanism
- Auto Crossover for MDI/MDI-X in TP Port
- Auto Negotiation in TP Port
- Half/Full Duplex Mode Operation
- Jumbo Frame up to : 9K Bytes
- MAC Address Table : 16K
- Non-Blocking Switching Fabric : 20Gbps
- VLAN ID : 4K
- 1 Digital Output(Alarm Relay)
- Forward / Filter Rate
- 10M : 14,880/14,880pps
- 100M : 148,800/148,800pps
- 1000M : 1,488,000/1,488,000pps
- LED
- P1, P2 ,ALM, RM, R , Status,
- LAN, F/O
- Switch Feature
- IEEE 802.1q Tag Based VLAN
- IGMP Snooping v1/v2
- QoS Based on P-bit, VLAN, DSCP
- Broadcast Storm Control
- Port Mirroring
- Port Trunking
- Loop Detection
- Time Range
- Traffic Management
- QoS, SPQ,WRR
- Network Management
- Telnet CLI
- SNMP v1/v2c/v3
- DHCP Client
- FTP/HTTP/TFTP/USB Firmware Upgrade
- Dual Image
- SNTP
- SSHv2
- Eventlog
- Syslog
- Network Redundancy
- STP/RSTP, CTS Fast Ring
- Installation Type
- DIN-Rail Mount , Wall Mount (Optional)
- Power Requirement
- DC Input :
- - Redundant Input Terminals
- Input Voltage :
- - DC : 48~55VDC
- Power Consumption :
- - DC : 255W
- (8 Ports PoE Full Loading)
- Environmental Condition
- Operation: -40°C ~ 75°C
- Storage Temperature: -40°C ~ 85°C
- Humidity: 5% ~ 95%, Non-Condensingg
- Dimension & Weight
- Size: 73 x 110 x 135 mm (WxDxH)
- Weight: 0.92Kg
- Housing : Aluminum, IP40
- EMC/Safety
- FCC Class A, CE
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
