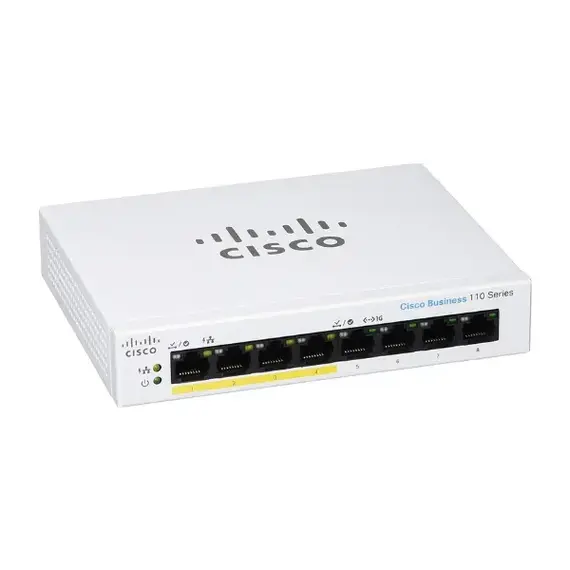

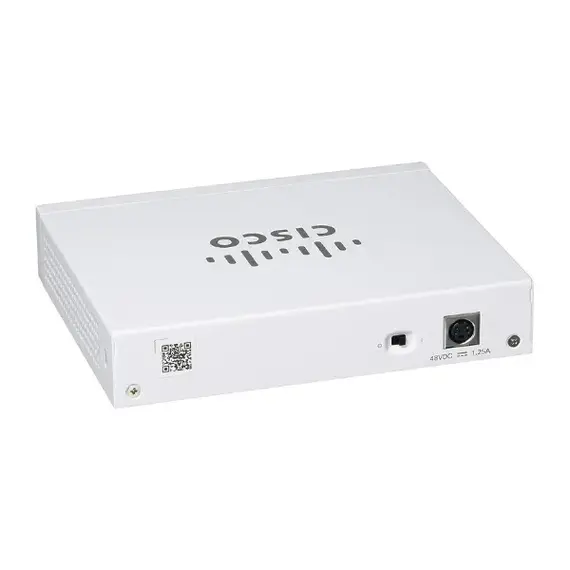

Cisco CBS110-8PP-D 8 Ports 10/100/1000 4 Support PoE with 32W Bower Budget Unmanaged Switch
Cisco
CBS110-8PP-D
8 Ports 10/100/1000
4 Support PoE with 32W Bower Budget
Unmanaged Switch
Cisco Business 110 Series Unmanaged Switches, part of the Cisco Business networking portfolio, are a family of affordable switches that provide Gigabit Ethernet connectivity for your small business network. Available in desktop and rack-mount models, these switches are designed to suit any small business with basic network needs and are optimized for power efficiency. They provide robust network connectivity your business demands, as well as added reliability with advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes.
Product Details:
High performance:
Cisco Business 110 Series switches deliver the performance you need to run your business applications, including bandwidth-intensive cloud applications and video services, and to avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
Reduced energy costs:
Cisco Business 110 Series switches are designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
Peace of mind:
Cisco Business 110 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.
Specifications:
Capacity in millions of packets per second (mpps) (64-byte packets)
11.9 mpps
Switching capacity in gigabits per second (Gbps)
16 Gbps
Total system ports
8 Gigabit Ethernet
RJ-45 ports
8 Gigabit Ethernet
Power dedicated to PoE
32W
Number of ports that support PoE
4
Packet Buffer
2 Mbit
Unit dimensions (W x D x H)
160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in)
General
Head-of-line (HOL) blocking
HOL blocking prevention
MAC table
2K addresses for CBS110-5T-D
8K addresses for all other models
Jumbo frame
9216 bytes
Quality of Service (QoS)
802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection
Helps discover loops in the network to avoid broadcast storms
Cable diagnostics
Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
LEDs
Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE.
*if present
Cabling type
Category 5e or better
Mounting options
Desktop, wall-mount or rack mount
Physical security lock
Kensington lock slot
Flash
16 MB for CBS110-16T, CBS110-16PP
8 MB for CBS110-24T, CBS110-24PP
CPU
400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
CPU memory
128 MB for CBS110-16T, CBS110-16PP
64 MB for CBS110-24T, CBS110-24PP
Supported SFP modules
SKU
Media
Speed
Maximum distance
MGBSX1
Multimode fiber
1000 Mbps
500 m
MGBLX1
Single-mode fiber
1000 Mbps
10 km
MGBLH1
Single-mode fiber
1000 Mbps
40 km
MGBT1
UTP cat 5e
1000 Mbps
100 m
Environmental
Power
CBS110-5T-D, CBS110-8T-D: DC 12V, 1.0A
CBS110-8PP-D: DC 48V, 1.25A
CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP: 110-240VAC, 50-60 Hz, internal, universal
Green (power efficiency)
Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
*select models
Operating temperature
32° to 104°F (0° to 40°C)
Storage temperature
–4° to 158°F (–20° to 70°C)
Operating humidity
10% to 90%, relative, noncondensing
Storage humidity
5% to 90%, relative, noncondensing
Warranty
Limited lifetime
