D-Link NCB-C6UGRYR1-1

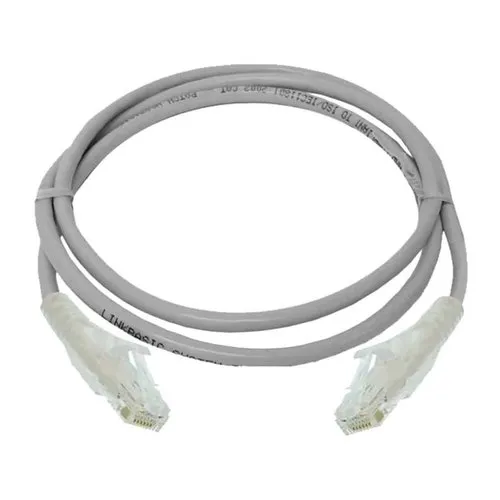

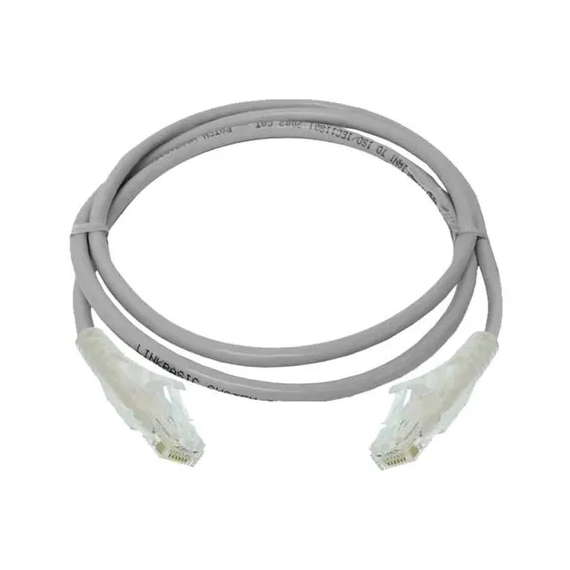

D-Link NCB-C6UGRYR1-1 Cat6 UTP1 Meter Patch Cord

D-Link NCB-C6UGRYR1-1 Rigid cables are the best twisted-pair cables on the market for local area network (LAN) data transmission. These cables exceed TIA/EIA-568B.2/TIA/EIA-568C.2 and IEC 60603-7-4 performance requirements.

As the popularity of video and multimedia streaming over local area networks increases, users need faster data transfer and reduced latency. D-Link cables are ideal for simple, cost-effective and high-speed data transmission. NCB-C6UGRYR1-1 supports a high signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.

SPECIFICATIONS of Cat6 UTP Patch Cord:

4 Pairs Unshielded Twisted Pair (UTP)
Metal Conductor: Bare Copper
Color code: Grey
Conductor: 24 AWG
Insulation material: HD-PE
Sheath material: PVC UL94V-0
Temperature resistance: at least 60°C (temperature limit)
Flame Property: Target
A static flame test is a test for flammable wires. followed by VW-1 (UL); FT-1 (CSA) standards.

MODULAR CONNECTOR/PLUG:

RJ-45 8P for color clarity.
 Gold Plated: 30U"
Contact blade of Cat6 UTP Patch Cord: phosphor bronze
Temperature range: -10~80°C
Insulator voltage resistance: AC 500V
Insulation Resistance: 35mΩ (Max)
Durability: 750 related cycles
Load capacity between cable and plug: 20 pounds (89 newtons) (min)
UL Enclosures: 250V AC, 2A (Maximum)
Polycarbonate (PC) UL94-V-0

APPLICATION:

10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
100VG-AnyLAN (IEEE802.12)
Wide video 550 MHz
Voice, T1, ISDN
155/622 Mbps from ATM
Power over Ethernet (POE)

APPROVAL / CERTIFICATION:

UL 444 (for copper wire)
UL 758 / Style 2835
UL 1581 (Test Standard)
Tested to TIA/EIA-568C.2
Standards ETL, CUL Listed, RoHs
