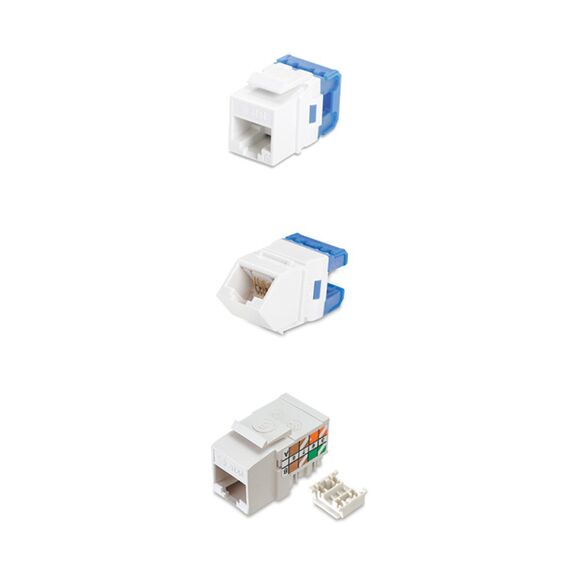

AT&T 15A06NV008A-WB61 CAT6 180° Keystone Jack

AT&T 15A06NV008A-WB61 - Descrption

CAT6 180° Keystone Jack

High-Performance Category 6 Connectivity:

The AT&T 15A06NV008A-WB61 CAT6 180° Keystone Jack is designed to deliver stable and efficient network performance in structured cabling systems. Built as an unshielded 8P8C RJ45 punch-down connector, this keystone jack supports Category 6 installations with a frequency range of up to 250 MHz. It ensures dependable data transmission for modern Ethernet networks used in offices, data centers, and commercial environments. The jack features a universal wiring scheme that supports both T568A and T568B pin assignments, making installation flexible for different networking standards.

Durable Design and Professional Installation:

Engineered with a high-impact flame-retardant housing (UL94 V-0), this keystone jack provides durability and safety in demanding environments. The contacts are plated with 50 micro-inch gold to enhance conductivity and reduce signal loss over time. The 180-degree straight orientation simplifies cable management in patch panels and wall plates, while the 110 IDC termination blocks enable quick and secure connections. It is compatible with 22–26 AWG solid or stranded conductors and can handle up to 20 cable re-terminations, making it suitable for professional installers and network technicians.

Standards Compliance and Network Reliability:

This CAT6 keystone jack meets multiple international standards including IEC 60603-7-4, EN 60603-7-4, and ANSI/TIA-568.2-D, ensuring consistent performance and interoperability in structured cabling systems. With a maximum insertion cycle of 750 times and a recommended operating temperature range from -20°C to +60°C, it is built for long-term network reliability. Additionally, it complies with the EU RoHS directive, confirming environmentally responsible manufacturing.
