Brand :
Vertiv
U.P.S Specifications
Part Number
LI32121CT00
U.P.S Configuration
Tower
Rating (VA/Watts)
800 VA / 480 W
LCD DISPLAY
LED
BATTERIES VOLTAGE
12 V
Battery quantity
1
Dimensions
101 x 279 x 142 mm
Weight (kg)
4.90 kg
Warranty
1 Year

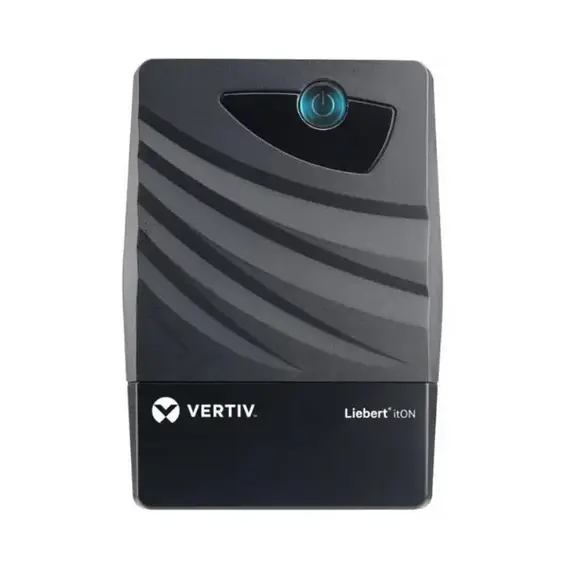

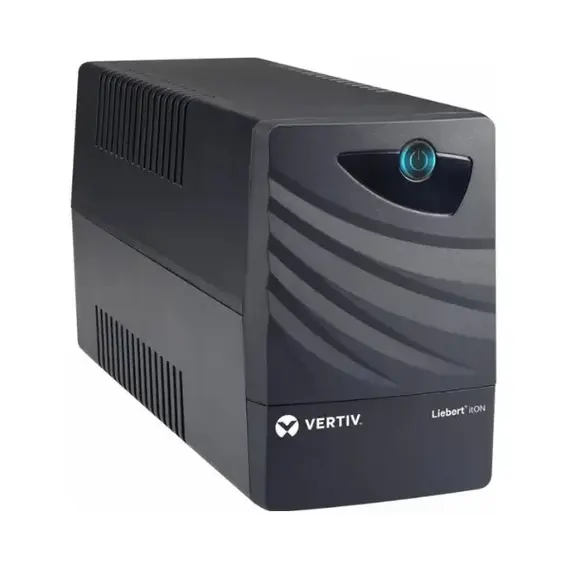

Vertiv Liebert Line Interactive UPS
800VA/480W Tower LI32121CT00
Emerson Liebert Line-interactive UPS – 800 VA/480 W Tower – LI32121CT00
Liebert it ON is a reliable line-interactive UPS designed for the protection of desktop computers and standalone IT equipment. With its compact design and easy to use controls, it provides sufficient back-up time in order to save work in progress and gracefully initiate system shutdowns.
Overview
Vertiv
Sealed Lead Acid (SLA) – 12 Second Stand-by Time – 230 V AC Input – 230 V AC Output – 2 x Schuko
MAIN FEATURES |
|
|---|---|
| PLUG/CONNECTOR TYPE | IEC 60320 C14 |

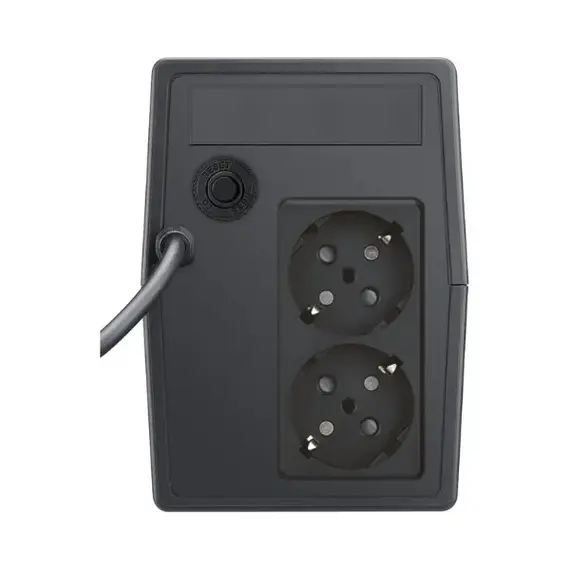

| RECEPTACLES | 2 x Schuko |
| TRANSFER TIME | 6 ms |
| LOAD CAPACITY | 800 VA/480 W |
| INPUT VOLTAGE | 230 V AC |
| OUTPUT VOLTAGE | 230 V AC |
| BACKUP/RUN TIME (FULL LOAD) | 12 Second |
| HEIGHT | 142 mm |
| WIDTH | 101 mm |
| DEPTH | 279 mm |
| FORM FACTOR | Tower |
| WEIGHT (APPROXIMATE) | 4.90 kg |
| ENERGY STAR | No |
| ENVIRONMENTALLY FRIENDLY | Yes |
| ENVIRONMENTAL CERTIFICATION | RoHS |
Detailed Tech Specification
GENERAL INFORMATION |
|
|---|---|
|
MANUFACTURER
|
Vertiv
|
|
MANUFACTURER PART NUMBER
|
LI32121CT00
|
|
MANUFACTURER WEBSITE ADDRESS
|
|
|
BRAND NAME
|
Liebert
|
|
PRODUCT SERIES
|
itON
|
|
PRODUCT MODEL
|
LI32121CT00
|
|
PRODUCT NAME
|
itON 800VA (480W) UPS
|
|
PRODUCT TYPE
|
Line-interactive UPS
|
TECHNICAL INFORMATION |
|
|
PLUG/CONNECTOR TYPE
|
IEC 60320 C14
|
|
RECEPTACLES
|
2 x Schuko
|
|
OVERLOAD PROTECTION
|
Yes
|
|
EMERGENCY POWER OFF
|
No
|
|
TRANSFER TIME
|
6 ms
|
|
PHASE
|
Single Phase
|
|
APPLICATION/USAGE
|
|
POWER DESCRIPTION |
|
|
LOAD CAPACITY
|
800 VA/480 W
|
|
INPUT VOLTAGE
|
230 V AC
|
|
OUTPUT VOLTAGE
|
230 V AC
|
|
WAVEFORM TYPE
|
Stepped Sine Wave
|
CONTROLS/INDICATORS |
|
|
STATUS INDICATORS
|
LED
|
INTERFACES/PORTS |
|
|
SERIAL PORT
|
No
|
|
USB
|
No
|
BATTERY INFORMATION |
|
|
NUMBER OF BATTERIES
|
1
|
|
BATTERY CHARACTERISTICS
|
Valve-regulated
|
|
BATTERY CHEMISTRY
|
Sealed Lead Acid (SLA)
|
|
BACKUP/RUN TIME (FULL LOAD)
|
12 Second
|
|
BACKUP/RUN TIME (HALF LOAD)
|
3 Minute
|
PHYSICAL CHARACTERISTICS |
|
|
COLOUR
|
Black
|
|
HEIGHT
|
142 mm
|
|
WIDTH
|
101 mm
|
|
DEPTH
|
279 mm
|
|
FORM FACTOR
|
Tower
|
|
WEIGHT (APPROXIMATE)
|
4.90 kg
|
MISCELLANEOUS |
|
|
ADDITIONAL INFORMATION
|
|
|
CERTIFICATIONS & STANDARDS
|
|
|
ENERGY STAR
|
No
|
|
ENVIRONMENTALLY FRIENDLY
|
Yes
|
|
ENVIRONMENTAL CERTIFICATION
|
RoHS |
