Eaton 9PX 11000I On-Line UPS, 11000VA/10000W, Rack/Tower, 6U

9PX 11000I
81,070 EGP
Out of stock
Reward points: 40535 points
Get a quote
Call Us
Chat us on Whatsapp
Payment Methods
  • Brand: Eaton
  • Model: 9PX 11000I
  • Power range: 11000VA/10000W
  • Battery Voltage/ Capacity: 12V/9Ah
  • Battery Quantity: 20
  • Weight (kg): 86 kg
  • Warranty: 2 Years
Brand:
Eaton
U.P.S Specifications
Part Number
9PX 11000I
U.P.S Configuration
Rack/Tower
Rating (VA/Watts)
11000VA/10000W
INPUT SYSTEM
230 V
OUTPUT SYSTEM
230 V
rated voltage
11000VA
LCD DISPLAY
Yes
COMMUNICATION SOFTWARE
USB port (HID compliant), Serial port (RS232), Mini terminal block for remote On/Off, Mini-terminal block for remote power off, Dry contacts (4 outputs, relay, DB9), DB15 for parallel operation
BATTERIES VOLTAGE
12V/9Ah
Battery quantity
20
Dimensions
700 x 440 x 260 mm
Weight (kg)
86 kg
Warranty
2 Year

Eaton 9PX 11000I On-Line UPS - Description

11000VA/10000W, Rack/Tower, 6U

Advanced Power Protection for Critical Systems:

Eaton 9PX 11000I On-Line UPS is a high-capacity uninterruptible power supply designed to safeguard your critical systems against power disruptions. With a robust capacity of 11,000VA/10,000W and double-conversion topology, this UPS provides continuous, clean, and reliable power. The advanced design constantly monitors voltage and frequency, ensuring optimal performance for sensitive equipment, making it ideal for data centers, IT infrastructure, and industrial applications.

Eaton 9PX 11000I

Superior Efficiency and Energy Savings:

Achieve energy efficiency with the Eaton 9PX 11000I UPS, which is Energy Star-qualified and features an impressive efficiency rating of 95% (98% in eco-mode). This reduces energy consumption and minimizes cooling costs, offering a cost-effective solution for power protection. Its 0.9 power factor provides more real power to protect a greater number of connected devices, optimizing performance without compromising efficiency.

Eaton 9PX 11000I UPS

Hot-Swappable Batteries and Advanced Battery Management:

The 9PX 11000I UPS is equipped with Eaton’s Advanced Battery Management (ABM) technology, which extends battery lifespan and ensures reliability. Hot-swappable battery modules enable seamless maintenance without interrupting power to connected equipment. The UPS also features automatic battery testing and recognition of external battery units, making it easy to scale runtime for extended backup needs.

Flexible Installation and User-Friendly Design:

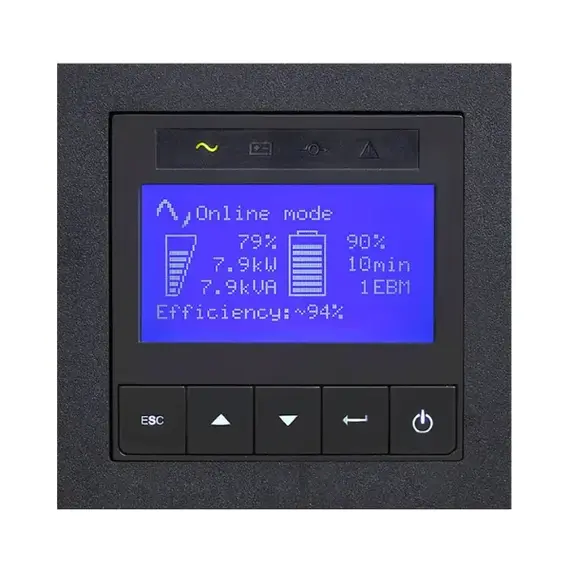

With its versatile rack/tower form factor and compact 6U size, the Eaton 9PX 11000I UPS fits seamlessly into various setups. Its sleek black and silver construction adds a professional touch, while the next-generation graphical LCD display provides an intuitive, multilingual interface for monitoring and management. Included accessories such as mounting supports and safety instructions simplify installation and operation.

9PX 11000I UPS

Reliable Connectivity and Compatibility:

This UPS features multiple communication options, including USB and RS232 ports, dry contacts, and a slot for optional communication cards. Compatible with Eaton Intelligent Power Manager and Eaton Intelligent Power Protector software, it integrates easily into virtual environments like VMware, Hyper-V, and Citrix Xen. These features enable remote management and monitoring, enhancing control over your power infrastructure.

ups power supply

Enhanced Safety and Compliance Standards:

The Eaton 9PX 11000I UPS is compliant with industry-leading certifications, including CE, TUV, IEC/EN 62040-1, and IEC/EN 62040-2, ensuring reliable operation and adherence to stringent safety standards. Additional features like an internal bypass and automatic shutdown functionality provide uninterrupted service and peace of mind during power anomalies.

Robust Build and Operational Reliability:

Designed for demanding environments, this UPS operates efficiently in temperatures ranging from 0°C to 40°C with a noise level of less than 50 dB. It supports altitudes up to 3,000 meters and maintains performance in relative humidity levels up to 95% non-condensing. The system’s sine-wave output ensures stable power delivery, safeguarding your equipment from voltage fluctuations.

Eaton on-line ups
