Eaton 9E1000I On-Line UPS, 1000VA/800W, Tower

Eaton 9E1000I On-Line UPS - Description

1000VA/800W, Tower

Reliable Power Protection with Eaton 9E1000I UPS:

Eaton 9E1000I On-Line UPS offers superior power protection for critical devices, ensuring uninterrupted operation during power disruptions. Designed with a robust 1000VA/800W capacity, this double-conversion UPS delivers consistent and reliable power with an output voltage range of 220/230/240V. Its sine wave output and less than 3% voltage distortion under linear loads make it ideal for sensitive equipment, protecting against fluctuations, surges, and outages.

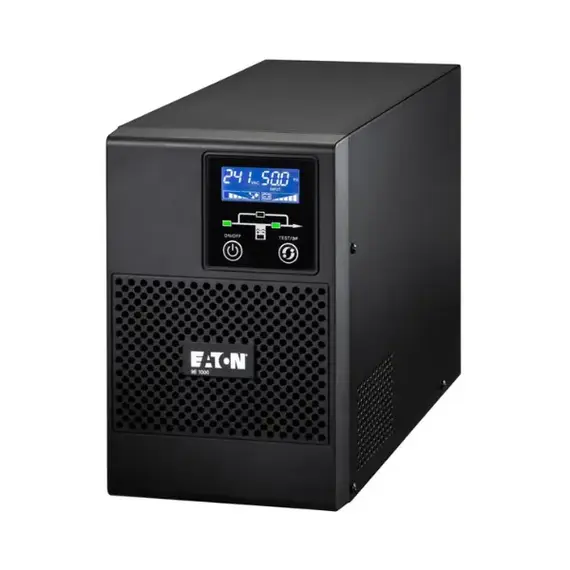

Compact and Durable Design:

The Eaton 9E UPS boasts a sleek, free-standing tower design with dimensions of 356 mm x 228 mm x 144 mm. Despite its compact form factor, it is sturdy and weighs 22.1 kg, ensuring stability and durability. Constructed to comply with global safety and quality standards, including CE marking and certifications like IEC/EN 62040-1 and TUV, it is a reliable choice for various applications.

Efficient Battery Management System:

This UPS features two sealed lead-acid batteries with a rating of 12V/9Ah each, ensuring dependable runtime. With automatic battery testing, deep discharge protection, and easy battery replacement, users can maintain peak performance over time. The UPS also supports extended battery capability for enhanced runtime during prolonged power outages.

Exceptional Output Performance:

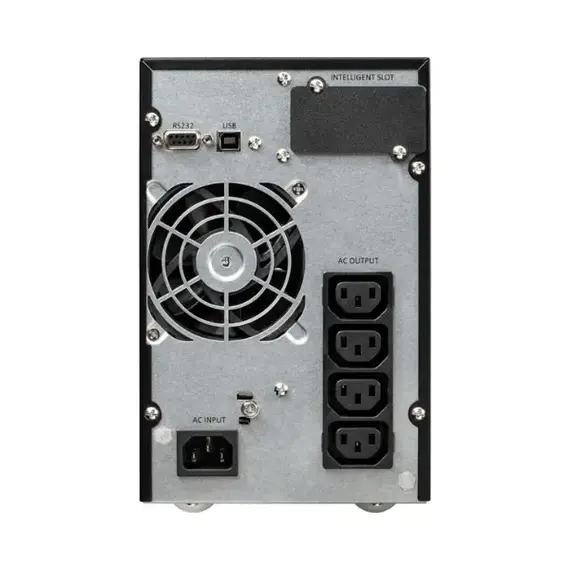

Equipped with four C13 output receptacles, the Eaton 9E1000I delivers up to 800W of power with a power factor of 0.8. The device ensures stable performance with an output voltage range of ±2% and supports nominal voltage settings of 220V, 230V, or 240V. Its online/double-conversion topology guarantees clean and reliable power for critical systems.

Advanced Input Specifications:

The UPS features a C14 input connection and operates within an input voltage range of 176-300V. It is highly adaptable, offering a derated range of 100-300V for lower voltages. The input power factor of >0.99 and frequency range of 40-70 Hz enhance efficiency and compatibility with various environments.

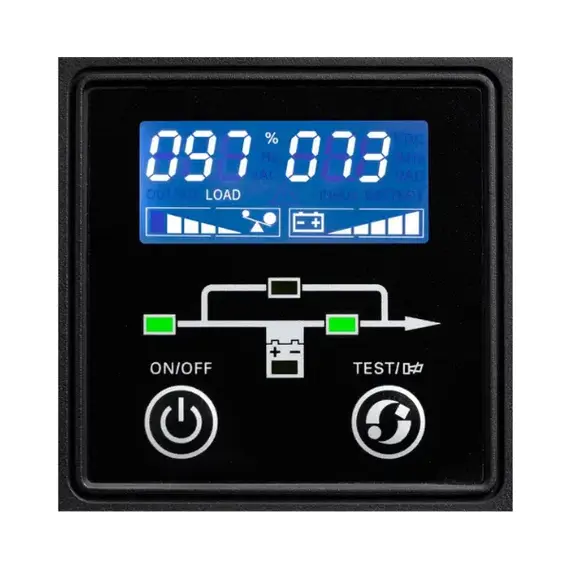

Enhanced Communication and Monitoring:

With an LCD display, the Eaton 9E1000I UPS provides real-time system updates and diagnostics. Communication options include USB and RS232 ports, as well as a slot for an optional communication card. Compatible with Eaton Intelligent Power Manager and Power Protector software, it offers seamless integration into power management systems.

Environmentally Friendly and Quiet Operation:

This UPS operates efficiently with a 91% efficiency rating and produces minimal noise levels of less than 37 dB at 1 meter. Designed for diverse environments, it functions within a temperature range of 0°C to 40°C and altitudes up to 3000 meters. The device supports 0-95% non-condensing humidity, ensuring reliable performance in various conditions.

Comprehensive Package for Easy Setup:

Eaton 9E1000I UPS comes complete with essential accessories, including a USB cable, serial cable, quick start guide, and safety instructions, allowing for quick and straightforward installation. Its user-friendly design and automatic shutdown function provide added convenience and peace of mind.
