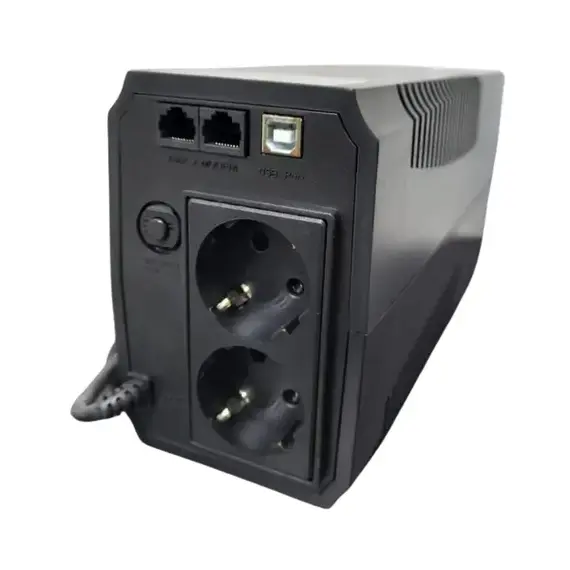

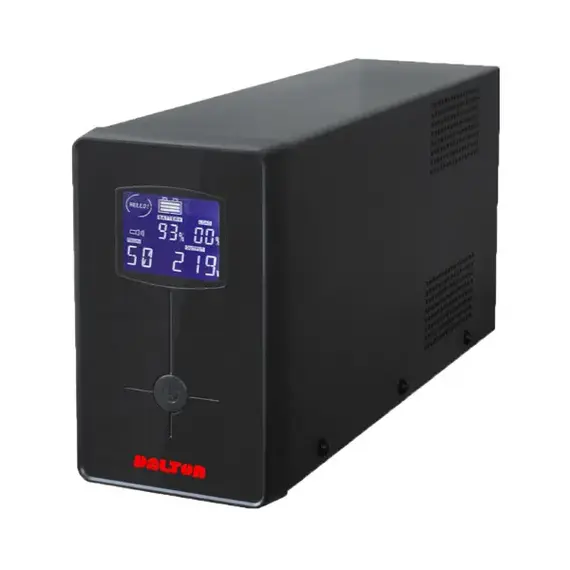

Dalton SM10-650V Line Interactive UPS, 650VA/390W, 1Ph, Tower

Dalton SM10-650V Line Interactive UPS - Description

650VA/390W, 1Ph, Tower

Dalton SM10-650V Line Interactive UPS is a high-performance uninterruptible power supply designed to ensure reliable power backup and protect your sensitive electronic devices. With a capacity of 650VA/390W, it is perfect for small offices, homes, and businesses that need uninterrupted power for critical operations. Its sleek tower design makes it compact and easy to integrate into any setup.

Advanced Input and Output Features:

Equipped with a single-phase input and output system, the UPS operates within a wide voltage range of 176-276VAC at 100% load and 120-276VAC at 50% load, ensuring flexibility in various power environments. The power factor of ≥0.99 enhances efficiency, while the output voltage is rated at 208*/220/230VAC with a precision of ±2%. The unit delivers a simulated sinewave output, minimizing voltage distortion to less than 1% on a linear load and under 5% on a non-linear load.

Intelligent Overload Management and Transfer Time:

The Dalton SM10-650V UPS is designed for seamless operation with an inverter overload capacity that handles up to 150% of the load for short durations. It transfers loads to bypass mode after specific time intervals, ensuring safe operations under heavy loads. With a transfer time of 0ms, it guarantees uninterrupted power, protecting sensitive equipment from disruptions.

User-Friendly Display and Connectivity:

The UPS features an LCD display that provides real-time data on frequency, voltage, load, and battery status. LED indicators show utility power, battery discharge, and inverter status for easy monitoring. Its external communication options include USB and RS485, with optional RS232 and SNMP adapters for enhanced connectivity.

Robust Battery Performance:

The Dalton SM10-650V UPS uses a sealed maintenance-free lead-acid battery with a voltage of 12VDC. It offers backup times of at least 5 minutes at full load under standard conditions (25°C). The single battery design ensures easy maintenance and replacement.

High Efficiency and Eco-Friendly Operation:

Designed for optimal energy efficiency, the UPS achieves over 90% efficiency in line mode, over 92% in battery mode, and up to 96% in eco mode. This ensures reduced energy consumption and environmental impact while providing reliable performance.

Compact Design and Durable Build:

With dimensions of 290 x 100 x 140 mm and a lightweight design of just 5 kg, the Dalton SM10-650V is space-saving and portable. It operates quietly at less than 35 dB and is equipped with comprehensive protections against low battery, overload, over-temperature, short circuit, and voltage irregularities.

Versatility and Compatibility:

This UPS supports multiple operating systems, including Windows XP/2003 and later versions, Linux, and Unix. Optional features like SNMP, dry contact relays, and Modbus make it versatile for a variety of applications, ensuring compatibility with modern IT setups.
