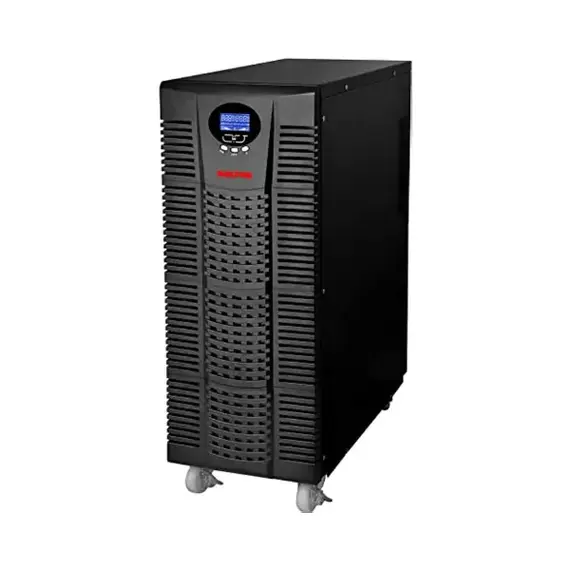

Dalton U10-10K On-Line UPS, 10000VA/10000W, Tower

Dalton U10-10K On-Line UPS - Description

10000VA/10000W, Tower

Reliable Input System for Stable Power Supply:

Dalton U10-10K On-Line UPS operates with a single-phase input system that connects to earth ground, ensuring a stable power supply. It boasts an extensive voltage range of 120±5VAC to 274±5VAC, making it adaptable to various power environments. With a power factor of ≥0.99, it ensures efficient energy usage, minimizing energy losses. The bypass voltage range is adjustable between 60±5VAC and 300±5VAC, providing flexibility to meet diverse requirements.

Precision Output for Critical Applications:

This UPS delivers a pure sine wave output with a rated voltage range of 200V to 240V, ensuring compatibility with sensitive equipment. Its output maintains a remarkable voltage precision of ±1% and achieves voltage distortion of ≤2% at a linear load. Additionally, the output frequency synchronizes with the input frequency (46Hz–54Hz) or defaults to 50Hz or 60Hz in battery mode. The power factor of 1 ensures maximum efficiency in power delivery for mission-critical operations.

Superior Efficiency and Robust Overload Protection:

With an efficiency rating exceeding 95%, the Dalton U10-10K minimizes energy consumption, reducing operational costs. Its inverter is designed to handle overloads, with warnings triggered at loads exceeding 105%. The system transitions to bypass mode within 10 seconds for loads between 105% and 125% and within 300 milliseconds for loads greater than 125%, safeguarding connected devices.

Comprehensive Display and Communication Options:

The UPS features an intuitive LCD display, showcasing AC/DC voltages, kVA/kW, frequency, temperature, and battery/load levels. LED indicators provide status updates for utility power, battery discharge, and inverter operation. Communication is seamless with RS232 and RJ11 interfaces, along with optional intelligent slots for SNMP, USB, RS485, and dry contact cards. Compatible with Windows, Linux, and Unix systems, the UPS integrates easily into various setups.

Reliable Battery System for Backup Power:

Equipped with a sealed, maintenance-free lead-acid battery system, the Dalton U10-10K offers reliable backup power. Operating at 240VDC, the system includes 16 to 20 batteries, providing a full-load backup time of at least five minutes at 25°C. The UPS supports a charging current of 1A, ensuring efficient recharging for sustained performance.

Compact Design and Build Quality:

Measuring 533x260x560 mm and weighing 62 kg, this tower-style UPS is compact yet durable. Its robust design makes it suitable for industrial, commercial, and IT environments. Optional features like EMD monitoring devices and control cards enhance functionality, catering to diverse power protection needs.
