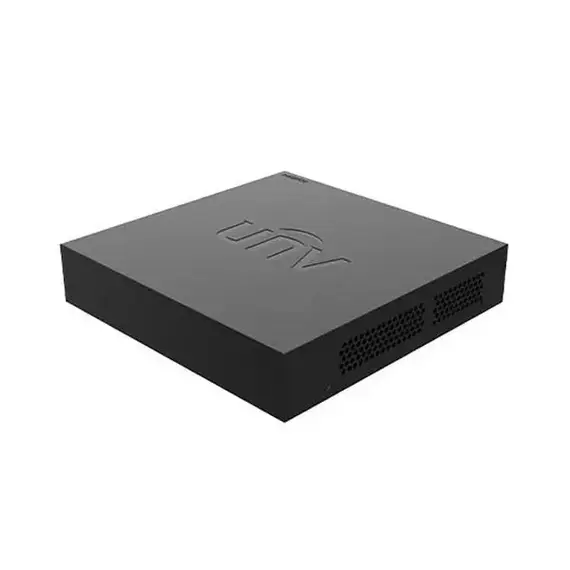

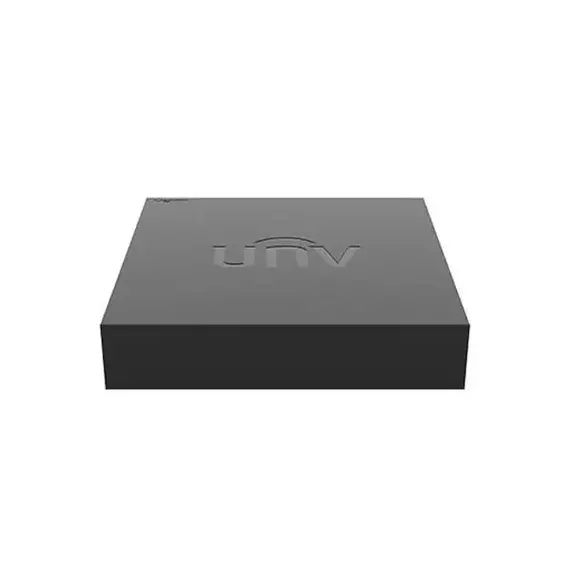

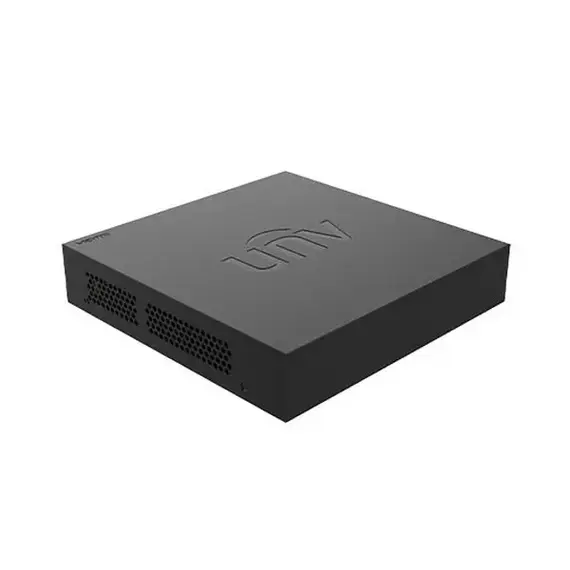

UNV XVR301-04F 4-ch 2MP 1HDD DVR

UNV XVR301-04F - Description

4-ch 2MP 1HDD DVR

UNV XVR301-04F 4-Channel DVR is a compact and efficient surveillance recording solution designed for small businesses, offices, retail shops, and residential security systems. This hybrid DVR supports multiple camera technologies, allowing users to connect TVI, AHD, CVI, and CVBS analog cameras while also supporting IP cameras for flexible system expansion. With support for up to 6 total channels (4 analog + 2 IP), the device provides a cost-effective upgrade path for existing CCTV installations. Its reliable performance and easy integration make it a practical choice for modern surveillance environments that require stable video recording and remote monitoring capabilities.

High-Quality Video Recording and Efficient Compression:

This DVR supports recording resolutions including 1080P Lite, 720P, and D1, ensuring clear and consistent video capture for everyday security monitoring. The system uses advanced H.265 and H.264 video compression, which helps reduce bandwidth usage and storage requirements without compromising video quality. With a recording frame rate of up to 1080P Lite at 25fps or 720P at 30fps, the device delivers smooth playback and detailed footage. Additionally, its decoding capability allows simultaneous viewing of analog and IP channels, ensuring efficient video management and monitoring across connected cameras.

Flexible Connectivity and Multi-Display Output:

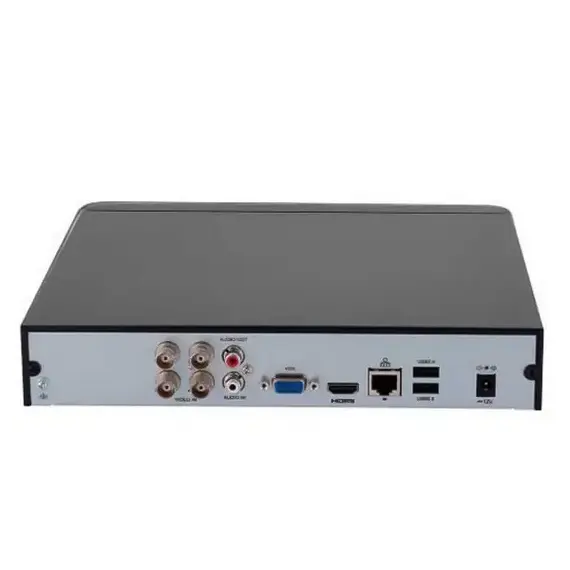

The XVR301-04F offers versatile connectivity options that make it easy to integrate into existing surveillance systems. It includes 4 BNC analog inputs, support for up to 2 IP cameras, and a maximum of 6 video channels. The DVR provides both HDMI and VGA outputs with resolutions up to 1920×1080, enabling simultaneous display on monitors. Multiple live view display modes such as 1, 4, 6, 8, and 9 split screens allow security operators to monitor several areas at once. With network bandwidth of up to 24Mbps incoming and 48Mbps outgoing, the device ensures stable video transmission and remote access.

Smart Detection and Advanced Security Features:

For enhanced surveillance efficiency, the DVR includes Ultra Motion Detection (UMD) across all four analog channels. This smart feature helps detect movement accurately and reduces false alarms compared to traditional motion detection systems. The device also supports VCA behavior search, making it easier to locate important events during playback. Snapshot functionality for analog cameras allows event-based image capture and FTP uploads, improving incident documentation and security analysis.

Compact Design with Reliable Storage Support:

The DVR is designed with a compact structure that fits easily into various installation environments. It supports one SATA hard drive up to 6TB, providing sufficient storage capacity for continuous recording. With low power consumption of ≤10W (without HDD) and a durable operating temperature range of -10°C to +55°C, the XVR301-04F is built for reliable long-term operation. Its lightweight design and straightforward installation make it suitable for both new CCTV systems and upgrades to existing setups.
