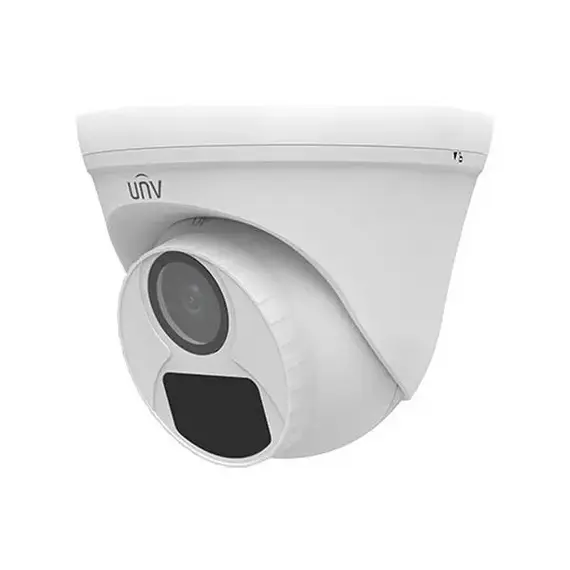

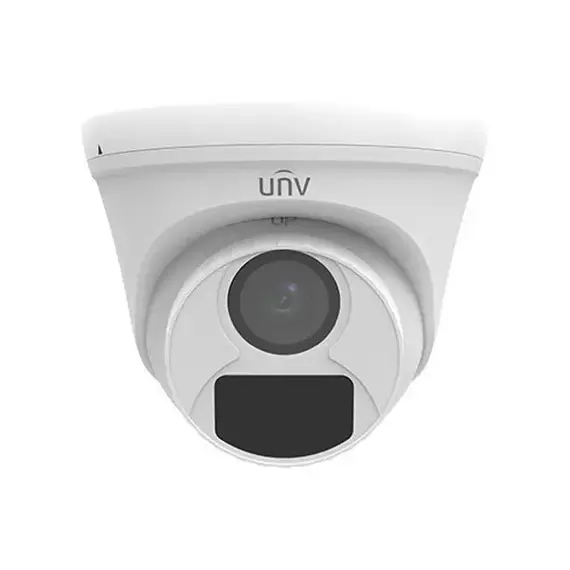

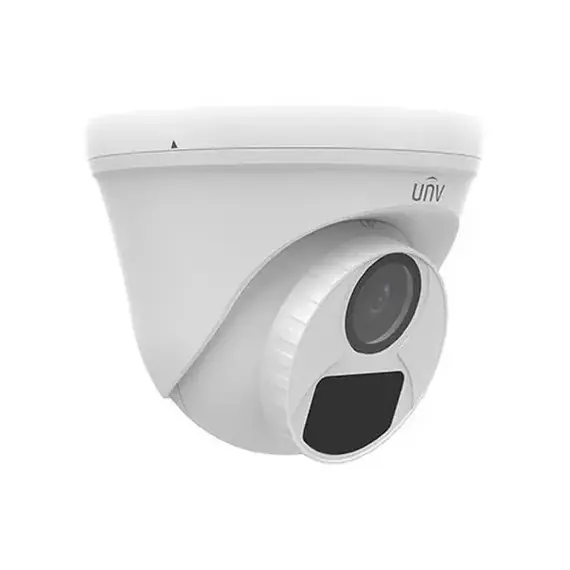

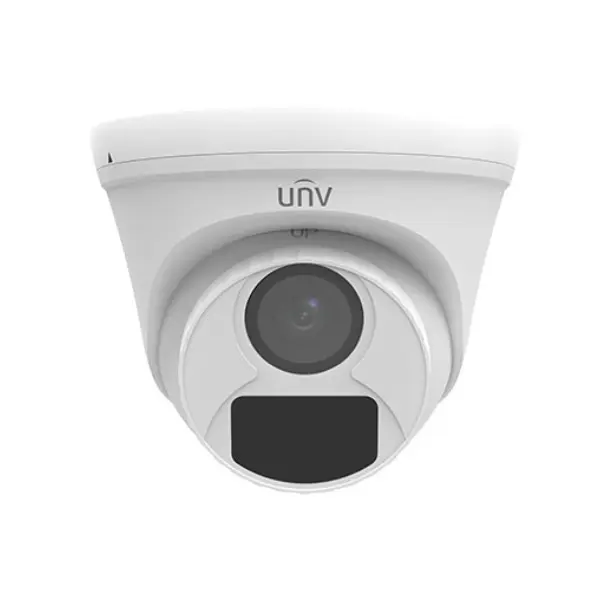

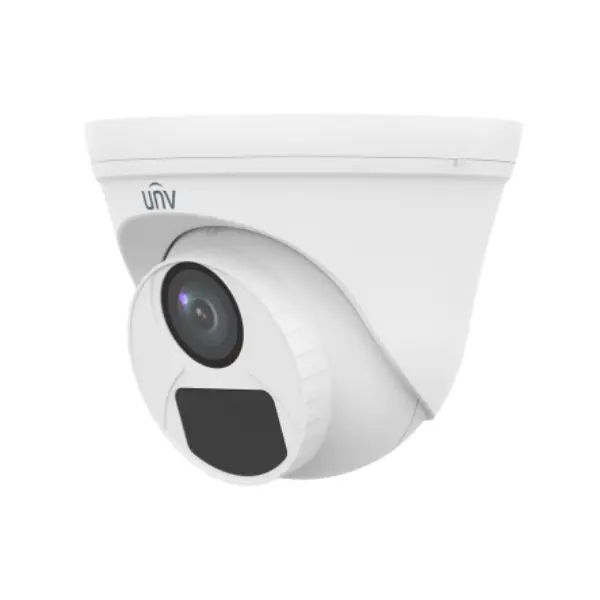

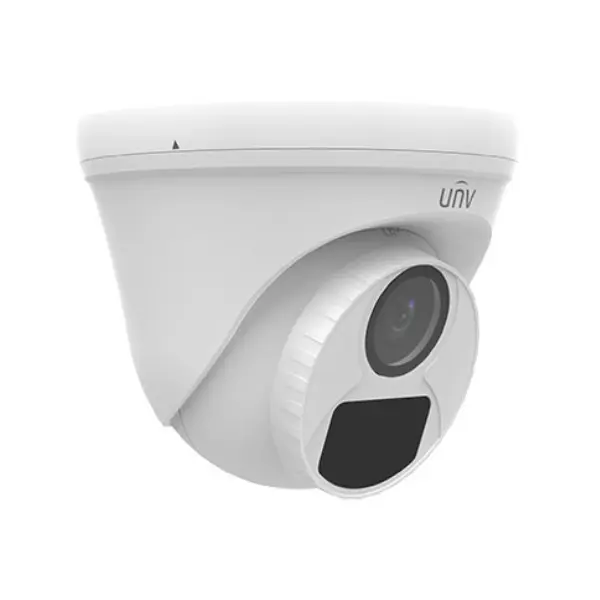

UNV UAC-T115-F28 5MP HD Fixed IR Turret Analog Camera

UNV UAC-T115-F28 - Description

5MP HD Fixed IR Turret Analog Camera

Crystal Clear 5MP High-Definition Imaging:

The UNV UAC-T115-F28 5MP Fixed IR Turret Analog Camera delivers exceptional image quality with a maximum resolution of 5 megapixels, providing sharp and detailed visuals that capture every detail. Equipped with a 1/2.7" CMOS sensor, this camera ensures excellent image performance even in low-light conditions, with a minimum illumination of just 0.02 lux (F2.0, AGC ON) and 0 lux when IR is active. This makes it ideal for both day and night monitoring applications. Whether installed in residential, commercial, or industrial environments, users can rely on consistent and clear video output at up to 2880 × 1620 resolution.

Wide Viewing Angle and Reliable Fixed Lens:

Featuring a 2.8 mm fixed lens, the UNV UAC-T115-F28 provides a wide horizontal angle of view of 102.2°, ensuring broader coverage for surveillance areas. The lens design with an M12 mount ensures stability and high precision for capturing accurate visuals. The vertical (53.9°) and diagonal (124.8°) angles of view make this camera a perfect choice for open spaces such as parking lots, building entrances, and hallways. Its fixed-focus design eliminates the need for manual adjustments, providing a simple and effective solution for installers and users alike.

Superior Night Vision and Smart IR Technology:

The built-in IR illuminator enhances night-time visibility, offering a 20-meter illumination distance. With a lifetime of over 60,000 hours, the IR system ensures long-term performance without frequent maintenance. The Smart IR technology automatically adjusts the infrared light intensity to prevent overexposure and deliver balanced night images. Combined with DWDR (Digital Wide Dynamic Range) and 2D Digital Noise Reduction (DNR), the camera guarantees clear footage even in challenging lighting conditions such as backlight, glare, or total darkness.

Flexible Video Formats and Enhanced Compatibility:

The UNV UAC-T115-F28 supports multiple video output formats including TVI, AHD, CVI, and CVBS, ensuring compatibility with various DVR systems. Users can select the desired format directly via the BNC interface, making integration quick and simple. The camera supports several frame rates — up to 5MP@25fps — to meet different recording requirements. Its OSD menu, available in 11 languages, allows users to easily adjust image settings such as exposure, white balance, and day/night mode.

Durable Design and Reliable Protection:

Built to last, the UNV UAC-T115-F28 features a rugged IP67-rated housing, offering full protection against dust and water ingress. It operates efficiently in harsh environments with temperatures ranging from -30°C to 60°C and humidity up to 95% RH (non-condensing). The camera is also equipped with 4 KV surge protection for both power and video interfaces, ensuring reliable operation during electrical fluctuations. Its compact, lightweight design (182g) and multiple mounting options—including wall, pole, corner, and pendant—make installation easy and versatile.

Energy-Efficient and Certified for Safety:

Operating on DC 12V ±25% power and consuming only 3.6W, this camera is both energy-efficient and cost-effective. It meets strict international standards such as CE, FCC, RoHS, and WEEE, guaranteeing quality, safety, and environmental compliance. The UNV UAC-T115-F28 5MP Fixed IR Turret Analog Camera is a dependable, high-performance choice for users seeking superior video surveillance at an affordable cost, combining clarity, durability, and smart design in one compact package.
