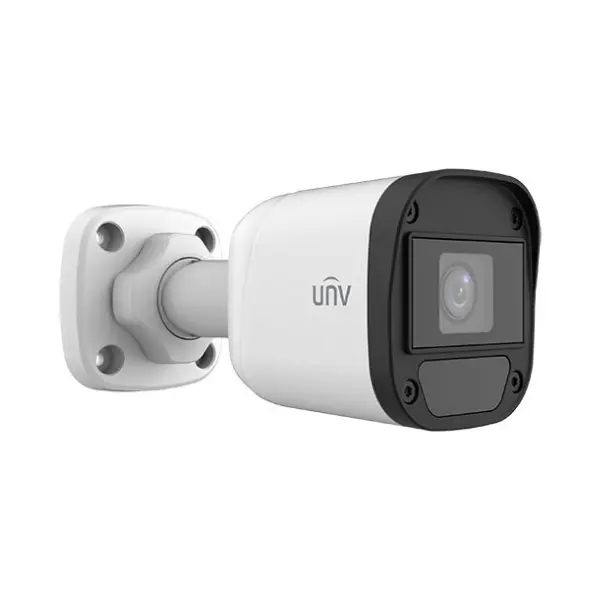

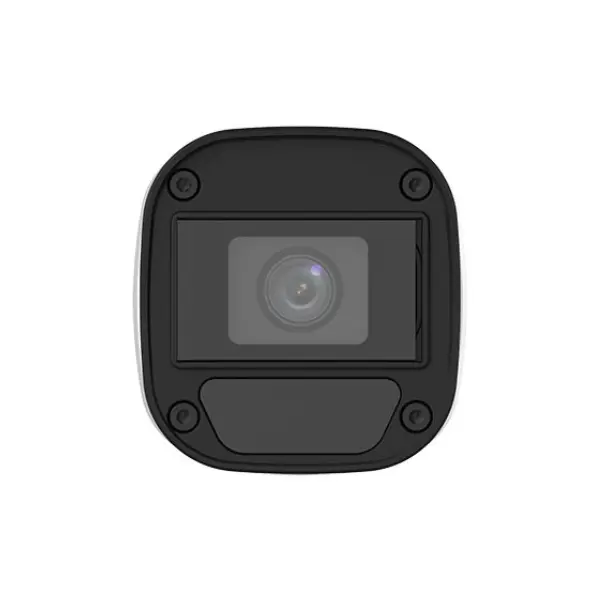

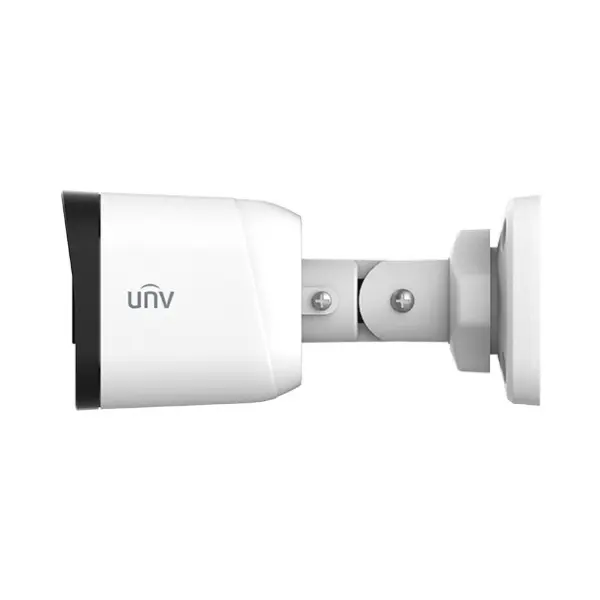

UNV UAC-B115-F28(40) 5MP 4.0mm HD Fixed IR Mini Bullet Analog Camera

UNV UAC-B115-F28(40) - Description

5MP 4.0mm HD Fixed IR Mini Bullet Analog Camera

Superior 5MP Image Quality for Detailed Surveillance:

The UNV UAC-B115-F28(40) is a high-performance 5MP HD analog camera designed for crystal-clear image capture. Featuring a 1/2.7" high-resolution image sensor, it delivers excellent image clarity even in challenging lighting conditions. With a minimum illumination of 0.02 lux (F2.0, AGC ON) and 0 lux when IR is active, this camera ensures clear night vision through its integrated IR-cut filter (ICR). The result is reliable surveillance both day and night, making it ideal for residential, commercial, or industrial security systems.

Versatile Video Format Compatibility:

This analog mini bullet camera supports multiple video formats including TVI, AHD, CVI, and CVBS, ensuring broad compatibility with a wide range of DVR systems. It offers flexible frame rate options across resolutions such as 5MP (up to 25fps), 4MP, and 1080p, providing optimized performance and seamless integration into both legacy and modern surveillance infrastructures. Whether you're upgrading an existing system or setting up a new one, the UAC-B115-F28(40) ensures smooth interoperability.

Advanced Features for Flexible Monitoring:

Equipped with features like OSD menu with 11 language options, 2D digital noise reduction, DWDR (Digital Wide Dynamic Range), BLC (Backlight Compensation), and HLC (Highlight Compensation), this camera adapts intelligently to diverse lighting conditions. The support for Smart IR allows for even exposure at night, preventing overexposure of close objects. Additionally, 180° horizontal and vertical flip functions ensure flexible installation and optimal viewing angles regardless of mounting position.

Rugged, Weatherproof Design for Outdoor Use:

Designed with IP67-rated protection, the UAC-B115-F28(40) is dust-tight and waterproof, making it ideal for outdoor surveillance in harsh weather conditions. It operates reliably in temperatures ranging from -30°C to 60°C and up to 95% humidity. Built from durable plastic and weighing only 135g, it offers both lightweight convenience and robust protection.

Efficient Power and Easy Installation:

This camera runs on DC12V (±25%) power with built-in reverse polarity and surge protection (4KV). The low power consumption of just 3.6W–5.04W enhances energy efficiency, making it suitable for long-term operation. The included 3D bracket and mounting options such as surface, backbox, or pole mounting provide maximum installation flexibility, while the M12 lens mount offers stability and compatibility.

Ideal for Modern Security Needs:

With a wide-angle 2.8mm or 4.0mm lens, the UAC-B115-F28(40) covers horizontal viewing angles up to 102.2°, making it perfect for monitoring entrances, parking lots, warehouses, or homes. Its certifications including CB, CE, and FCC reflect international compliance and safety standards, giving users confidence in its performance and reliability.

The UNV UAC-B115-F28(40) 5MP Analog IR Bullet Camera is a robust, versatile, and affordable solution for high-quality video surveillance. Its advanced imaging, multi-format support, durable IP67 build, and intuitive features make it an excellent choice for both indoor and outdoor security applications. Whether upgrading a legacy system or deploying a new installation, this camera delivers performance that meets the latest standards in analog CCTV.
