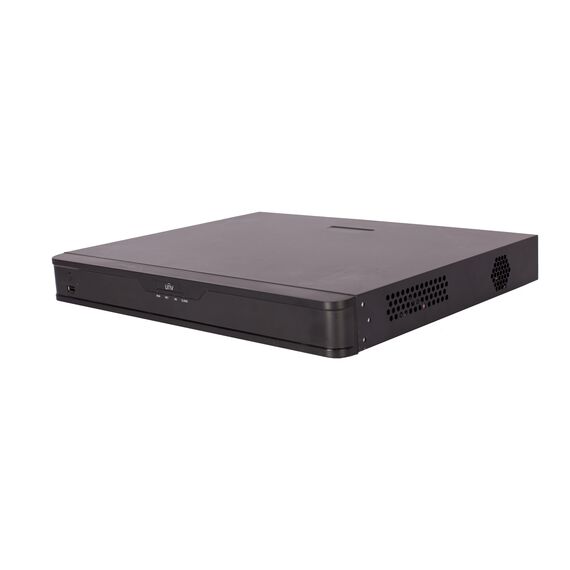

UNV NVR302-16S-P16

16-ch NVR

Support Ultra265/H.265/H.264 video formats

16-channel input

Plug & Play with 16 independent PoE network interfaces

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T

HDMI and VGA simultaneous output

Up to 8 Megapixels resolution recording

Accurate retrieval, instant playback

2 SATA HDDs, up to 8TB for each HDD

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

NVR302-16S-P16

Video/Audio Input

IP Video Input 16-ch

Two-way Audio Input 1-ch, RCA

Network

Incoming bandwidth 112Mbps

Outgoing bandwidth 96Mbps

Remote Users 128

Protocols P2P, UPnP, NTP, DHCP, PPPoE, SSL, TLS, HTTPS

Video/Audio Output

HDMI/VGA Output

HDMI: 3840x2160(4K), 1920x1080p, 1600x1200, 1280x1024, 1280x720, 1024x768

VGA: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768

Audio Output 1-ch, RCA

Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Synchronous Playback 16-ch

Corridor Mode Screen 3/4/5/7/9/10/12/16

Decoding

Decoding format Ultra265/H.265/H.264

Live view/ Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability 1 x 4K@30, 1 x 6MP@30,1 x 5MP@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30,16 x D1

Hard Disk

SATA 2 SATA interfaces

Capacity Up to 8TB for each disk

Smart

VCA Detection Face detection, Intrusion detection, Line Cross detection, Audio detection, Defocus detection, Scene change

detection, Auto tracking

VCA Search Face search, Behavior search

Statistical Analysis People counting

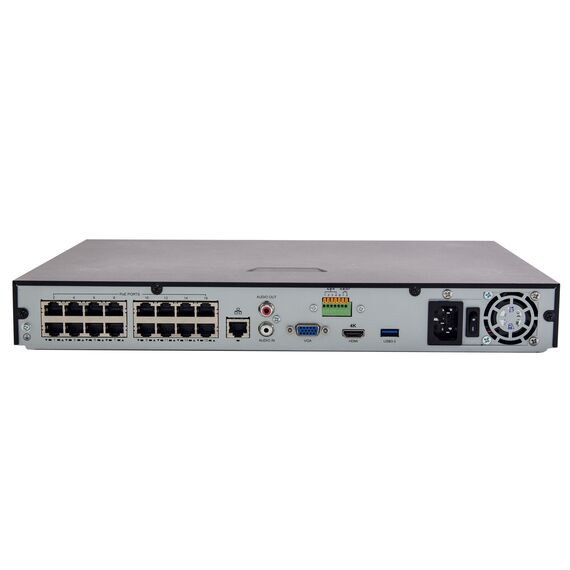

External Interface

Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface Rear panel：1 x USB2.0, Front panel：1 x USB2.0

PoE

Interface 16 independent 100Mbps PoE network interfaces

Max Power

Max 30W for single port

Max 240W in total (15W for each)

Supported Standard IEEE 802.3af/at

General

Power Supply 220V AC

Power Consumption: ≤9 W( without HDD )

Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

Dimensions(W×D×H) 380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )

Weight ( without HDD ) ≤2.4kg (5.29 lb)
