UNV NVR301-04LB-P4 4-ch POE 1HDD up to 8TB UP To 2 Megapixel NVR

UNV NVR301-04LB-P4 - Description

4-ch POE 1HDD up to 8TB UP To 2 Megapixel NVR

UNV NVR301-04LB-P4: Reliable 4-Channel PoE Network Video Recorder:

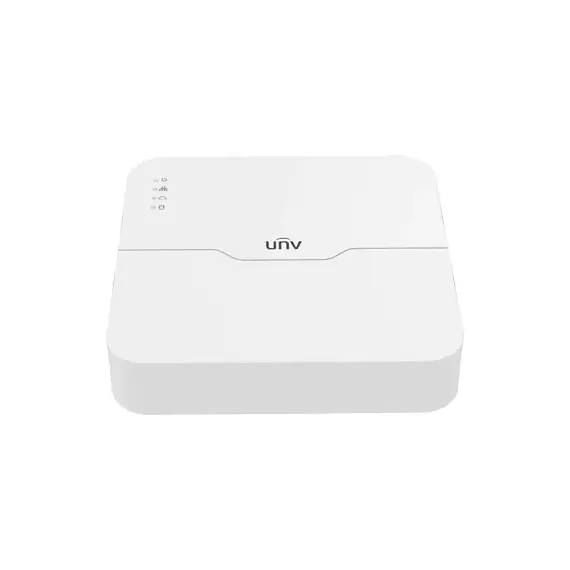

The UNV NVR301-04LB-P4 is a compact and efficient 4-channel PoE Network Video Recorder designed for small to medium surveillance systems. Built to support up to 2MP IP cameras, this NVR delivers stable performance, clear video recording, and simple installation. With four independent PoE ports, users can connect and power IP cameras directly, reducing cabling complexity and installation costs. Its slim design and low power consumption make it ideal for homes, offices, retail stores, and small commercial environments.

Advanced Video Compression and High-Quality Recording:

This UNV NVR supports Ultra 265, H.265, and H.264 video compression formats, ensuring high-quality video while significantly reducing storage and bandwidth usage. It records video at resolutions up to 1080p, delivering sharp and detailed images for effective monitoring. The system supports quad-channel synchronous streaming, allowing smooth live viewing and playback across all connected cameras. With a maximum incoming bandwidth of 40 Mbps, the NVR ensures stable performance even during continuous recording.

Flexible Display and Network Compatibility:

The NVR301-04LB-P4 features simultaneous HDMI and VGA outputs, supporting multiple display resolutions up to 1920 × 1080 at 60Hz. This flexibility allows users to connect modern or legacy monitors without additional converters. The device is fully compatible with ONVIF Profile S, G, and T, enabling seamless integration with third-party IP cameras. Network features such as P2P, UPnP, NTP, DHCP, and PPPoE make remote access and configuration simple and reliable.

Efficient Storage, PoE Power, and Durable Design:

Equipped with one SATA interface, this NVR supports hard drives up to 8TB, providing ample storage for long-term video retention. The four PoE ports comply with IEEE 802.3af/at standards, delivering up to 13.5W per port and a total PoE power budget of 54W. Designed for durability, it operates reliably in temperatures from -10°C to +55°C. With its compact size, lightweight build, and cloud update support, the UNV NVR301-04LB-P4 is a future-ready solution for dependable IP video surveillance.
