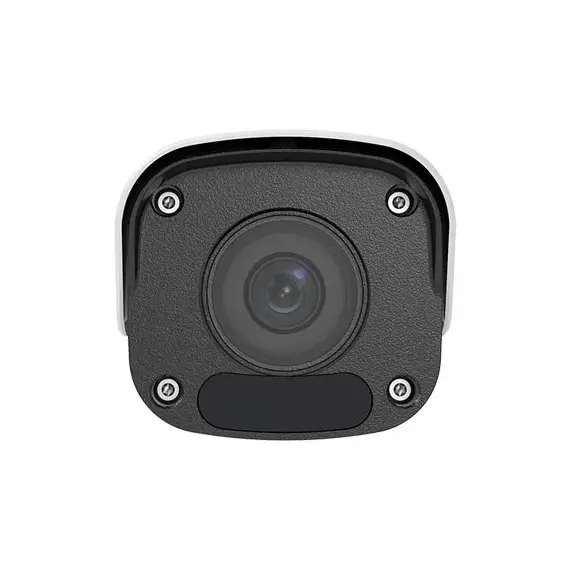

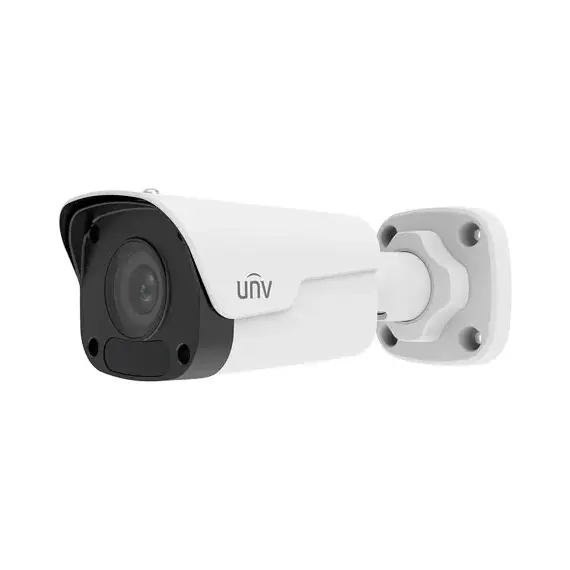

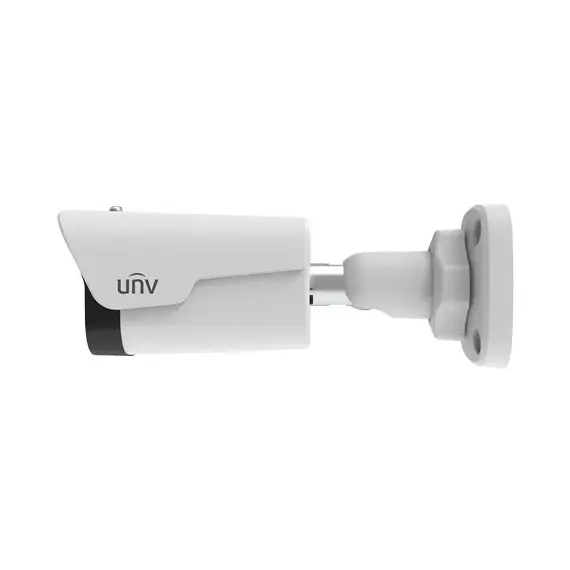

UNV IPC2128LR3-DPF40M-F 4.0mm ​8mp ​4K Mini Fixed Bullet Network Camera

UNV IPC2128LR3-DPF40M-F - Description

4.0mm 8mp 4K Mini Fixed Bullet Network Camera

Professional 4K Mini Bullet IP Camera:

The UNV IPC2128LR3-DPF40M-F is a high-performance 4K (8MP) mini fixed bullet network camera designed to deliver ultra-clear video quality for professional security applications. Built with a 1/3" progressive scan CMOS sensor, this camera captures sharp details and accurate colors, making it ideal for monitoring entrances, perimeters, parking areas, and commercial facilities where clarity is critical.

Ultra-High Resolution Imaging with Advanced WDR:

Equipped with 8 megapixel resolution (3840×2160) and 120 dB true Wide Dynamic Range (WDR), the camera ensures excellent image balance in challenging lighting conditions. Strong backlight, shadows, and glare are effectively handled, allowing faces, license plates, and objects to remain visible even in high-contrast scenes. The S/N ratio above 56 dB further enhances image purity and reduces distortion.

Reliable Night Vision with Smart IR Technology:

The camera features Smart IR illumination with up to 30 meters (98 ft) range, ensuring clear visibility in total darkness. An IR anti-reflection window and optical glass with high light transmittance improve infrared efficiency and prevent overexposure. With 0 Lux illumination when IR is on, the camera delivers consistent night surveillance while maintaining detail and depth.

Efficient Video Compression and Smooth Streaming:

Supporting Ultra 265, H.265, H.264, and MJPEG compression, this camera significantly reduces bandwidth and storage requirements without compromising image quality. The main stream supports up to 8MP at 20 fps, while lower resolutions reach 30 fps, ensuring smooth and reliable video transmission. ROI (Region of Interest) technology allows critical areas to be prioritized for higher image quality.

Flexible Installation and Professional Protection:

Designed for outdoor and indoor use, the camera features a durable metal housing with IP67 protection, safeguarding it against dust, rain, and harsh environments. It operates reliably in temperatures ranging from -30°C to +60°C. The 3-axis adjustable bracket (0°–360° rotation) allows flexible installation, while PoE (IEEE 802.3af) simplifies cabling and deployment.

Smart Integration and Network Compatibility:

Fully compliant with ONVIF Profile S and T, the IPC2128LR3-DPF40M-F integrates seamlessly with UNV NVRs and third-party systems. It supports a wide range of network protocols, advanced image functions such as BLC, HLC, digital defog, privacy masking, and multiple client platforms including EZStation, EZView, and web browsers, making it a powerful and future-ready surveillance solution.
