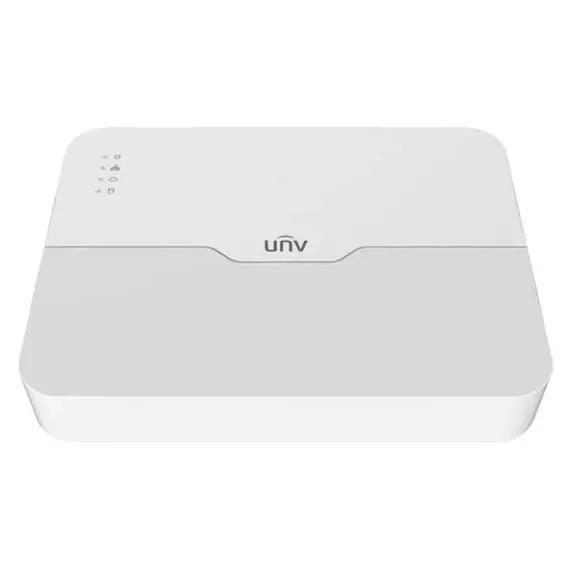

UNV 301-16LS3-P8 Network Video Recorder
UNV 301-16LS3-P8
Network Video Recorder
The UNV 301-16LS3-P8 Network Video Recorder stands as a pinnacle of security technology, supporting Ultra 265, H.265, and H.264 video formats.
It is designed to accommodate 4, 8, or 16-channel input options, providing flexibility for various surveillance needs.
The poe nvr's plug-and-play feature with independent network interfaces simplifies setup, making it an ideal choice for both small-scale and large-scale security operations.

Exceptional Video and Audio Decoding Capabilities:
This NVR boasts impressive decoding capabilities, handling resolutions up to 4K at 30fps.
It supports multiple channels of 5MP, 4MP, 3MP, 1080P, 720P, and D1 formats.
Audio decoding is handled through G.711A and G.711U formats, ensuring clear and reliable audio surveillance. The NVR's robust decoding features make it a versatile tool for high-definition video recording and playback.
Advanced Compatibility and Protocol Support:
The UNV 301-16LS3-P8 NVR is compatible with mainstream ONVIF conformance cameras (Profile S, G, T) and RTSP protocols. It supports a variety of network protocols including TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, and RTSP. Browser support includes IE10/11, Firefox 52.0 and above, Chrome 45 and above, and Edge 79 and above on Windows systems, ensuring broad compatibility and ease of access.
Superior Video and Audio Output Options:
The NVR provides 1-channel HDMI and 1-channel VGA outputs, with HDMI supporting up to 4K (3840x2160) resolution at 30Hz. VGA output supports resolutions up to 1920x1080 at 60Hz. HDMI and VGA can output simultaneously, allowing for flexible display options. Additionally, it includes a 1-channel RCA audio output, catering to comprehensive audio-visual surveillance needs.
High-Resolution Recording and Live View Display:
Supporting recording resolutions up to 8MP, the network video recorder ensures high-quality video capture. It offers synchronous local playback for 4, 8, or 16 channels depending on the model, enhancing review capabilities. Live view display options range from single to 16-channel views, with corridor mode screens providing flexible monitoring configurations.
Intelligent Video Content Analysis (VCA):
Equipped with advanced VCA detection by IPC, the camera nvr supports face detection, intrusion detection, cross-line detection, and more. Smart search functions facilitate efficient behavior analysis. With total 4-channel smart IPC features, including face detection and ultra motion detection (UMD), this poe nvr enhances proactive security measures.

Reliable Alarm and Alert Functions:
The camera nvr includes various alarm types such as auto tracking, motion detection, tampering, human body detection, video loss, and audio detection. Alert alarms cover IP conflicts, network disconnections, disk issues, illegal access, and more. These features network video recorder ensure comprehensive security monitoring and prompt responses to incidents.
Multi-Language GUI Support:
The user interface of the unv nvr supports 21 languages, including English, Chinese, Spanish, French, German, and Arabic, making it accessible to a global audience. This multi-language support enhances usability for diverse user groups.
Robust Storage and External Interface Options:
The camera nvr supports one SATA interface with up to 10TB capacity per HDD. It features one RJ45 10M/100M self-adaptive Ethernet interface and two USB2.0 ports for external connectivity. Although RS485 and RS232 interfaces are not included, the available ports ensure sufficient connectivity options for most users.
Efficient Power and PoE Capabilities:
The NVR operates efficiently with a power consumption of ≤9W (without HDD). It includes poe nvr interfaces, supporting IEEE 802.3at and IEEE 802.3af standards. Each port can deliver up to 30W, with total power capacities varying by model, ensuring reliable power delivery to connected devices.
Durable Design and Certification:
With a working temperature range of -10°C to 55°C and humidity tolerance up to 90% (non-condensing), the NVR is built for durability. It is lightweight and compact, with dimensions tailored to fit various installation environments. Certified by CE, FCC, UL, and RoHS, the UNV 301-16LS3-P8 Series meets stringent quality and safety standards, making it a reliable choice for security solutions.
