Tiandy TC-R3220 H.265 2HDD 20ch PoE NVR

Tiandy TC-R3220 - Description

H.265 2HDD 20ch PoE NVR

The Tiandy TC-R3220 H.265 20-Channel NVR is a high-performance network video recorder designed for advanced security and surveillance systems. With its robust features, this device offers efficient video surveillance system recording, playback, and management, making it an ideal choice for both small and large-scale installations.

High Capacity and Multi-channel Support:

The Tiandy TC-R3220 NVR supports up to 20 IP camera channels, providing flexibility to connect multiple cameras simultaneously. It can handle an incoming bandwidth of 160Mbps and an outgoing bandwidth of 64Mbps, allowing it to accommodate high-definition video surveillance system with ease. With compatibility for resolutions up to 8MP, this NVR ensures crystal-clear image quality, which is essential for detailed monitoring in high-security environments.

Advanced Video Compression Technology:

This video surveillance system utilizes the S+265 and H.265 video compression standards, which significantly reduce the storage space required for video footage without compromising image quality. The S+265 compression is particularly effective, reducing storage usage by up to 75% compared to traditional H.264 compression. This not only saves on storage costs but also makes long-term video retention more manageable.

Seamless Video Playback and Decoding:

The nvr camera supports synchronous playback for up to 16 channels, making it easy to review footage from multiple cameras at once. Its decoding capabilities can handle resolutions up to 8MP at 30fps for two channels or 1080P at 30fps for up to eight channels. This level of performance ensures smooth playback, whether for real-time monitoring or post-event analysis.

4K HDMI and VGA Output for High-definition Display:

The device offers both HDMI and VGA outputs, with the HDMI supporting resolutions up to 4K (3840x2160) at 30Hz, ensuring that users can view footage in stunning detail. Whether you're using a high-end 4K monitor or a standard display, the Tiandy NVR provides a versatile viewing experience for different setups.

Comprehensive Network and Protocol Support:

With a self-adaptive 10/100/1000 Mbps Ethernet port, the nvr recorder is built to handle a variety of network configurations. It supports a wide range of network protocols, including IPv4, IPv6, DDNS, RTSP, TCP/IP, UPnP, HTTPS, and SSL, ensuring compatibility with different network environments and third-party devices. This versatility makes the NVR suitable for both private and public network infrastructures.

PoE Support for Simplified Installation:

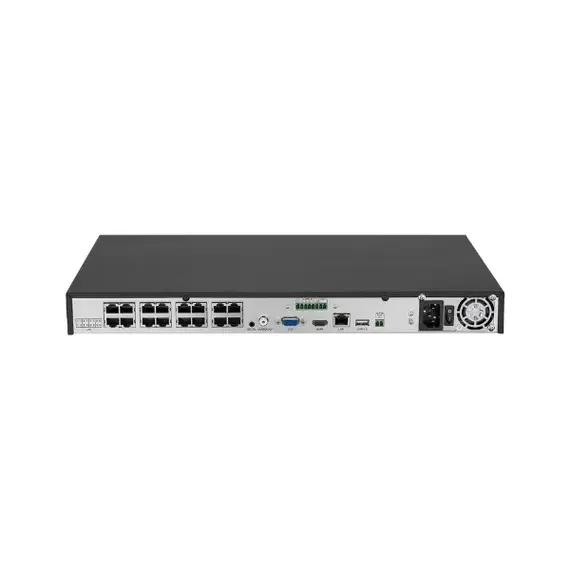

The nvr recorder comes with 16 RJ45 PoE ports, each capable of delivering up to 30W of power, with a total PoE budget of 200W. This eliminates the need for additional power supplies for connected IP cameras, simplifying installation and reducing overall costs. The device supports the IEEE 802.3af/at standard, ensuring compatibility with a wide range of PoE-enabled cameras.

Intelligent Analytics and Alarm Functions:

Equipped with advanced AI features, the nvr recorder supports smart analytics such as tripwire detection, perimeter protection, face detection, and people counting. These intelligent functions enhance the security system’s ability to detect and respond to potential threats in real time. The device also features various alarm inputs and outputs, providing comprehensive coverage for motion detection, video loss, IP conflicts, and more.

Robust Build and Efficient Power Management:

Designed for durability, the nvr camera can operate in temperatures ranging from -10°C to 55°C. It consumes less than 10W of power (without PoE or HDD), making it an energy-efficient option for security installations. The NVR also includes multiple language support, catering to a global user base with options in English, Spanish, French, German, and many more.

Flexible Storage, Network, and System Compatibility:

Equipped with 2 SATA interfaces, the NVR supports up to 10TB per HDD for long-term recording. It is fully compatible with ONVIF (Profile S/T/G) and RTSP, ensuring seamless integration with third-party IP cameras. Mobile access via Android and iOS, multi-language UI (including Arabic), and rich alarm and backup options make it a versatile and user-friendly solution.
