​​Tiandy TC-R3104​ H.265 1HDD 4ch PSE NVR

Tiandy TC-R3104

H.265 1HDD 4ch PSE NVR

A Compact, High-Performance Solution for Security Surveillance:

Tiandy TC-R3104 H.265 4-channel NVR (Network Video Recorder) is a compact, high-performance surveillance system designed to meet the needs of modern security environments. With its ability to support up to 4 IP camera connections and advanced video compression formats, it provides an efficient solution for both home and business security setups. In this article, we will explore the key features of the tiandy nvr , focusing on its bandwidth capabilities, video performance, storage options, and intelligent analytics.

4-Channel IP Camera Access and Bandwidth Efficiency:

The Tiandy TC-R3104 NVR supports up to four IP camera connections, making it ideal for small to medium-sized surveillance networks. Its bandwidth capability allows for an incoming bandwidth of 60Mbps and an outgoing bandwidth of 40Mbps, ensuring smooth and uninterrupted video streaming and recording. This bandwidth allocation is sufficient to handle high-definition video feeds, even in demanding surveillance scenarios.

Advanced Video Compression for Storage Optimization:

One of the standout features of the tiandy nvr is its support for multiple video compression formats, including S+265, H.265, S+264, and H.264. The S+265 compression technology reduces storage space requirements by up to 75% compared to older formats, allowing users to store more video footage on their hard drives without sacrificing quality. This is particularly beneficial for extended surveillance periods and helps reduce the cost of additional storage devices.

High-Resolution Decoding and Playback Capabilities:

The surveillance security boasts impressive decoding capabilities, allowing it to handle high-resolution video feeds efficiently. It can decode 5MP video at 30 frames per second (fps), 1080P video at 30fps for two channels, or 720P video at 30fps for up to four channels. Additionally, it supports 4-channel synchronous playback, enabling users to review footage from multiple cameras simultaneously. This feature is particularly useful for investigating incidents and ensures that all camera feeds can be monitored in real-time or during playback.

Versatile Connectivity and PoE Support:

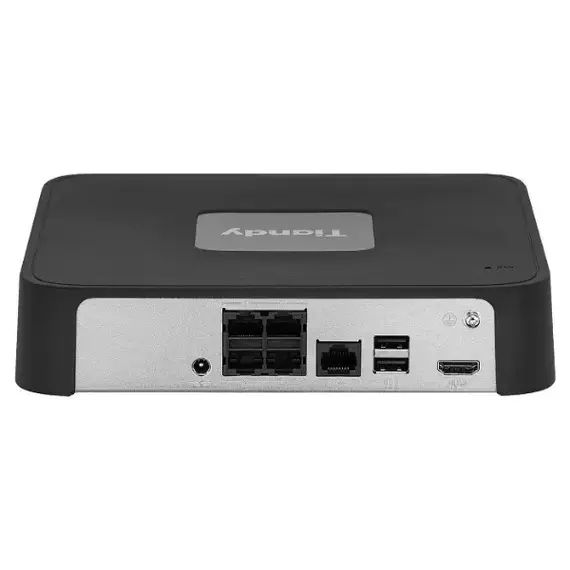

The surveillance security is equipped with an HDMI output that supports resolutions of up to 1080P, ensuring clear video display on connected monitors. The video recorder also includes a single RJ-45 10/100 Mbps Ethernet port and four PoE (Power over Ethernet) ports, each offering 28W of power. This built-in PoE functionality simplifies installation by allowing IP cameras to receive both power and data through a single cable, reducing the need for additional wiring and power sources.

ONVIF and RTSP Compatibility for Third-Party Integration:

To enhance its flexibility, the TC-R3104 supports ONVIF and RTSP protocols, enabling seamless integration with third-party IP cameras. This means users are not limited to using only Tiandy cameras, allowing for greater customization in building a surveillance system that fits specific needs. The wide range of supported resolutions, from 5MP to QCIF, further ensures that the system can adapt to various camera types and video quality preferences.

Intelligent Analytics for Enhanced Security:

The Tiandy nvr includes intelligent analytics powered by the connected IP cameras, such as smart motion detection. This feature helps in identifying and alerting users of suspicious activities in real-time, enhancing the overall effectiveness of the surveillance system. Additionally, the system supports various alarms for motion detection, video loss, IP conflict, and other exceptions, ensuring users are always informed of potential issues.

Large Storage Capacity for Extended Recording:

When it comes to storage, the TC-R3104 supports a single HDD with a capacity of up to 6TB. This ample storage space allows for long-term video recording, even when using high-resolution video feeds. Additionally, the system provides flexible recording options, including alarm recording and schedule recording, along with multi-channel playback for efficient video management.

User-Friendly Interface and Mobile Access:

The video recorder offers a user-friendly interface with multiple language options, including English, Spanish, French, and more, making it accessible to a global user base. It is compatible with Android and iOS devices, enabling remote access via mobile apps, so users can monitor their security systems from anywhere. The system also supports cloud upgrades, ensuring the firmware is always up to date with the latest security features.

Compact Design and Efficient Power Usage:

Weighing just 0.4kg and with dimensions of 200x200x43mm, the Tiandy TC-R3104 is compact and easy to install in various environments. It operates within a temperature range of -10°C to +55°C, making it suitable for a wide range of operating conditions. Additionally, with a power consumption of less than 10W (excluding the HDD and PoE), the video recorder is energy-efficient and cost-effective to run.

The surveillance security H.265 4-channel NVR is a versatile, efficient, and easy-to-use security solution designed for both residential and commercial applications. Withats support for multiple camera connections, advanced video compression technologies, intelligent analytics, and extensive storage capabilities, it provides a comprehensive and scalable surveillance system. Whether you're looking to secure a small business or monitor a home, the surveillance networks offers an excellent balance of performance, ease of use, and reliability.
