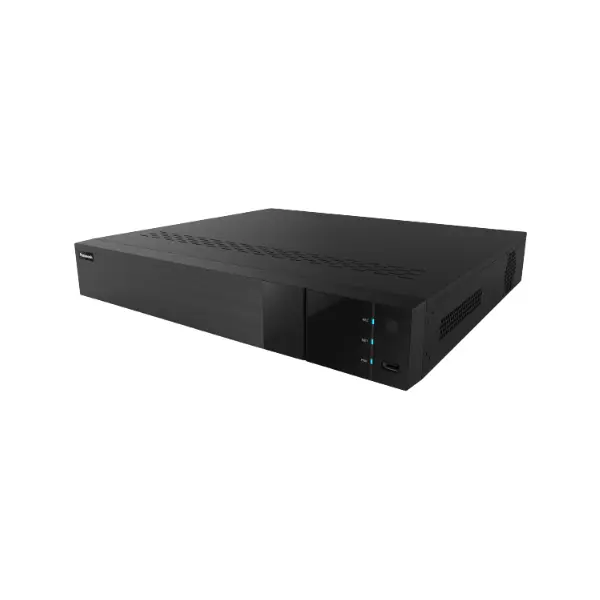

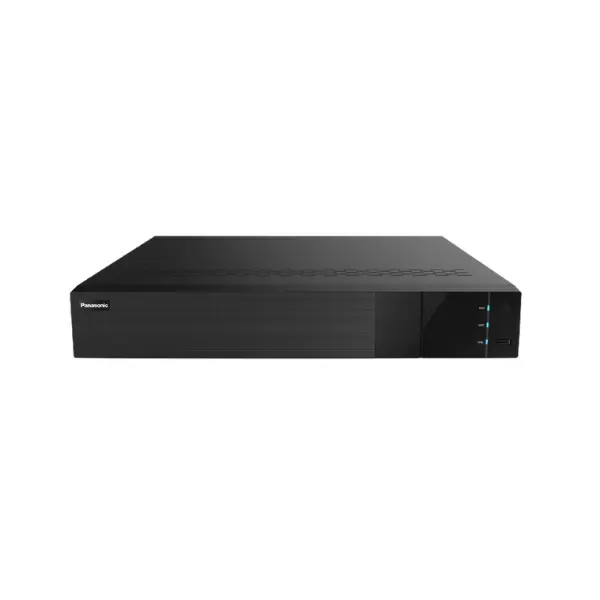

Panasonic PM-EN8CH 8PoE ports ​8CH Network Video Recorder

Panasonic PM-EN8CH - Description

8PoE ports 8CH Network Video Recorder

High-Performance 8-Channel Video Recording:

The Panasonic PM-EN8CH Network Video Recorder (NVR) is designed for reliable and efficient surveillance, supporting up to 8 IP camera inputs. With advanced SoC technology, it ensures smooth, high-definition recording for every channel. Supporting resolutions from 6MP to CIF, this NVR delivers sharp and detailed footage, making it ideal for diverse applications including homes, shops, and offices. Whether you need to monitor small spaces or larger premises, the PM-EN8CH offers flexible recording capabilities that meet modern security demands.

Advanced Compression and Storage Efficiency:

To optimize storage without compromising quality, the Panasonic NVR supports multiple video compression formats, including H.265S, H.265+, H.265, and H.264. This ensures reduced bandwidth consumption while maintaining clear, high-resolution video output. The system includes one SATA interface supporting up to 10TB storage capacity, allowing long-term recording and easy data management. Combined with smart search features such as time slice, event, and tag search, users can quickly retrieve important footage whenever needed.

Clear Playback and Multi-Channel Monitoring:

The PM-EN8CH supports simultaneous playback of up to 8 channels, enabling users to review multiple camera feeds at once. It delivers true 1080p high-resolution output through both HDMI and VGA interfaces, ensuring compatibility with various display setups. The multi-screen display function allows viewing modes of 1/4/6/8/9 windows, giving users flexibility in monitoring environments. With powerful decoding capabilities, the NVR can display 1 channel at 6MP or 4 channels at 1080p, providing reliable live view and playback performance.

Smart Network and Alarm Integration:

Equipped with a wide range of network protocols such as TCP/IP, HTTPS, DDNS, RTSP, NTP, SNMP, and ONVIF, the Panasonic NVR ensures seamless connectivity with third-party devices. It supports up to 64 remote client connections, making it suitable for multi-user access. The alarm system offers multiple modes, including manual, motion detection, sensor triggers, and smart event detection, with actions like recording, snapshots, and email notifications for enhanced security.

Built-In PoE and Mobile Monitoring:

The PM-EN8CH comes with 8 built-in PoE ports compliant with IEEE802.3AF standards, delivering up to 72W power output to connected IP cameras. This simplifies installation by reducing the need for additional power supplies. For remote access, the Panasonic CCTV App (available on iOS and Android) allows users to monitor live feeds, playback recordings, and manage their security system from anywhere, ensuring convenience and peace of mind.

Compact Design and Reliable Build Quality:

Measuring just 255×222×42 mm, this NVR has a compact design suitable for desktops or rack installations. It is energy-efficient with power consumption ≤50W (without HDD/PoE) and operates within temperatures of -10°C to 50°C. Certified with CE, RoHS, and IEC safety standards, the Panasonic PM-EN8CH guarantees durability, environmental compliance, and dependable performance, making it a trusted choice for professional surveillance systems.
