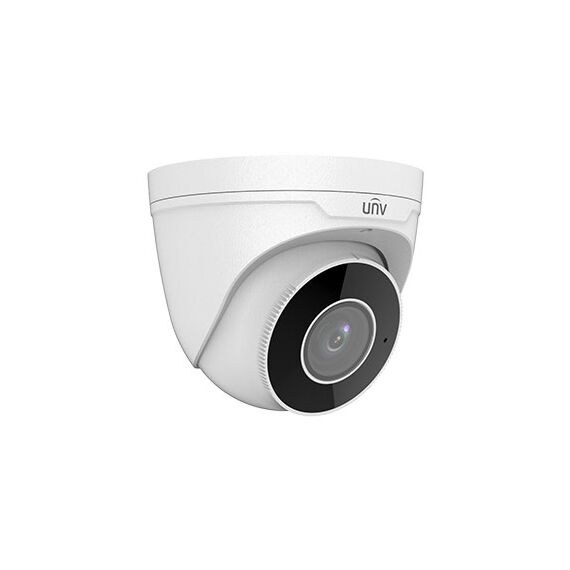

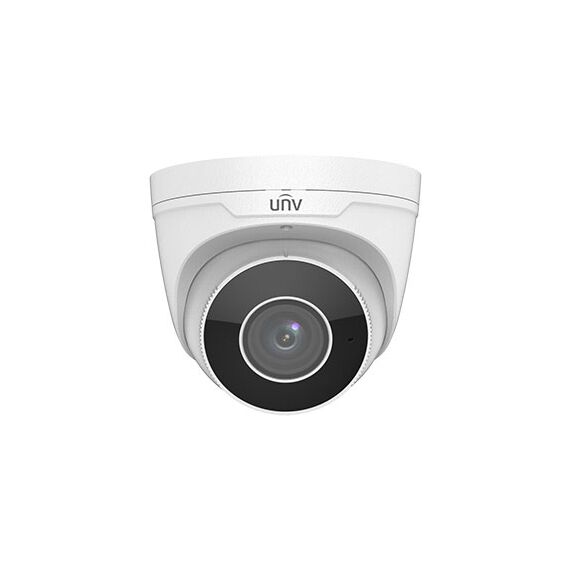

UNV IPC3632LB-ADZK-G 2MP HD IR VF Eyeball IP Camera

IPC3632LB-ADZK-G
  • Brand: UNV
  • Model: IPC3632LB-ADZK-G
  • Sensor: 1/2.7" Progressive Scan CMOS
  • Maximum Resolution: 2MP
  • Frame Rate: 30fps
  • Lens: 2.8–12mm Motorized Varifocal (AF)
  • Day&Night: IR-cut filter with auto switch
  • Angle Adjustment: Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
  • IR Distance: Up to 40m
  • Audio: Built-in Microphone
  • Storage: MicroSD Card Support Up to 128GB
Get a quote
Call Us
Chat us on Whatsapp
Payment Methods
Brand:
UNV
Part Number
IPC3632LB-ADZK-G
Camera Technology
IP CAMERA
Warranty
1 Year
Indoor / outdoor
INDOOR
Camera
Frame Rate
30fps
Night Vision
Up to 40m
Resolution
2MP
Sensor
1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm)
2.8
DORI Distance Detect (m)
42.0
DORI Distance Identify (m)
4.2
DORI Distance Observe (m)
16.8
DORI Distance Recognize (m)
8.4
Angle of View (H)
108.05°~ 32.59°
Angle of View (O)
111.91°~36.53°
Angle of View (V)
56.81°~ 18.36°
Adjustment angle
Pan: 3° ~ 360°
Shutter
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
Digital noise reduction
2D/3D DNR
IR Range
Up to 40m (131ft) IR range
Wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog
WDR
120dB
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate
128 Kbps~6144 kbps
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Motion Detection
Up to 4 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Supported
Flip
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping
N/A
HLC
Supported
BLC
Supported
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
Client
EZStation, EZView, EZLive
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Audio
Audio Compression
G.711
Suppression
Supported
Sampling Rate
8KHZ
Interface
Built-in Mic
Supported
Network
10/100M Base-TX Ethernet
Storage
Edge Storage
Micro SD, up to 128 GB
Network Storage
ANR,NAS(NFS)
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption
Max 8.0W
Dimensions (Ø x H)
Φ129 x 110mm (Ø5.1” x 4.3”)
Net Weight
0.66kg (1.46lb)
Material
Metal
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection
6KV
Ingress Protection
IP67
Reset Button
Supported

UNV IPC3632LB-ADZK-G - Description

2MP HD IR VF Eyeball IP Camera

High-Quality 2MP Surveillance Performance:

The UNV IPC3632LB-ADZK-G 2MP HD IR VF Eyeball IP Camera is designed to deliver reliable and detailed video monitoring for homes, offices, warehouses, and commercial spaces. Equipped with a 1/2.7" CMOS sensor, the camera captures clear Full HD 1080p video at up to 30fps, ensuring smooth and detailed footage. With advanced compression technologies including Ultra 265, H.265, H.264, and MJPEG, the camera optimizes bandwidth usage while maintaining high image quality. This makes it ideal for modern surveillance systems that require efficient storage and stable performance.

UNV IPC3632LB-ADZK-G

Motorized Varifocal Lens for Flexible Coverage:

This network camera features a motorized 2.8–12mm varifocal lens with autofocus, allowing users to easily adjust the field of view according to surveillance needs. The wide viewing angle makes it suitable for monitoring large areas, while the zoom capability enables focused coverage on specific points of interest. Additionally, the camera supports 9:16 Corridor Mode, which is perfect for monitoring hallways, aisles, and narrow spaces where vertical viewing provides better coverage.

Advanced Image Enhancement and Night Vision:

The IPC3632LB-ADZK-G includes 120dB True WDR technology, ensuring clear images even in challenging lighting conditions such as strong backlight or bright environments. With Smart IR technology and an infrared range of up to 40 meters, the camera provides reliable night surveillance with balanced brightness and detail. Digital Noise Reduction (2D/3D DNR), defog functionality, and advanced image processing help maintain image clarity in low-light or foggy environments.

Durable Design and Smart Security Features:

Built with IP67 weatherproof protection, this eyeball camera is suitable for both indoor and outdoor installations. The 3-axis adjustment allows flexible positioning for optimal viewing angles. It also includes a built-in microphone for audio recording, supports microSD cards up to 128GB for local storage, and uses PoE (Power over Ethernet) for simplified installation. These features make it a dependable choice for professional security systems.

UNV Camera

View More of IP Camera
