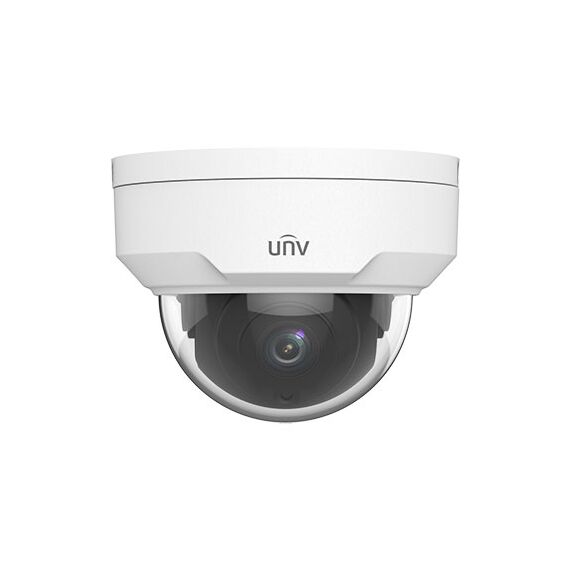

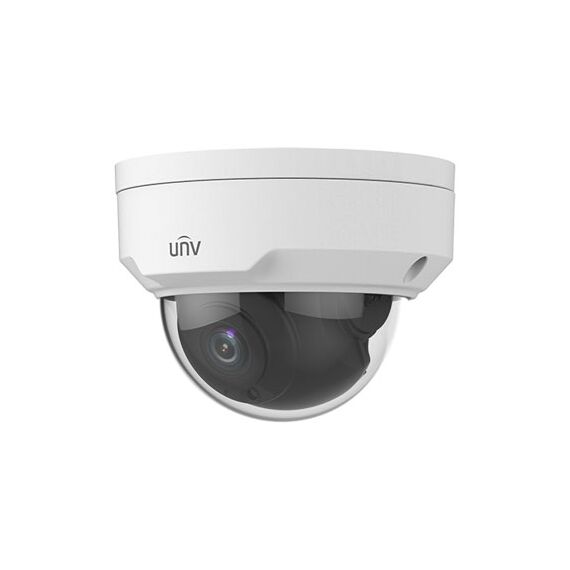

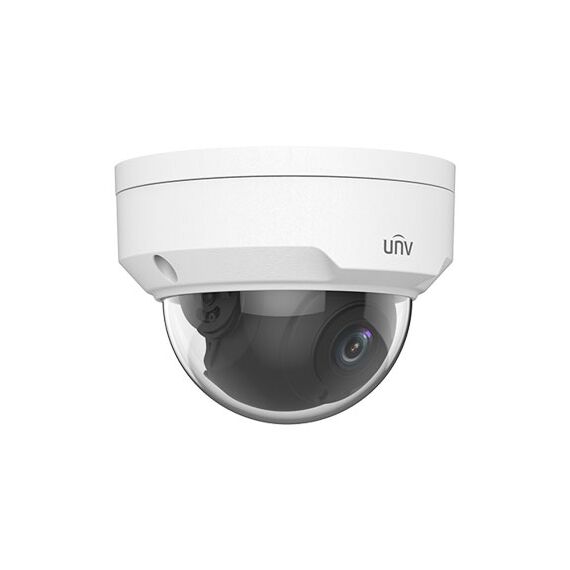

UNV IPC322LB-SF40-A 2MP 4mm Fixed IR Dome IP Camera

IPC322LB-SF40-A
  • Brand: UNV
  • Model: IPC322LB-SF40-A
  • Sensor: 1/2.8" progressive scan CMOS
  • Maximum Resolution: 2MP (1920×1080)
  • Frame Rate: 30 fps
  • Lens: 4mm
  • Day&Night: IR-cut filter with auto switch (ICR)
  • Angle Adjustment: Pan: 3° ~ 360°, Tilt: 0° ~ 75°
  • Field of View: 87.5° (H), 46.3° (V)
  • IR Distance: Up to 30m
Get a quote
Call Us
Chat us on Whatsapp
Payment Methods
Brand:
UNV
Part Number
IPC322LB-SF40-A
Camera Technology
IP CAMERA
Warranty
1 Year
Indoor / outdoor
INDOOR
Camera
Frame Rate
up to 30fps
Night Vision
Up to 30m
Resolution
2MP (1920×1080)
Sensor
1/2.8", progressive scan, 2.0 megapixel, CMOS
Lens
4 mm
DORI Distance Lens (mm)
4.0
DORI Distance Detect (m)
62.1
DORI Distance Identify (m)
6.2
DORI Distance Observe (m)
24.8
DORI Distance Recognize (m)
12.4
Angle of View (H)
87.5° (H), 46.3° (V)
Adjustment angle
Pan: 3° ~ 360°, Tilt: 0° ~ 75°
Shutter
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
Digital noise reduction
2D/3D DNR
IR Range
Up to 30m (98ft) IR range
Wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog
WDR
DWDR
Video
Video Compression
Ultra 265, H.265, H.264
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Motion Detection
Up to 4 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Supported
Flip
Normal/Vertical/Horizontal/180°
Dewarping
N/A
HLC
Supported
BLC
Supported
Network
Protocols
IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration
API
Client
EZStation, EZView, EZLive
Web Browser
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network
10/100M Base-TX Ethernet
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption
Max 5.0W
Dimensions (Ø x H)
Φ109 x 81mm (Ø4.3” x 3.2”)
Net Weight
0.35kg (0.77lb)
Material
Metal + Plastic
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection
4KV
Ingress Protection
IP67
Vandal Resistant
IK10
Reset Button
N/A

UNV IPC322LB-SF40-A - Description

2MP 4mm Fixed IR Dome IP Camera

Professional 2MP Dome Surveillance Camera:

The IPC322LB-SF40-A 2MP Fixed IR Dome IP Camera from Uniview is designed to deliver reliable, high-quality video monitoring for both indoor and outdoor security applications. Equipped with a 1/2.8" progressive scan CMOS sensor, the camera captures clear Full HD 1080p footage at up to 30 frames per second. This ensures smooth video performance, making it ideal for offices, retail stores, residential buildings, warehouses, and parking areas. Its 4mm fixed lens provides a balanced viewing angle that covers wide monitoring zones while maintaining image clarity.

UNV IPC322LB-SF40-A

Clear Imaging and Advanced Video Compression:

This camera offers advanced video technologies that improve image quality and optimize storage usage. It supports Ultra 265, H.265, and H.264 compression formats, which significantly reduce bandwidth consumption without compromising video quality. With built-in digital noise reduction (2D/3D DNR) and day/night functionality, the camera ensures consistent performance in different lighting conditions. The DWDR feature enhances visibility in scenes with uneven lighting, allowing important details to remain visible.

UNV Camera

Reliable Night Vision and Wide Coverage:

The IPC322LB-SF40-A is equipped with Smart IR technology that provides up to 30 meters of infrared illumination. This allows the camera to capture clear footage even in complete darkness while preventing overexposure of objects close to the lens. The 4mm lens offers an 87.5° horizontal field of view, making it suitable for monitoring entrances, corridors, and open areas. With DORI distances that support detection up to 62.1 meters, the camera helps improve situational awareness and security monitoring.

Durable Design for Indoor and Outdoor Security:

Built to withstand harsh environments, this dome camera features IP67 weatherproof protection and IK10 vandal resistance. These ratings ensure the device remains operational in challenging weather conditions or high-risk areas. The camera also supports PoE (Power over Ethernet), simplifying installation by allowing both power and data transmission through a single cable.

IP Camera
