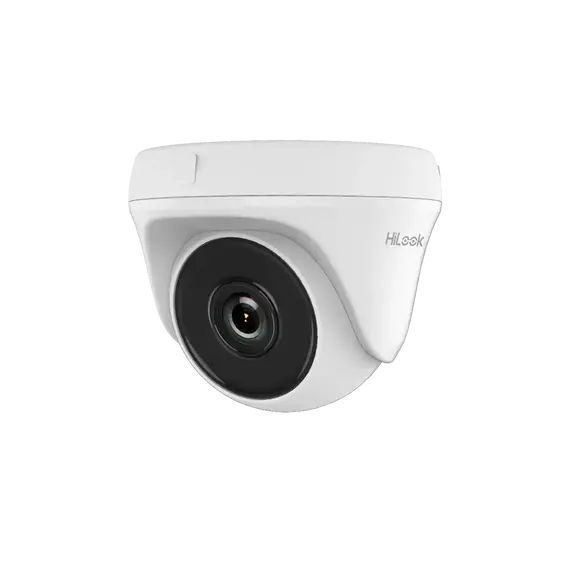

Hilook THC-T150P

5 MP Indoor Fixed Turret Camera

High quality imaging with 5 MP, 2560 × 1944 resolution

2.8 mm and 3.6 mm fixed focal lens

Up to 20 m IR distance for bright night imaging

One port for four switchable signals (TVI/AHD/CVI/CVBS)

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2560 (H) × 1944 (V)

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm and 3.6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°

Lens Mount

M12


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness, Sharpness, Mirror, Smart IR, AGC

Frame Rate

TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps

AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps

CVI: 4 M @ 30 fps, 4 M @ 25 fps

CVBS: PAL/NTSC

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC, HLC

White Balance

ATW/MANUAL

Interface

Video Output

1 HD analog output

General

Material

Plastic

Dimension

Ø 85.4 mm × 76.12 mm (Ø 3.38" × 2.67")

Weight

Approx. 120 g (0.26 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ±25%

Consumption

Max. 4.3 W

IR Range

Up to 20 m
