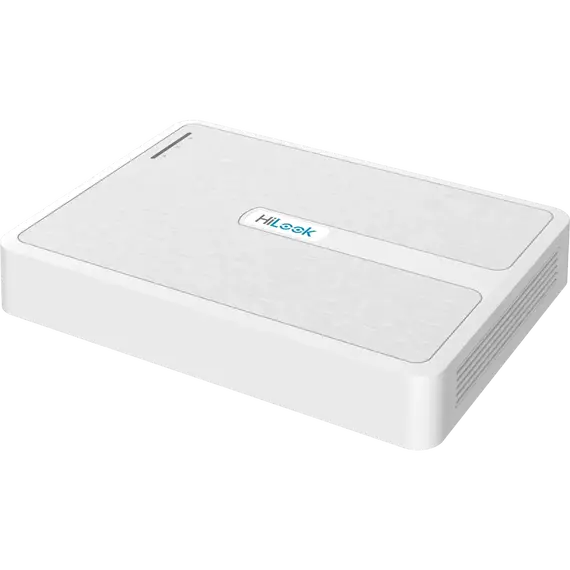

HiLook DVR-116G-K1 16 CH 1080P Lite Mini 1U H.265 DVR

HiLook DVR-116G-K1 - Description

16 CH 1080P Lite Mini 1U H.265 DVR

Advanced 16-Channel 1080P Lite DVR with AI Motion Detection:

The HiLook DVR-116G-K1 is a powerful 16-channel 1080P Lite Mini 1U DVR designed for reliable and intelligent video surveillance. Built with deep learning-based Motion Detection 2.0, this DVR accurately classifies human and vehicle targets, significantly reducing false alarms caused by environmental factors such as rain, shadows, lights, or moving leaves. It is an ideal solution for homes, retail stores, offices, warehouses, and small-to-medium security installations.

AI-Powered Motion Detection 2.0 for Smarter Security:

Equipped with Motion Detection 2.0, the HiLook DVR-116G-K1 uses deep learning algorithms enabled by default on all analog channels. The system intelligently distinguishes between humans and vehicles, allowing users to focus only on real security threats. Quick search by object or event type improves investigation efficiency and saves time when reviewing recorded footage, making surveillance management more effective and user-friendly.

Multi-Format Video Input with Flexible Camera Support:

This DVR supports HDTVI, AHD, HDCVI, CVBS, and IP cameras, offering excellent compatibility with existing camera systems. It provides 16 analog video inputs via BNC interfaces and supports up to 18 IP cameras (including analog + IP hybrid mode), with IP camera resolutions up to 5 MP. This flexibility makes it easy to expand or upgrade your surveillance system without replacing existing cameras.

Efficient H.265 Pro+ Compression and Smooth Recording:

The H.265 Pro+, H.265 Pro, and H.265 compression technologies significantly reduce storage and bandwidth consumption while maintaining high image quality. The DVR supports 1080p Lite recording at 15 fps, ensuring smooth video capture suitable for most security applications. Dual-stream capability enables efficient remote viewing without affecting local recording performance.

High-Quality Audio, Playback, and Display Output:

The HiLook DVR-116G-K1 supports audio over coaxial cable on all 16 channels, along with two-way audio via RCA. It offers 16-channel synchronous playback, HDMI and VGA simultaneous output up to Full HD 1080p, and clear audio encoding using G.711u. These features ensure complete situational awareness with both video and audio evidence.

Reliable Network Access and Compact Design:

With a 96 Mbps total bandwidth, support for up to 128 remote connections, and standard network protocols such as HTTPS, DDNS, and SMTP, this DVR enables secure and stable remote monitoring. Its compact Mini 1U design, low power consumption (≤7 W without HDD), and support for up to 10 TB SATA storage make it a cost-effective, space-saving, and dependable surveillance solution.
