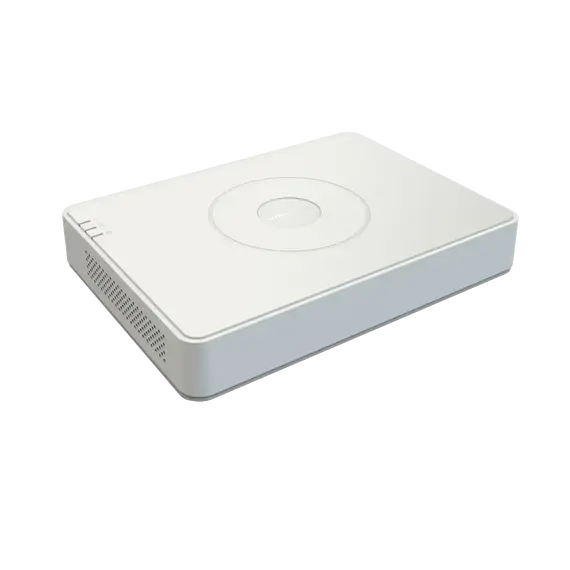

Hikvision iDS-7116HQHI-M1/S 16-ch 1080p Mini 1U H.265 AcuSense DVR

Hikvision iDS-7116HQHI-M1/S - Description

16-ch 1080p Mini 1U H.265 AcuSense DVR

Advanced AcuSense DVR with Deep Learning Technology:

The Hikvision iDS-7116HQHI-M1/S is a powerful 16-channel 1080p Mini 1U DVR designed for modern video surveillance systems. Powered by Hikvision’s AcuSense technology, this DVR uses deep learning algorithms to accurately classify human and vehicle targets, significantly reducing false alarms caused by irrelevant motion such as rain, leaves, or light changes. This makes it an ideal solution for both commercial and residential security applications that require high accuracy and efficiency.

Intelligent Motion Detection and Perimeter Protection:

With Motion Detection 2.0, the DVR enables intelligent event filtering on all analog channels by default. It supports quick search by object or event type, allowing users to retrieve critical footage faster. Additionally, deep learning-based perimeter protection supports line crossing and intrusion detection on up to 4 channels, ensuring reliable monitoring of restricted or sensitive areas with minimal false alerts.

Flexible Video Input and High-Resolution Support:

The iDS-7116HQHI-M1/S supports multiple video formats, including HDTVI, AHD, HDCVI, CVBS, and IP, offering excellent flexibility for system upgrades. It allows up to 16 analog channels and can be expanded to 24 IP cameras in enhanced IP mode, with resolutions up to 6 MP. This hybrid capability makes it future-proof and suitable for mixed camera environments.

High-Efficiency Video Compression and Recording:

Equipped with H.265 Pro+ / H.265 Pro / H.265 compression, the DVR dramatically reduces bandwidth and storage requirements without compromising image quality. It supports encoding up to 3K / 5MP Lite at 12 fps, ensuring smooth and efficient recording. Dual-stream support allows optimized viewing for both local and remote monitoring.

Professional Audio, Display, and Network Performance:

The DVR supports audio over coaxial cable for up to 16 channels, along with two-way audio via RCA. Video output includes 4K HDMI and 1080p VGA, delivering sharp and clear display options. With up to 128 Mbps total bandwidth, Gigabit Ethernet, and support for protocols such as ONVIF, Hik-Connect, HTTPS, and NFS, it ensures stable and secure remote access.

Compact Design and Reliable Operation:

Designed in a Mini 1U form factor, the DVR is compact yet robust, making it easy to install in space-limited environments. It supports one SATA hard drive up to 10 TB, operates with low power consumption (≤24W), and performs reliably in harsh conditions with a working temperature range of -10°C to +55°C.
