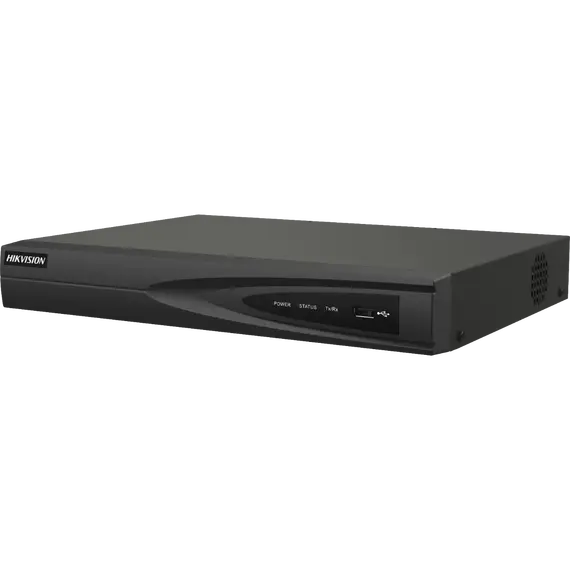

Hikvision DS-7604NI-K1/4P 4-ch 1U 4 PoE 4K NVR

Hikvision DS-7604NI-K1/4P - Description

4-ch 1U 4 PoE 4K NVR

Hikvision DS-7604NI-K1/4P 4K PoE Network Video Recorder Overview:

The Hikvision DS-7604NI-K1/4P is a powerful 4-channel 4K Network Video Recorder (NVR) designed for small to medium surveillance systems that demand high resolution, reliability, and intelligent analytics. With built-in PoE ports, this NVR allows direct connection and power supply to IP cameras, simplifying installation while reducing cabling costs. Its compact 1U design makes it ideal for homes, offices, retail stores, and small commercial environments.

Advanced 4K Recording and Decoding Performance:

This NVR supports up to 4 IP cameras with an incoming bandwidth of 40 Mbps, ensuring smooth recording of high-definition video streams. It delivers strong decoding capabilities, including 1-channel at 8 MP, 3-channels at 4 MP, or 6-channels at 1080p, all at 30 fps. With support for H.265+, H.265, H.264+, and H.264, the system significantly reduces storage and bandwidth consumption without compromising image quality.

Intelligent Motion Detection 2.0 with Human & Vehicle Analysis:

Equipped with Motion Detection 2.0, the DS-7604NI-K1/4P enhances security accuracy by intelligently distinguishing humans and vehicles from other moving objects. This feature minimizes false alarms caused by rain, shadows, or animals, making it ideal for entrances, parking areas, and restricted zones. The system supports up to 4 channels of smart analysis, improving event detection and response efficiency.

Built-in PoE and Flexible Network Connectivity:

The NVR includes 4 PoE ports (IEEE 802.3af/at) with a total power budget of up to 50 W, allowing cameras to be connected using a single Ethernet cable for both power and data. It also supports a wide range of network protocols such as RTSP, HTTPS, IPv6, DDNS, and ISUP, enabling seamless remote access from mobile apps and web browsers. Up to 32 remote connections can be supported simultaneously.

High-Quality Video Output and Audio Support:

For monitoring and playback, the DS-7604NI-K1/4P offers simultaneous HDMI and VGA output, with HDMI supporting true 4K resolution at 30 Hz. Audio features include two-way audio via RCA, making it suitable for interactive surveillance scenarios. The system supports 4-channel synchronous playback, allowing efficient review of recorded footage.

Reliable Storage and Compact Professional Design:

The NVR supports one SATA hard drive up to 8 TB, providing ample storage for long-term recording. With low power consumption, wide operating temperature tolerance, and CE/FCC certifications, the Hikvision DS-7604NI-K1/4P is a reliable, professional-grade solution for modern IP surveillance systems.
